Features: • 2MP, 1/2.8” CMOS image sensor, low illuminance, high image definition • Outputs max. 2MP (1920 Ч 1080) @25/30 fps • H.265 codec, high compression rate, ultra-low bit rate • Built-in IR LED, max. IR distance: 30 m • ROI, SMART H.264/H.265, flexible coding, applicable to various bandwidth and storage environments • Rotation mode, WDR, 3D DNR, HLC, BLC, digital watermarking, applicable to various monitoring scenes • Intelligent detection: Intrusion, tripwire • Abnormality detection: Motion detection, video tampering, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, voltage detection • Supports max. 256 GB Micro SD card, built-in Mic • 12V DC/PoE power support • IP67 protection
|
Standard: |
TCP/IP |
|
Sensor: |
1/2.8 " Progressive Scan CMOS |
|
Scanning system: |
Progressive |
|
Matrix size: |
2.1 Mpx |
|
Resolution: |
1920 x
1080 - 1080p , |
|
Lens: |
2.8 mm / 3.6 mm |
|
View angle: |
2.8mm - 106 ° / 3.6mm - 87 ° |
|
Range of IR illumination: |
30 m |
|
Memory card slot: |
Micro SD memory cards up to 256GB support (possible local recording) |
|
Image compression method: |
H.265+ / H.265 / H.264+ / H.264 / MJPEG |
|
Alarm inputs / outputs: |
No |
|
Audio: |
· Microphone built-in · Audio detection |
|
Bitrate: |
32
... 6144 kbps - H.264 |
|
Main stream frame rate: |
25 fps @ 1080p |
|
Network interface: |
10/100 Base-T (RJ-45) |
|
Network protocols: |
IPv4/IPv6, HTTP, HTTPS, TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, QoS, UPnP, NTP, Multicast, ICMP, IGMP, NFS, PPPoE, IEEE 802.1x Bonjour |
|
WEB Server: |
Built-in |
|
Max. number of on-line users: |
20 |
|
ONVIF: |
18.06 |
|
Main features: |
· WDR - 120 dB - Wide Dynamic Range · 3D-DNR - Digital Noise Reduction · ROI - improve the quality of selected parts of image · BLC/HLC - Back Light / High Light Compensation · Possibility to change the resolution, quality and bit rate · Motion Detection · Configurable Privacy Zones · Mirror - Mirror image · Audio detection · IVS analysis : intrusion, crossing the line (tripwire) |
|
Power supply: |
· PoE (802.3af), · 12 V DC / 550 mA |
|
Power consumption: |
< 6.5 W |
|
Housing: |
Dome - Metal + Plastic |
|
Color: |
White |
|
"Index of Protection": |
IP67 |
|
Operation temp: |
-40 °C ... 60 °C |
|
Weight: |
0.46 kg |
|

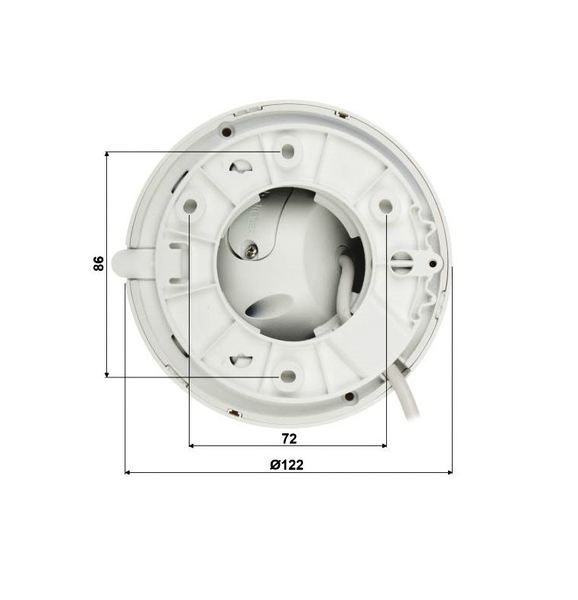

Dimensions: |
Ø 122 x 101 mm |
