• Тип датчика: PIR(Пассивный инфракрасный датчик) • Дальность обнаружения: 18м • Угол обзора: 90° • Режим PET: 27кг • Кронштейн: Не входит в комплект
|

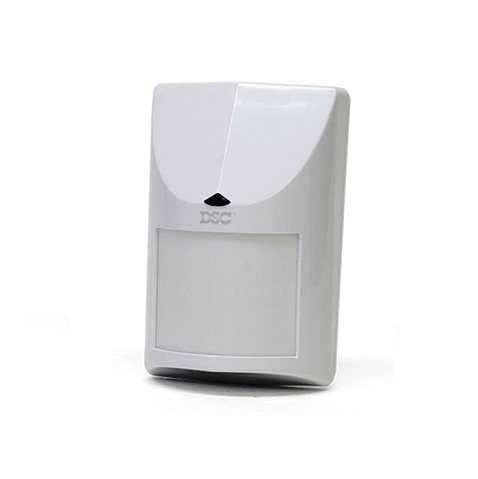

Model |
EC-301D |
|
Power Input |
9.5 to 14.5 Vdc |
|
Supply Voltage Ripple |
3.0 V pp @ 12 Vdc / 3.0 V pp @ 12 Vdc |
|
Operating Current |
15 mA @ Standby / 18 mA @ Alarm |
|
Contact Rating |
100 mA @ 24 Vdc / 100 mA @ 24 Vcc |
|
Alarm contact resistor in common |
10 Ω 0.25 W |
|
Walk Detection Speed |
0.15 – 3 m/s |
|
Coverage Angle |
90° |
|
Vertical Adjustment |
+5° to -10° |
|
Static Immunity |
8 kV contact, 15 kV air |
|
Transient Immunity |
2.4 kV @ 1.2 joules |
|
Alarm Time |
2 sec (±5 sec) |
|
Operating Temperature |
From -10° C to +50°C |
|
Relative Humidity |
Max 95% |
|
RFI Immunity |
10 V/m plus 80% AM from 80MHz to 1GHz |
|
Mounting Heights |
1.8 – 3.2 m |
