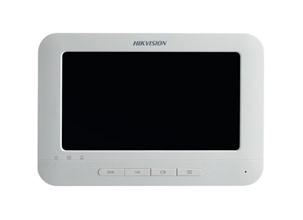

7“ Screen Indoor Station, physical push button, 7-Inch Colorful TFT LCD, display resolution: 800 * 480, physical button, 10/100Mbps Ethernet, 2-ch alarm input, Power Over Network Cable (24V) / 12 VDC
|
System Parameters |
|
|
|
|
|
Processor: |
High-Performance Embedded SOC Processor |
|
|
|
|
Operation System: |
Embedded Linux Operation System |
|
|
|
|
Memory: |
256M |
|
Display Parameters |
|
|
|
|
|
Display Screen: |
7-Inch Colorful TFT LCD |
|
|
|
|
Display Resolution: |
800 × 480 |
|
|
|
|
Operation Method: |
Physical Button |
|
|
|
|
Operation interface: |
Flattened UI Operation Interface |
|
Audio Parameters |
|
|
|
|
|
Audio Input: |
Built-in Omnidirectional Microphone |
|
|
|
|
Audio Output: |
Built-in Loudspeaker |
|
|
|
|
Audio Compression Standard: |
G.711 U |
|
|
|
|
Audio Compression Rate: |
64 Kbps |
|
|
|
|
Audio Quality: |
Noise Suppression and Echo Cancellation |
|
Network Parameters |
|
|
|
|
|
Ethernet: |
10/100 Mbps Self-Adaptive Ethernet |
|
|
|
|
Network Protocol: |
TCP/IP, RTSP |
|
Alarm Parameters |
|
|
|
|
|
Alarm Input: |
2-ch Alarm Input Sensor |
|
Device Interfaces |
|
|
|
|
|
Network Interface: |
1 RJ-45 10/100 Mbps Self-Adaptive Ethernet Interface |
|
|
|
|
RS-485: |
1 RS-485 Half-Duplex Port |
|
|
|
|
I/O Output: |
1 |
|
General |
|
|
|
|
|
Power Supply: |
12 VDC/24 VDC, Power Over Network Cable (DS-KAD606, DS-KAD612) |
|
|
|
|
Power Consumption: |
≤10 W |
|
|
|
|
Certification: |
FCC, IC, CE, C-TICK, ROHS, REACH, WEEE |
|
|
|
|
Working Temperature: |
-10° C to + 55° C (14° F to 131° F) |
|
|
|
|
Working Humidity: |
10% to 90% |
|
|
|
|
Dimensions(L × W × H): |
217 mm × 142 mm × 26 mm (8.5" × 5.6" × 1.0") |
