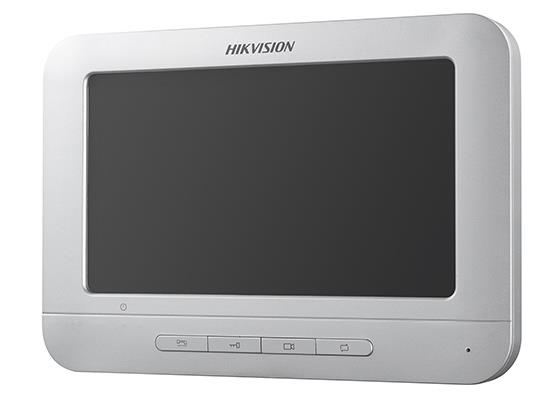

7“ Screen LCD Indoor Station, Video Intercom Communication, Support Three Indoor Stations Cascading in Intercom System; Remote Unlocking, Monitoring Door Station and External Analog Camera. Display resolution: 800 * 480, physical button
|
Datasheet of Indoor Station (DS-KH2220) |
|
|
Display Parameters |
|
|
Display Screen: |
7-Inch Colorful TFT LCD |
|
Display Resolution: |
800 × 480 |
|
Operation Method: |
Physical Button |
|
Audio Parameters |
|
|
Audio Input: |
Built-in Omnidirectional Microphone |
|
Audio Output: |
Built-in Loudspeaker |
|
Audio Quality: |
Noise Suppression and Echo Cancellation |
|
Device Interfaces |
|
|
Four-wire Interface: |
4 Four-Wire Interfaces (1-ch Video Input, 1-ch Audio Input/Output, 1-ch Power |
|
Supply, 1-ch Grounding in 1 Four-Wire Interface) |
|
|
General |
|
|
|
|
|
Power Supply: |
12 VDC |
|
|
|
|
Power Consumption: |
≤5 W |
|
|
|
|
Working Temperature: |
-10° C to + 55° C (14° F to 131° F) |
|
|
|
|
Working Humidity: |
10% to 90% |
|
|
|
|
Dimensions(L × W × H): |
195.8 mm × 132.8 mm × 18.39 mm (7.7" × 5.2" ×0.7") |
