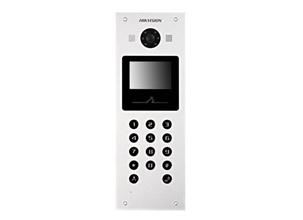

3.5" Physical Touch Key 1.3 MP Door Station, Aluminum Alloy, 3.5-inch Colorful TFT LCD, Display resolution: 480 * 320, Camera resolution: HD720P, 25fps(P)/30fps(N), Visible Light Supplement; 10M/100M/1000M Self-adaptive Ethernet, Wiegand & RS-485; 8-ch alarm input,4-ch alarm output, IP65, USB 2.0, 12 VDC.
|
System Parameters |
|
|
Processor: |
High-Performance Embedded SOC Processor |
|
Operation System: |
Embedded Linux Operation System |
|
Video Parameters |
|
|
Camera: |
CMOS Low Illumination 1.3 MP HD Colorful Camera |
|
Video Compression Standard: |
H.264 |
|
Resolution: |
1280 x 720 |
|
Video frame rate: |
PAL: 25 fps, NTSC: 30 fps |
|
Display Parameters |
|
|
Display Screen: |
3.5-Inch Colorful TFT LCD |
|
Display Resolution: |
480 × 320 |
|
Operation Method: |
Physical Keypad |
|
Operation interface: |
LCD Display, Easy Menu |
|
Audio Parameters |
|
|
Audio Input: |
Built-in Omnidirectional Microphone |
|
Audio Output: |
Built-in Loudspeaker |
|
Audio Compression Standard: |
G.711 U |
|
Audio Compression Rate: |
64 Kbps |
|
Audio Quality: |
Noise Suppression and Echo Cancellation |
|
Network Parameters |
|
|
Ethernet: |
10/100/1000 Mbps Self-Adaptive Ethernet |
|
Network Protocol: |
TCP/IP, RTSP |
|
Access Control Parameters |
|
|
Internal Card Reader: |
Built-in IC Card Reader |
|
External Card Reader: |
Wiegand 26, Wiegand 34, or RS-485 IC Reader |
|
Door Magnetic Detection: |
Detects Door Magnetic Status |
|
Light Supplement |
|
|
Light Supplement Mode: |
Visible Light Supplement |
|
Alarm Parameters |
|
|
Alarm Input: |
Door Magnetic Alarm, Tampering Alarm |
|
Device Interfaces |
|
|
Network Interface: |
1 RJ-45 10/100/1000 Mbps Self-Adaptive Ethernet Interface |
|
RS-485: |
1 RS-485 Half-Duplex Port |
|
I/O Input: |
4 |
|
I/O Output: |
4 |
|
Wiegand: |
1 Wiegand Port for Accessing Wiegand IC Card Reader |
|
USB : |
1 USB 2.0, Supporting U-Disk |
|
General |
|
|
Material: |
Aluminum Alloy |
|
Power Supply: |
12 VDC |
|
Power Consumption: |
≤15 W |
|
Certification: |
FCC, IC, CE, C-TICK, ROHS, REACH, WEEE |
|
Working Temperature: |
-40° C to +70° C (-40° F to 158° F) |
|
Working Humidity: |
10% to 90% |
|
IP Protection Level: |
IP65 |
|
Dimensions(L × W × H): |
357 mm × 124 mm × 55 mm (14.1" × 4.9" × 2.2") |
