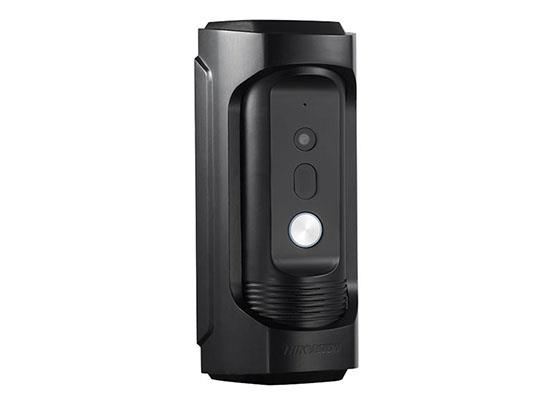

1.3 MP Villa Door Station, Aluminum alloy, Camera resolution: HD720P, 25fps(P), 10M/100M Self-adaptive Ethernet, RS-485, 4-ch alarm input,1-ch alarm output, IP66,IK9, 12 VDC, Standart POE(48V), 1-ch Indoor station access, IR Supplement 5m; Field of View: 80° (horizontal), 44° (vertical)
|
Video Parameters |
|
|
Video Compression Standard: |
H.264 |
|
Video streaming: |
Dual Stream |
|
Resolution: |
Main Stream: 1280 × 720 |
|
Sub-Stream: 640 x 480 |
|
|
Video frame rate: |
PAL: 25 fps, NTSC: 30 fps |
|
Video bit rate: |
Main Stream: 32 Kbps to 4096 Kbps |
|
Sub-Stream: 32 Kbps to 2048 Kbps |
|
|
Anti-flicker frequency: |
50 Hz, 60 Hz |
|
Wide dynamic range: |
Digital WDR, Auto-Switch, DAY/ON, NIGHT/OFF |
|
Image settings: |
Color, Brightness, Contrast, Sharpness, Saturation, Video Standard,OSD Display |
|
Audio Parameters |
|
|
Audio streaming: |
Two-Way, Full Duplex |
|
Audio Input: |
Built-in Omnidirectional Microphone |
|
Audio Output: |
Built-in Loudspeaker |
|
Audio Compression Standard: |
G.711 U |
|
Audio Compression Rate: |
64 Kbps |
|
Audio Quality: |
Noise Suppression and Echo Cancellation |
|
Light Supplement |
|
|
Light Supplement Mode: |
IR Supplement, IR Distance: 5 Meters |
|
Wavelength: |
940 nm |
|
Control: |
Auto ON/OFF, Time ON/OFF |
