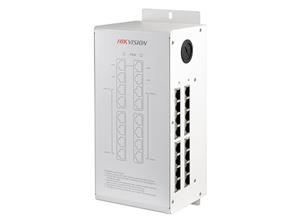

Built-in voltage-stabilized power, 16 x 100Mbps ports(12-ch supporting network cable powering and 4-chcascading LAN interfaces), suitable for indoor station and villa door station
|
Network Parameters |
|
|
Interface number: |
Sixteen 10/100 Mbps Interfaces |
|
Interface type: |
RJ-45, Full/Half-Duplex, MDI/MDI-X Self-Adaptive |
|
|
|
|
Standard: |
IEEE802.3, IEEE802.3u, IEEE802.3x |
|
|
|
|
Processing type: |
Storing and Forwarding |
|
|
|
|
Flow control: |
IEEE802.3x (Full-Duplex), Back Pressure (Half-Duplex) |
|
|
|
|
Priority queue: |
Four |
|
|
|
|
MAC address list: |
8K |
|
|
|
|
Internal buffer: |
1 Mbit |
|
General |
|
|
|
|
|
Power Supply: |
220V AC |
|
|
|
|
Power Consumption: |
<6 W |
|
|
|
|
Certification: |
FCC, IC, CE, C-TICK, ROHS, REACH, WEEE |
|
|
|
|
Working Temperature: |
-30°C to 70°C (-22°F to 158°F) |
|
|
|
|
Working Humidity: |
5% to 95%, No Condensation |
|
|
|
|
Dimensions(L × W × H): |
268.6 mm × 118.4 mm × 102.2 mm (10.6" × 4.7" × 4.0") |
