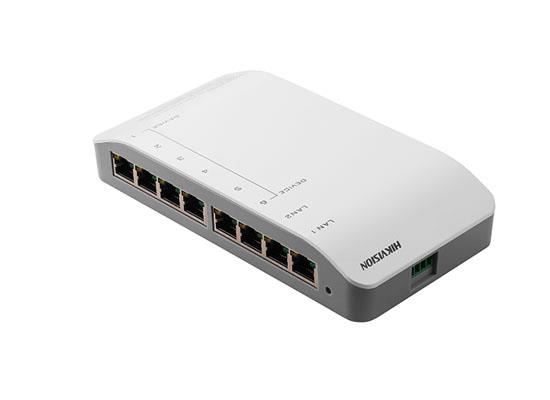

Built-in 24 VDC Power Supply Six 10/100 Mbps LAN Ports with Network Cable Power Two 10/100 Mbps Cascading LAN Ports IEEE802.3, IEEE802.3u, IEEE802.3x Storing and Forwarding Function VLAN Technology 1,000,000+ Hours MTBF Wall Mounting Optional
|
Network Parameters |
|
|
Interface number: |
Eight 10/100 Mbps Interfaces |
|
Interface type: |
RJ-45, Full/Half-Duplex, MDI/MDI-X Self-Adaptive |
|
Standard: |
IEEE802.3, IEEE802.3u, IEEE802.3x |
|
Processing type: |
Storing and Forwarding |
|
Flow control: |
IEEE802.3x (Full-Duplex), Back Pressure (Half-Duplex) |
|
Priority queue: |
Four |
|
Max. VLAN: |
64 |
|
VLAN ID No.: |
VID1 to VID4094 |
|
MAC address list: |
8K |
|
Internal buffer: |
1 Mbit |
|
General |
|
|
Power Supply: |
24 VDC (24V DC Power Adapter included) |
|
Power Consumption: |
≤8 W |
|
Working Temperature: |
-10° C to + 55° C (14° F to 131° F) |
|
Working Humidity: |
10% to 90%, No Condensation |
|
Dimensions(L × W × H): |
176 mm × 91 mm × 32 mm (69.3" × 35.8" × 12.6") |
