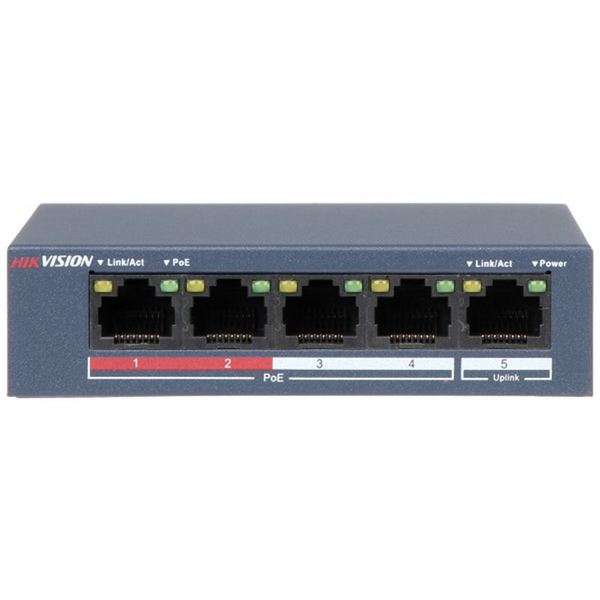

4 x 100M PoE ports and 1 x 100M Ethernet port. Supports IEEE802.3at/af. Supports IEEE 802.3, IEEE 802.3u and IEEE 802.3x. Supports high priority ports. Supports 8-core power supply. Up to 250 m transmission distance. PoE port with 6 KV surge protection. Supports PoE output power management. 100M network access. Wire-speed forwarding and non-blocking design. Store-and-forward switching. Solid high-strength metal shell. Fan-free design with high reliability.
|
Port amount: |
5 |
||||
|
Port type: |
RJ45, 10/100 Base-T(X) |
||||
|
Standard: |
IEEE 802.3, IEEE 802.3u, IEEE 802.3x |
||||
|
Forwarding method: |
Store-and-forward |
||||
|
Flow control: |
Back-pressure flow control in IEEE 802.3x full duplex |
||||
|
Priority queue: |
2 |
||||
|
MAC address table: |
1 K |
||||
|
QoS: |
Supported on ports 1 and 2. |
||||
|
Switching capacity: |
1 Gbps |
||||
|
Packet forwarding rate: |
0.744 Mpps |
||||
|
Physical appearance/structure |
|
||||
|
Appearance: |
0.6 mm sheet of galvanized metal without electric fan |
|
|||
|
Weight: |
0.141 kg |
|
|||
|
Dimension: |
100 mm × 100 mm × 26 mm |
|
|||
|
Mounting type: |
Desktop / wall mounting |
|
|||
|
Environment |
|||||
|
Operating temperature: |
(0 - 40) °C |
||||
|
Storage temperature: |
(-40 - 70) °C |
||||
|
Operating humidity: |
(10 – 90) % RH, non-condensing |
||||
|
Storage humidity: |
(5 – 90) % RH, non-condensing |
||||
|
Power supply |
|||||
|
Power input: |
48 V DC, 0.8 A |
||||
|
Reverse connection protection: |
Supported |
||||
|
Power consumption: |
< 38 W |
||||
