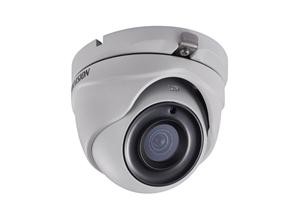

DS-2CE56H1T-ITM - 5MP , 2,8mm, 20fps 5MP, 25fps@4MP resolution, 20m IR, Outdoor
5 Megapixel high-performance CMOS • Analog HD output, up to 5MP resolution • 2.8-12mm motorized vari-focal lens • True Day/Night • OSD menu, DNR, Smart IR • EXIR technology, up to 20m IR distance • IP67 weatherproof • Up the Coax(HIKVISION-C)
|
Camera |
||
|
Image Sensor: |
| |
5MP CMOS Image Sensor |
|
Effective Pixels: |
| |
2592(H)*1944(V) |
|
Min. Illumination: |
| |
Color: 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR |
|
Shutter Time: |
| |
1/25(1/30) s to 1/50,000 s |
|
Lens: |
| |
2.8 mm, 3.6 mm, 6 mm fixed focal Lens |
|
Lens Mount: |
| |
M12 |
|
Adjustment Range: |
| |
Pan: 0° to 360°; Tilt: 0° to 75°; Rotate: 0° to 360° |
|
Day& Night: |
| |
IR cut filter with auto switch |
|
Video Frame Rate: |
| |
2592×1944@20fps |
|
HD Video Output: |
| |
1 Analog HD output |
|
Synchronization: |
| |
Internal/Power synchronization |
|
Menu |
||
|
D/N Mode: |
| |
Auto / Color / B/W |
|
Auto White Balance: |
| |
Auto/MWB |
|
BLC: |
| |
Support |
|
AGC: |
| |
Support |
|
Language: |
| |
English/Chinese |
|
Function: |
| |
Brightness, Sharpness, Digital noise reduction, Mirror, Bad pixel correction, Smart IR |
|
General |
||
|
Operating Conditions: |
| |
-40 °C - 60 °C (-40 °F - 140 °F) |
|
Power Supply: |
| |
12 VDC±30% |
|
Power Consumption: |
| |
Max. 5 W |
|
Weather Proof: |
| |
IP67 |
|
IR Range: |
| |
Approx 10 to 20 meters |
|
Communication : |
| |
Up the coax |
|
Dimension: |
| |
91 mm × 82.6 mm × 68.3 mm (3.58" × 3.25" × 2.69") |
|
Weight: |
| |
Approx. 350 g (0.77 lb) |
