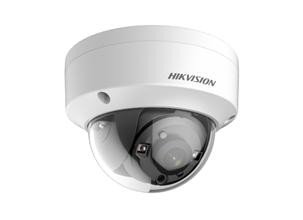

DS-2CE56D7T-VPIT - HD1080P WDR Vandal Proof EXIR Dome Camera
• 2 Megapixel high-performance CMOS • Analog HD output, up to 1080P resolution • True Day/Night • OSD menu, DNR, Smart IR • True WDR, up to 120dB • EXIR technology, up to 20m IR distance • IP66 weatherproof & vandal proof • Up the Coax(HIKVISION-C)
|
Camera |
|
|
Image Sensor: |
2MP CMOS Image Sensor |
|
Signal System: |
PAL/NTSC |
|
Effective Pixels: |
1928(H)*1088(V) |
|
Min. Illumination: |
0.01 Lux @ (F1.2,AGC ON),0 Lux with IR |
|
Shutter Time: |
1/25(1/30) s to 1/50,000 s |
|
Lens: |
3.6mm/6mm optional |
|
Angle of View: 82.2°(3.6mm), 54°(6mm) |
|
|
Lens Mount: |
M12 |
|
Adjustment Range: |
Pan: 0 - 340°, Tilt: 0 - 75°, Rotation: 0 - 355° |
|
Day& Night: |
IR cut filter with auto switch |
|
Wide Dynamic Range: |
120dB |
|
Video Frame Rate: |
1080p@25fps/1080p@30fps |
|
HD Video Output: |
1 Analog HD output |
|
Synchronization: |
Internal Synchronization |
|
S/N Ratio: |
More than 62 dB |
|
Up the Coax: |
Support |
|
Menu |
|
|
Auto White Balance: |
Auto/MWB |
|
BLC: |
Support |
|
AGC: |
Support |
|
Language: |
English/Chinese |
|
Function: |
Wide Dynamic Range; Digital Noise reduction; Mirror; SMART IR |
|
General |
|
|
Operating Conditions: |
-40 °C - 60 °C (-40 °F - 140 °F) |
|
Humidity 90% or less (non-condensing) |
|
|
Power Supply: |
12 VDC±15% |
|
Power Consumption: |
Max. 5W |
|
Impact Protection: |
IK10. |
|
Weather Proof: |
IP66 |
|
IR Range: |
Up to 20m |
|
Communication : |
Up the coax |
|
Protocol: HIKVISION-C(Coaxitron) |
|
|
Dimension: |
φ111mm×82.5mm (φ0.43”×3.25”) |
|
Weight: |
Approx. 350g ( 0.77lb) |
