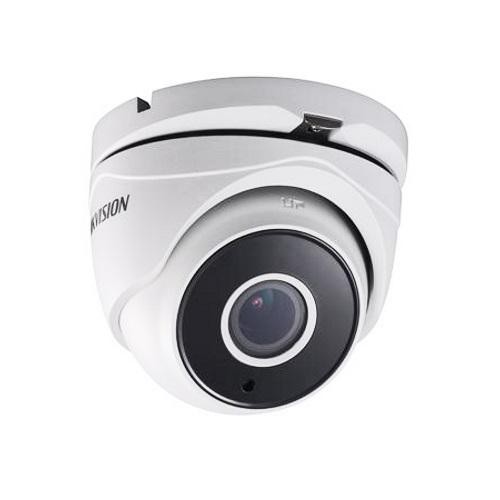

• 2 Megapixel high-performance CMOS • Analog HD output, up to 1080P resolution • True Day/Night • OSD menu, DNR, Smart IR • True WDR, up to 120dB • EXIR technology, up to 20/40m IR distance • IP66 weatherproof • Up the Coax(HIKVISION-C)
|
Camera |
||
|
Image Sensor: |
| |
2MP CMOS Image Sensor |
|
Signal System: |
| |
PAL/NTSC |
|
Effective Pixels: |
| |
1928(H)*1088(V) |
|
Min. Illumination: |
| |
0.01 Lux @ (F1.2,AGC ON),0 Lux with IR |
|
Shutter Time: |
| |
1/25(1/30) s to 1/50,000 s |
|
Lens: |
| |
2.8mm/3.6mm/6mm optional |
|
Lens Mount: |
| |
M12 |
|
Adjustment Range: |
| |
Pan: 0 - 360°, Tilt: 0 - 75°, Rotation: 0 - 360° |
|
Day& Night: |
| |
IR cut filter with auto switch |
|
Wide Dynamic Range: |
| |
120dB |
|
Video Frame Rate: |
| |
1080p@25fps/1080p@30fps |
|
HD Video Output: |
| |
1 Analog HD output |
|
Synchronization: |
| |
Internal Synchronization |
|
S/N Ratio: |
| |
More than 62 dB |
|
Up the Coax: |
| |
Support |
|
Menu |
||
|
Auto White Balance: |
| |
Auto/MWB |
|
BLC: |
| |
Support |
|
AGC: |
| |
Support |
|
Language: |
| |
English/Chinese |
|
Function: |
| |
Wide Dynamic Range; Digital Noise reduction; Mirror; SMART IR |
|
General |
||
|
Operating Conditions: |
| |
-40 °C - 60 °C (-40 °F - 140 °F) |
|
Power Supply: |
| |
12 VDC±15% |
|
Power Consumption: |
| |
Max. 5W |
|
Weather Proof: |
| |
IP66 |
|
IR Range: |
| |
Up to 20m |
|
Communication : |
| |
Up the coax |
|
Dimension: |
| |
φ110mm×93.2mm (φ4.33”×3.67”) |
|
Weight: |
| |
350g (0.77lb) |
