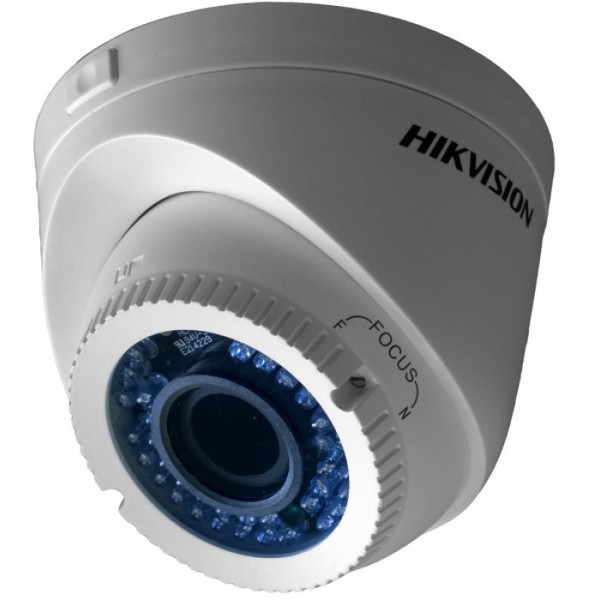

• 2 Megapixel high-performance CMOS • Analog HD output, up to 1080P resolution • 2.8 – 12mm vari-focal lens • True Day/Night, Smart IR • Up to 40m IR distance • IP66 weatherproof • OSD menu • Up the Coax(HIKVISION-C Protocol)
|
Camera |
||
|
Image Sensor: |
| |
2MP CMOS Image Sensor |
|
Signal System: |
| |
PAL/NTSC |
|
Effective Pixels: |
| |
1930(H) × 1088(V) |
|
Min. Illumination: |
| |
0.01 Lux @ (F1.2,AGC ON),0 Lux with IR |
|
Shutter Time: |
| |
1/25(1/30) s to 1/50,000 s |
|
Lens: |
| |
2.8 - 12 mm @ F1.4, Angle of view: 114.5°- 35.1° |
|
Lens Mount: |
| |
M12 |
|
Adjustment Range: |
| |
Pan: 0 - 360°, Tilt: 0 - 75°, Rotation: 0 - 360° |
|
Day& Night: |
| |
IR cut filter with auto switch |
|
Video Frame Rate: |
| |
1080p@25fps/1080p@30fps |
|
HD Video Output: |
| |
1 Analog HD output |
|
Synchronization: |
| |
Internal Synchronization |
|
S/N Ratio: |
| |
More than 62 dB |
|
Up the Coax: |
| |
Support |
|
Menu |
||
|
Camera ID: |
| |
On/Off (0-255) |
|
D/N Mode: |
| |
Color/ BW/ Auto/ EXT |
|
Auto White Balance: |
| |
Auto/User/Push/8000K/6000K/4200K/3000K |
|
Private Mask: |
| |
On/Off, maximum 8 zones |
|
Motion Detection: |
| |
On/Off, maximum 4 zones |
|
BLC: |
| |
On/Off |
|
AGC: |
| |
Support |
|
Anti-flicker: |
| |
On/ Off |
|
Language: |
| |
English/Chinese |
|
Function: |
| |
Digital noise reduction, Mirror |
|
General |
||
|
Operating Conditions: |
| |
-40 °C - 60 °C (-40 °F - 140 °F) |
|
Power Supply: |
| |
12 VDC±15% |
|
Power Consumption: |
| |
Max. 4.5W |
|
Weather Proof: |
| |
IP66 |
|
IR Range: |
| |
Up to 20m |
|
Communication : |
| |
Up the coax |
|
Dimension: |
| |
Φ130.54 × 102.4mm (Φ5.1” × 4”) |
|
Weight: |
| |
600 g |
