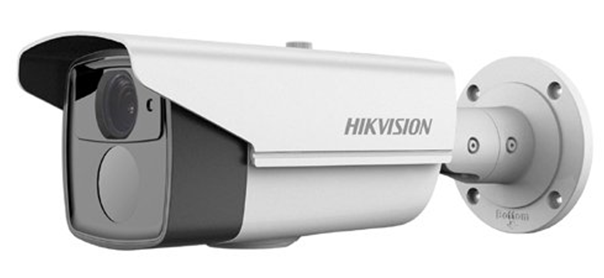

• 2 Megapixel high-performance CMOS • Analog HD output, up to 1080P resolution • 2.8-12mm vari-focal lens • True Day/Night • OSD menu, 3D DNR, Smart IR • True WDR, up to 120dB • Up to 50m IR distance • IP66 weatherproof • Up the Coax(HIKVISION-C, Pelco-C Protocol) • 24V AC/ 12V DC (-A)
|
Camera |
||
|
Image Sensor: |
| |
2MP CMOS Image Sensor |
|
Signal System: |
| |
PAL/NTSC |
|
Effective Pixels: |
| |
1944(H)×1092(V) |
|
Min. Illumination: |
| |
0.01 Lux @ (F1.2,AGC ON),0 Lux with IR |
|
Shutter Time: |
| |
1/25(1/30) s to 1/50,000 s |
|
Lens: |
| |
2.8-12mm @ F1.4 |
|
Lens Mount: |
| |
φ14 |
|
Adjustment Range: |
| |
Pan: 0 - 360°, Tilt: 0 - 90°, Rotation: 0 - 360° |
|
Day& Night: |
| |
IR cut filter with auto switch |
|
Wide Dynamic Range: |
| |
120dB |
|
Video Frame Rate: |
| |
1080p@25fps/1080p@30fps |
|
HD Video Output: |
| |
1 Analog HD output |
|
Synchronization: |
| |
Internal Synchronization |
|
CVBS Output: |
| |
1Vp-p Composite Output(75Ω/BNC) |
|
S/N Ratio: |
| |
More than 62 dB |
|
Up the Coax: |
| |
Support |
|
Menu |
||
|
Camera ID: |
| |
On/off (15 characters, position programmable) |
|
Auto White Balance: |
| |
ATW/ AWC-SET/ Indoor/ Outdoor/ Manual |
|
Private Mask: |
| |
On/Off, maximum 8 zones |
|
Motion Detection: |
| |
On/Off, maximum 4 zones |
|
BLC: |
| |
On/Off |
|
AGC: |
| |
Support |
|
Anti-flicker: |
| |
On/ Off |
|
Language: |
| |
English/ Japanese/ CHN1/ CHN2/ Korean/ German/ French/ Italian/ Spanish/ Polish/ Russian/ Portuguese/ Dutch/ Turkish/ Hebrew/ Arabic |
|
Function: |
| |
Eclipse, Digital noise reduction, Digital zoom(62x), Slow shutter, Mirror, Defog, Defect pixel |
|
Scene: |
| |
Indoor, Outdoor, Indoor1, LOW-LIGHT |
|
General |
||
|
Operating Conditions: |
| |
-30 °C ~ 60 °C (-22 °F ~ 140 °F) |
|
Power Supply: |
| |
12 VDC±15% |
|
Power Consumption: |
| |
Max. 7W |
|
Weather Proof: |
| |
IP66 |
|
IR Range: |
| |
Up to 50m |
|
Communication : |
| |
Up the coax |
|
Dimension: |
| |
300.82×100.76×107.55mm(11.84”×3.97”×4.23”) |
|
Weight: |
| |
700 g (1.54 lbs) |
