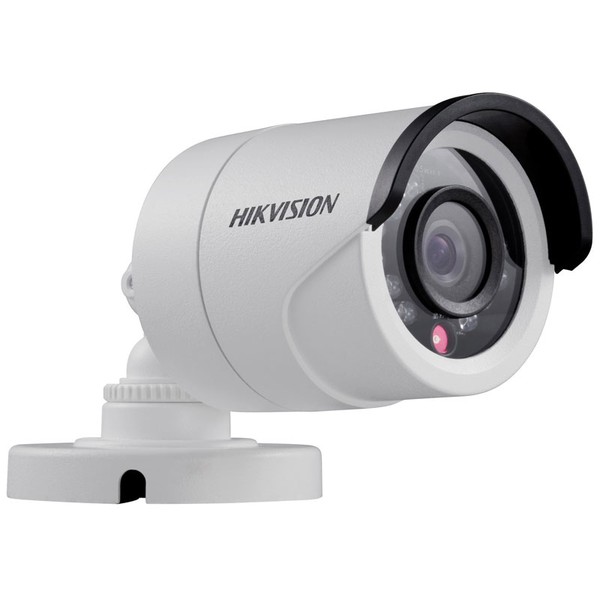

2 Megapixel high-performance CMOS · Analog HD output, up to 1080P resolution · True Day/Night · Smart IR · Up to 20m IR distance · IP66 weatherproof · Switchable TVI/AHD/CVI/CVBS
|
Camera |
||
|
Image Sensor: |
| |
2MP CMOS Image Sensor |
|
Signal System: |
| |
PAL/NTSC |
|
Effective Pixels: |
| |
1920(H)*1080(V) |
|
Min. Illumination: |
| |
0.01 Lux @ (F1.2,AGC ON),0 Lux with IR |
|
Shutter Time: |
| |
1/25(1/30) s to 1/50,000 s |
|
Lens: |
| |
2.8mm, 3.6mm, 6mm optional |
|
Lens Mount: |
| |
M12 |
|
Adjustment Range: |
| |
Pan: 0 - 360°, Tilt: 0 - 75°, Rotation: 0 - 360° |
|
Day& Night: |
| |
IR cut filter with auto switch |
|
Video Frame Rate: |
| |
1080p@25fps/1080p@30fps |
|
HD Video Output: |
| |
1 Analog HD output |
|
Synchronization: |
| |
Internal Synchronization |
|
S/N Ratio: |
| |
More than 62 dB |
|
General |
||
|
Operating Conditions: |
| |
-40 °C - 60 °C (-40 °F - 140 °F) |
|
Power Supply: |
| |
12 VDC±15% |
|
Power Consumption: |
| |
Max. 4W |
|
Weather Proof: |
| |
IP66 |
|
IR Range: |
| |
Up to 20m |
|
Dimension: |
| |
89.47 × 67.6 mm (3.52" × 2.7") |
|
Weight: |
| |
340 g |
