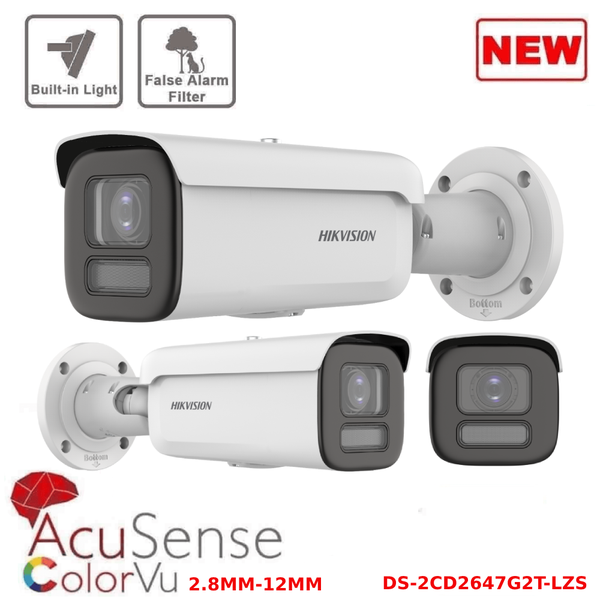

High quality imaging with 4 MP resolution Motorized varifocal lens for easy installation and monitoring 24/7 colorful imaging Clear imaging against strong backlight due to 130 dB WDR technology Focus on human and vehicle targets classification based on deep learning Efficient H.265+ compression technology Water and dust resistant (IP67) and vandal resistant (IK10)
- Camera
- Image Sensor 1/1.8" Progressive Scan CMOS
- Max. Resolution 2688 × 1520
- Min. Illumination Color: 0.0005 Lux @ (F1.0, AGC ON),0 Lux with light
- Shutter Time 1/3 s to 1/100,000 s
- Angle Adjustment Pan: 0° to 355°,tilt: 0° to 90°,rotate: 0° to 360°
- Day & Night 24/7 color imaging
- Lens
- Lens Type Varifocal lens, motorized lens, 2.8 to 12 mm
- Focal Length & FOV 2.8 to 12 mm, horizontal FOV 105.4° to 56.4°, vertical FOV 53.9° to 31.6°, diagonal FOV 131.8° to 65.1°
- Lens Mount Integrated
- Iris Type DC iris
- Aperture F1.0
- Depth of Field 1.9 m to ∞
- DORI
- DORI D: 66.8 m to 110.4 m, O: 26.5 m to 43.8 m, R: 13.4 m to 22.1 m, I: 6.7 m to 11 m
- Illuminator
- Supplement Light Type White Light
- Supplement Light Range Up to 60 m
- Smart Supplement Light Yes
- Video
-
Main Stream
50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
-
Sub-Stream
50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)
60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
-
Third Stream
50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
*Third stream is supported under certain settings.
-
Video Compression
Main stream: H.265/H.264/H.265+/H.264+,
Sub-stream: H.265/H.264/MJPEG,
Third stream: H.265/H.264,
*Third stream is supported under certain settings.
- Video Bit Rate 32 Kbps to 8 Mbps
- H.264 Type Baseline Profile,Main Profile,High Profile
- H.265 Type Main Profile
- Bit Rate Control CBR,VBR
- Scalable Video Coding (SVC) H.264 and H.265 encoding
- Region of Interest (ROI) 1 fixed region(s) for main stream and sub-stream
- Audio
- Audio Compression G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
- Audio Bit Rate 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
- Audio Sampling Rate 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
- Environment Noise Filtering Yes
- Network
- Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP, WebSocket, WebSockets
- Simultaneous Live View Up to 6 channels
- API Open Network Video Interface (Profile S, Profile G, Profile T),ISAPI,SDK
-
User/Host
Up to 32 users
3 user levels: administrator, operator, and user
- Security Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.1/1.2/1.3, host authentication (MAC address)
-
Network Storage
NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR),
Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
- Client iVMS-4200,Hik-Connect,Hik-Central
-
Web Browser
Plug-in required live view: IE 10+,
Plug-in free live view: Chrome 57.0+, Firefox 52.0+,
Local service: Chrome 57.0+, Firefox 52.0+
- Image
- Image Parameters Switch Yes
- Image Settings Rotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
- Day/Night Switch Day,Night,Auto,Schedule
- Wide Dynamic Range (WDR) 130 dB
- SNR ≥ 52 dB
- Image Enhancement BLC,HLC,3D DNR
- Privacy Mask 4 regions of privacy mask
- Interface
- Ethernet Interface 1 RJ45 10 M/100 M self-adaptive Ethernet port
-
On-Board Storage
Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB
-
Audio
1 input (line in), 2-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium,
1 output (line out), 2-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
- Alarm 1 input(s), 1 output(s) (max. 24 VDC/24 VAC, 1 A)
- Reset Key Yes
