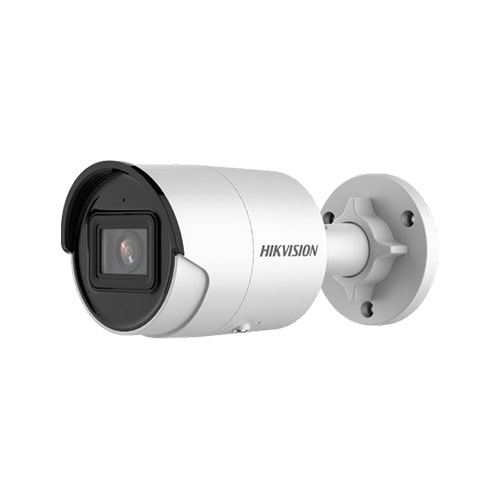

DS-2CD2086G2-I - 8MP, 2.8mm, IP67,66, IR 40m

Standard:

TCP/IP

Sensor:

1/1.8 " Progressive Scan CMOS

Scanning system:

Progressive

Matrix size:

8.3 Mpx

Resolution:

3840 x 2160  - 8.3 Mpx ,
3072 x 1728  - 5.3 Mpx ,
2688 x 1520  - 4 Mpx ,
1920 x 1080  - 1080p ,
1280 x 720  - 720p

Lens:

2.8 mm

View angle:

·  102 °

Compression:

H.265+ / H.265 / H.264+ / H.264 / MJPEG

Range of IR illumination:

40 m

Alarm inputs / outputs:

NO

Audio:

NO

Memory card slot:

Micro SD memory cards up to 256GB support (possible local recording)

Bitrate:

32  ... 16384 kbps

Main stream frame rate:

20 fps @ 8.3 Mpx

Network interface:

10/100 Base-T (RJ-45)

Network protocols:

TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, IEEE 802.1x, QoS, IPv6, UDP, Bonjour, SSL, TLS

WEB Server:

Built-in

Max. number of on-line users:

6

ONVIF:

18.12

Mobile phones support:

Port no.: 8000 or access by a cloud (P2P)

·  Android: Free application iVMS-4500 or Hik-Connect

·  iOS (iPhone): Free application iVMS-4500 or Hik-Connect

Default IP address:

192.168.1.64

Default admin user / password:

admin / -
The administrator password should be set at the first start

Web browser access ports:

80

PC client access ports:

Port no.: 8000 or access by a cloud (P2P) - iVMS-4200 application

Mobile client access ports:

8000

Port ONVIF:

80

RS-485 interface:

NO

Power supply:

·  PoE (802.3af),

·  12 V DC / 500 mA

Power consumption:

≤ 7.2 W @ PoE (802.3af)
≤ 6 W @ 12 V DC

Housing:

Compact, Metal

Color:

White

"Index of Protection":

IP67

Operation temp:

-30 °C ... 60 °C

Supported languages:

Polish, English, Bulgarian, Croatian, Czech, Danish, Estonian, Finnish, French, Greek, Spanish, Dutch, Lithuanian, Latvian, German, Norwegian, Portuguese, Russian, Romanian, Serbian, Slovak, Slovenian, Swedish, Turkish, Hungarian, Vietnamese, Italian

Weight:

0.5 kg

Dimensions:

Ø 70  x 162 mm

Manufacturer / Brand:

Hikvision

SAP Code:

311309629

Guarantee:

3 years
