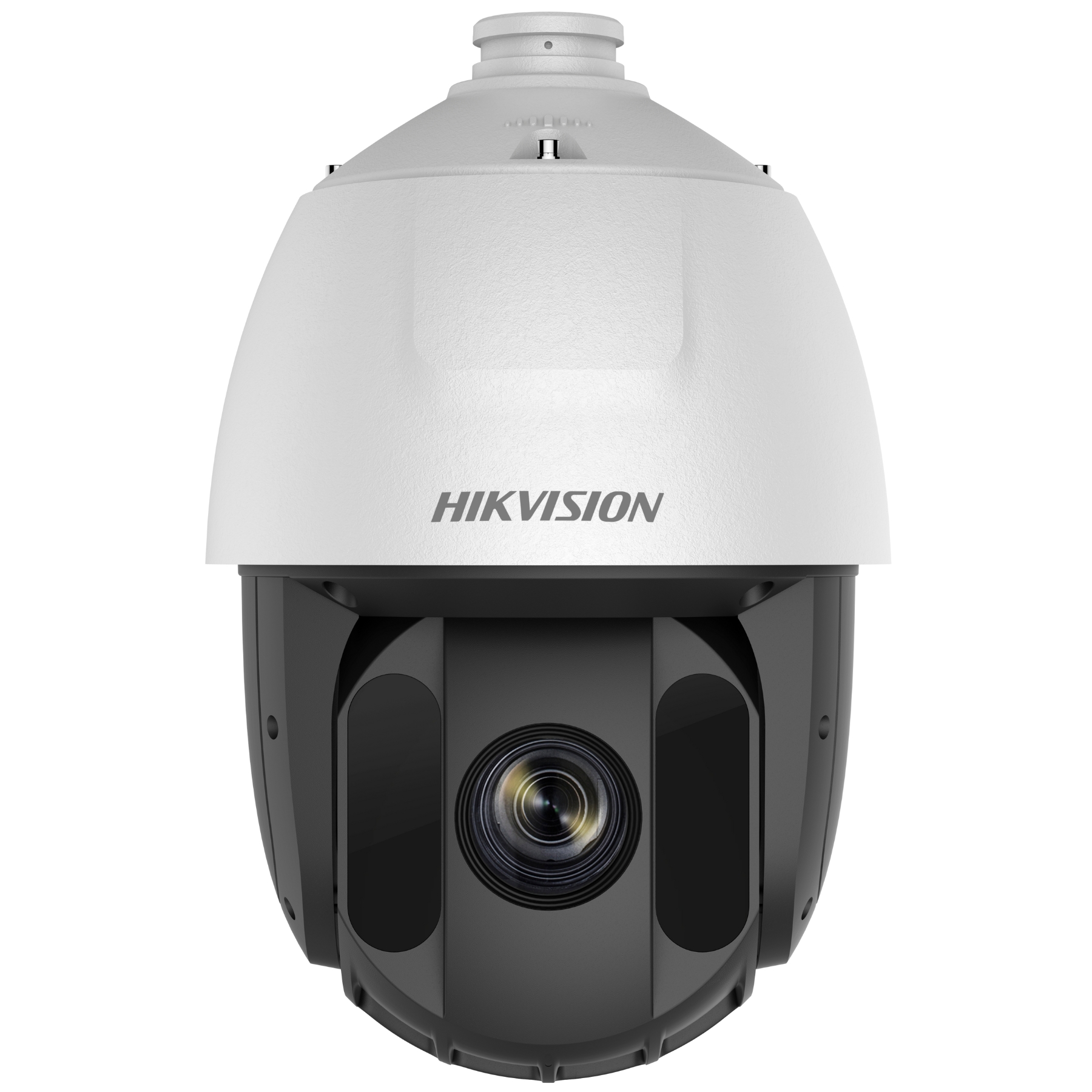

AHD, HD-CVI, HD-TVI, CVBS SPEED DOME CAMERA OUTDOOR DS-2AE5232TI-A(E) - 1080p 4.8 ... 153 mm Hikvision
Войдите в учётную запись, чтобы мы могли сообщить вам об ответе
Resolution: 1920 x 1080 ; Sensor: 1/2.8 " ; Range of IR illumination: 150 m ; View angle: 55.6 ° ... 2 ° ; Optical zoom: x 32 ; Rotation speed (manual control): 0.1 °/s ... 120 °/s (horizontal), 0.1 °/s ... 80 °/s (vertical) ; Alarm inputs / outputs: 2 / 1 ; Power supply: 24 V AC ;
| Standard: | HD-TVI, AHD, HD-CVI, CVBS |
| Resolution: | |
| Sensor: | 1/2.8 " Progressive Scan CMOS |
| Range of IR illumination: | 150 m |
| IR illuminator power adjustment: | Automatic |
| Lens: | 4.8 ... 153 mm |
| View angle: | 55.6 ° ... 2 ° |
| Optical zoom: | x 32 |
| Digital zoom: | x 16 |
| Rotation speed depending on ZOOM level: |  |
| Horizontal rotation range: | 360 ° continuous |
| Vertical rotation range: | -15 ° ... 90 ° |
| Rotation speed (manual control): | 0.1 °/s ... 120 °/s (horizontal) , 0.1 °/s ... 80 °/s (vertical) |
| Preset rotation speed: | 120 °/s (horizontal) 80 °/s (vertical) |
| PTZ control: | |
| Protocols: | Pelco-D, Pelco-P (auto detection) |
| Alarm inputs / outputs: | 2 / 1 |
| Video output: | 1 Vpp / 75 Ω, HD-TVI, AHD, HD-CVI, CVBS (switchable) |
| Number of presets: | 256 |
| Route settings: | 5 |
| Horizontal scan: | |
| Park action: | Call the set function (tour, scan, etc.) after specified dwell time |
| Main features: | |
| OSD menu: | |
| Housing: | Speed Dome, Metal / Plastic |
| Color: | White / Black |
| "Index of Protection": | IP66 |
| Mechanical protection class: |  |
| Power supply: | 24 V AC |
| Power consumption: | ≤ 30 W |
| Operation temp: | -30 °C ... 65 °C |
| Weight: | 3.3 kg |

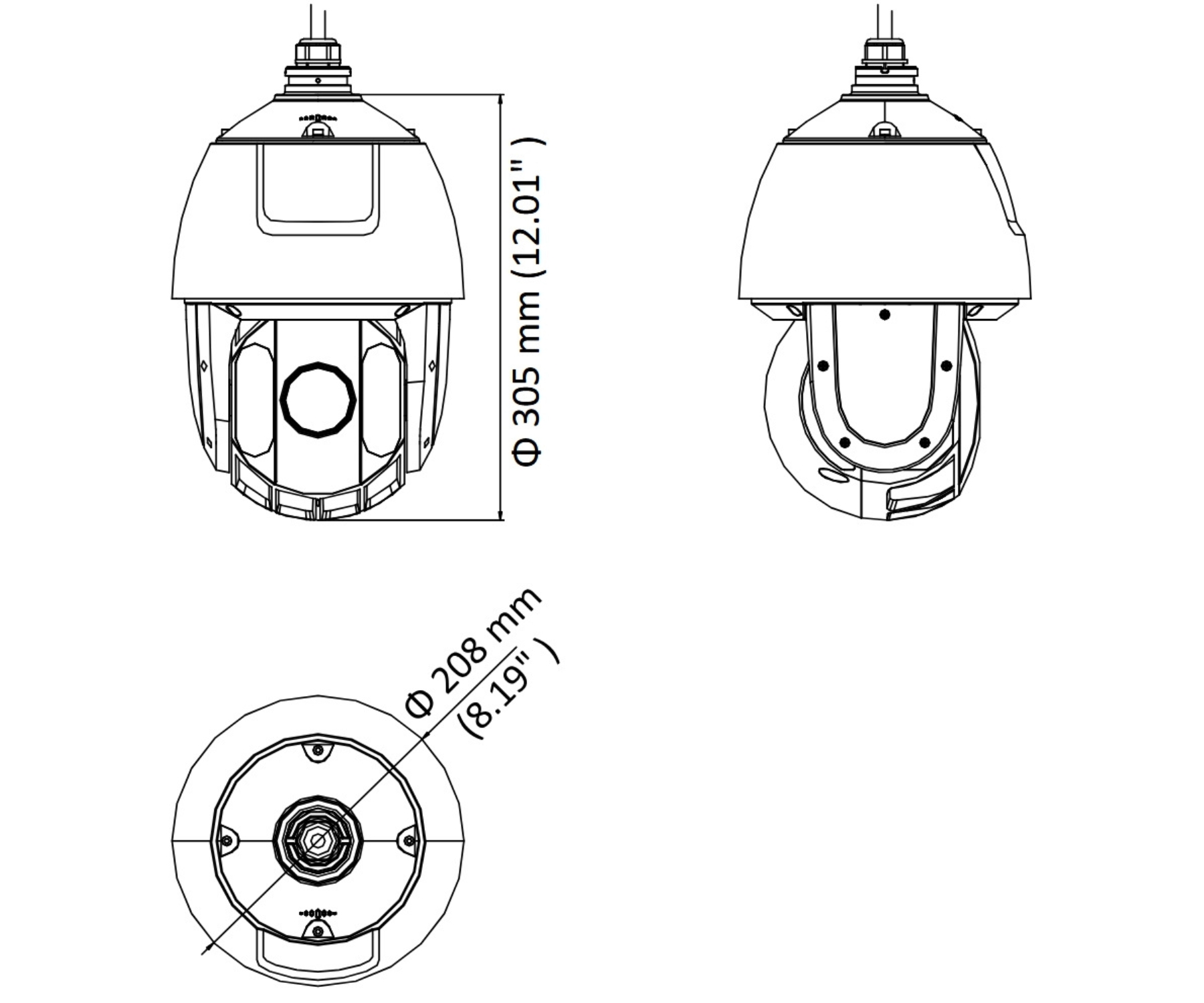

| Dimensions: | Ø 208 x 305 mm |
| Supported languages: | English |
| Manufacturer / Brand: | Hikvision |
| SAP Code: | 301205351 |
| Guarantee: | 3 years |
Brand:
Hikvision
