- intrusion control panel with 5 terminals;
- expandable to 10 terminals;
- 1 dry-contact programmable relay;
- 2 programmable open-collector output;
- RS232 port;
- 5 partitions;
- I-BUS devices: up to 5 nCode keypads, up to 10 Flex5 expansions, up to 10 nBy readers;
- 10 user codes;
- 20 proximity tags;
- 250 event logged;
- built-in recording time avialable up to 60 sec.;

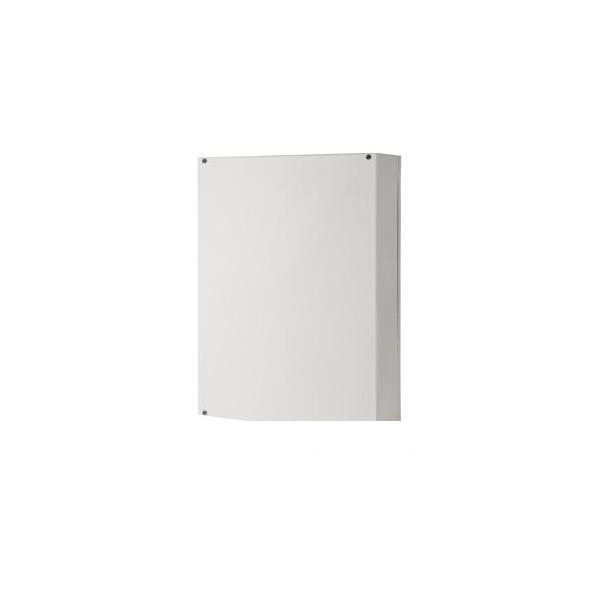

- metal housing 305x220x80mm;
- 0,8 A power supply;
- 7Ah battery housing.
|
Specification Ability |
||||||
|
510B |
1030B |
510V |
1030V |
1030M |
||
| Terminals on motherboard (configurable as inputs or outputs) |
5(0) |
10(5) |
5(0) |
10(5) |
10(5) |
|
|
Number of terminals supported by the system |
10 |
30 |
10 |
30 |
30 |
|
| Zone doubling (each input manages 2 zones) |
yes |
|||||
| Number of zones |
20 |
60 |
20 |
60 |
60 |
|
|
Programmable relay on motherboard |
1 |
|||||
| Number of programmable open-collector outputs on motherboard |
2 (150mA) |
|||||
| RS232 port |
1 |
|||||
| Number of partitions available |
5 |
|||||
|
Rolling event buffer |
250 |
|||||
|
Installer access codes |
1 |
|||||
|
Number of user-access codes (can be controlled by timers) |
10 |
|||||
|
Number of nKey Tags or nCards card (can be controlled by timers) |
20 |
|||||
|
Battery test circuit |
yes |
|||||
|
Integrated automatic digital-dialer |
yes |
|||||
|
Telephone contact numbers |
5 |
|||||
| Programmable scenarios (arming configurations) |
15 |
|||||
| Shortcuts (one-stroke actions) |
30 |
|||||
| Taimers |
2 |
|||||
|
Built- in recording time available |
8 sec. |
60 sec. |
- |
|||
| Total nmber of messages |
8 |
20 |
- |
|||
|
I-BUS devices |
||||||
|
Number of nCode keypads supported |
5 |
10 |
5 |
10 |
10 |
|
|
Number of Flex5 5-terminal Expansions supported |
10 |
10 |
10 |
20 |
20 |
|
| Number of nBy readers supported |
10 |
20 |
10 |
20 |
20 |
|
|
Number of Air2 Wireless Transceivers supported |
1 |
|||||
| "Zone mapping" |
yes |
|||||
|
Housing |
||||||
|
Housing |
metal |
|||||
| Dimensions |
305x220x80mm |
|||||
| Power supply voltage |
230VAC, 50/60Hz |
|||||
| Power supply |
0,8A |
1,2A |
0,8A |
1,2A |
1,2A |
|
| Battery housing |
12V,7Ah |
|||||
