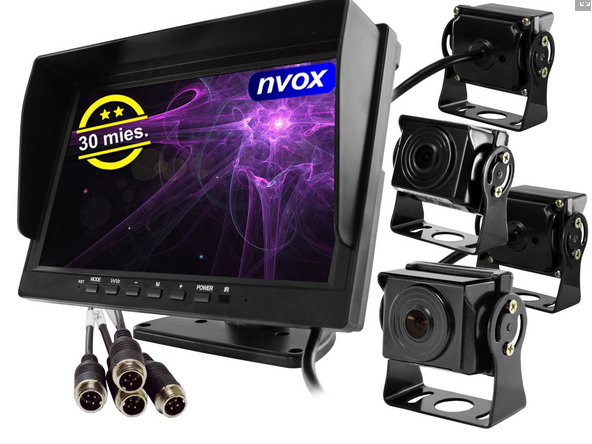

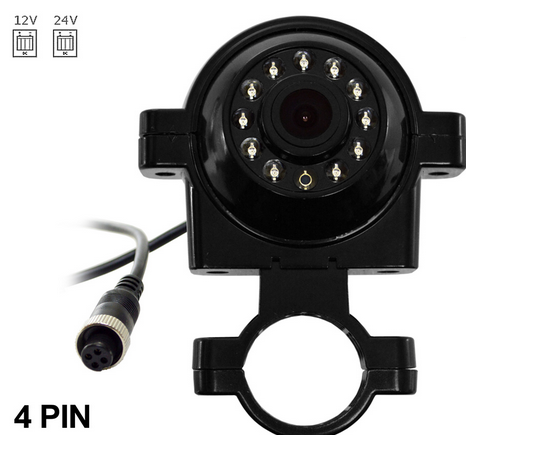

- AHD, a new technology that combines the advantages of analog transmission with IP quality transmission - HD 720p. - branded matrix with increased resolution - support for up to 4 4PIN QUAD cameras - possibility of mounting on a stand - can be used for monitoring (stand included) - auto switch-on function after receiving voltage on the additional DC 12V-24V cable (excitation system for each camera separately) - 4PIN QUAD connection - power and video cables in one cable • wide-format 16:9 TFT display (Active Matrix System) • 9-inch LCD matrix by SHARP • brightness 300cd/m2, • 500:1 contrast • HD resolution 1024x600pix • automatic switching on of the selected camera • ability to view all cameras at the same time (screen divided into 4 equal parts) • ability to preview the selected camera • functional simple MENU • systems: PAL/NTSC • power consumption < 7W • power supply: DC 12V-24V • dimensions: width 259mm x height 165mm x thickness 30mm • weight: approx. 415 g • black colour • AHD camera • color night vision, IP68 waterproof
