ACCESS CONTROLLER ASC3202B DAHUA

€289.66

(Включая налог 21%)

Задать вопрос

КОД: ASC3202B

Доступность: 7 шт.

Кол-во:

+ −

Купить в один клик

Описание
Особенности

Number of served transitions: 2 ; Number of supported readers: 2 pcs RS-485, 2 pcs Wiegand ; Alarm inputs / outputs: 2 / 2 ; Communication: RS-485, Wiegand 34/26, Ethernet ;

Number of served transitions:	2
Support:	Cooperation with the access control systems
Number of supported readers:	2 pcs RS-485, 2 pcs Wiegand
Battery backup support:
Alarm inputs / outputs:	2 / 2

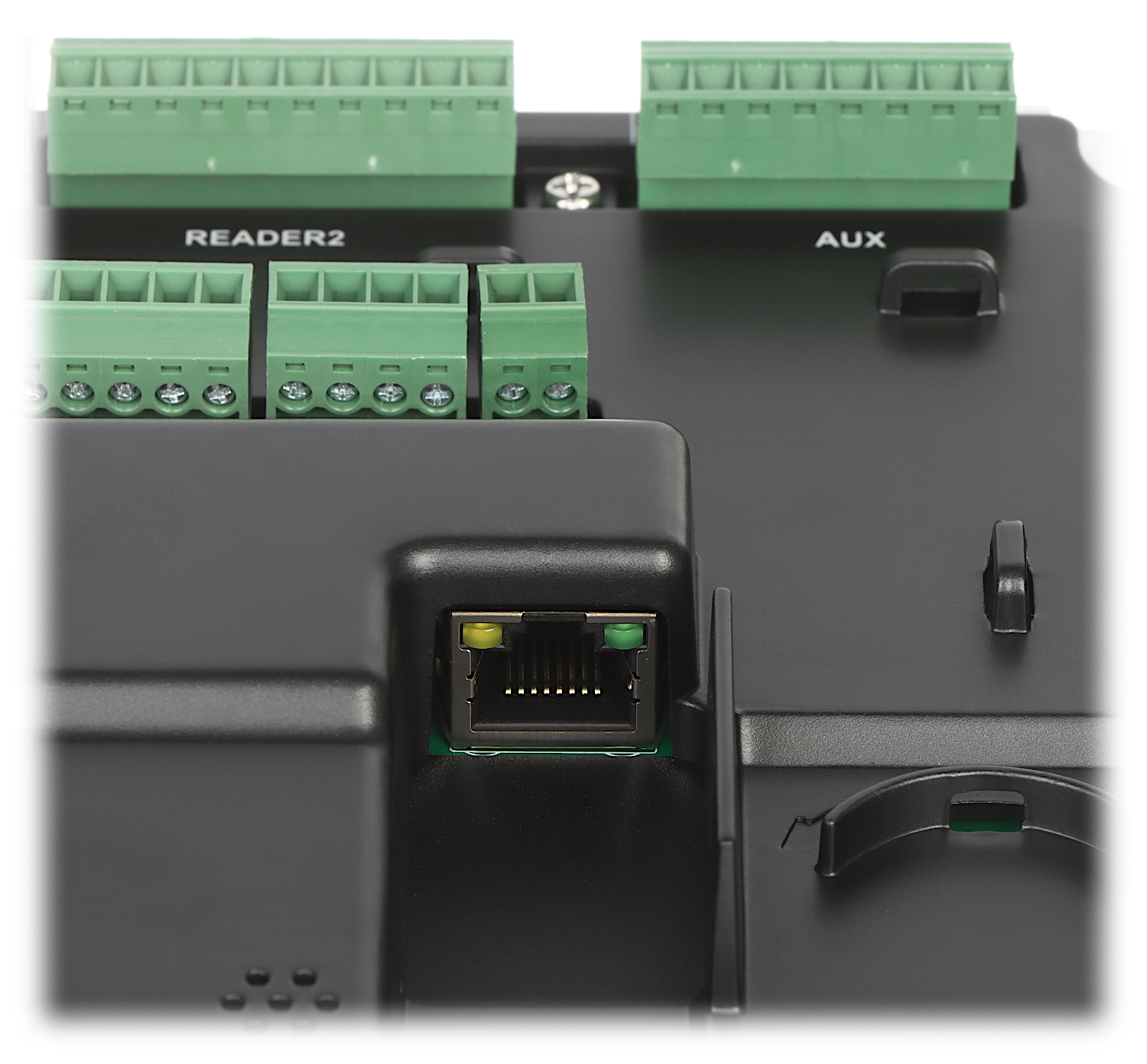

Communication:	3 x RS-485, 2 x Wiegand 34/26, 1 x Ethernet 10 / 100 Mbps (RJ-45)
Network protocols:	P2P, IPv4, DNS, DDNS, TCP, UDP, ONVIF CGI

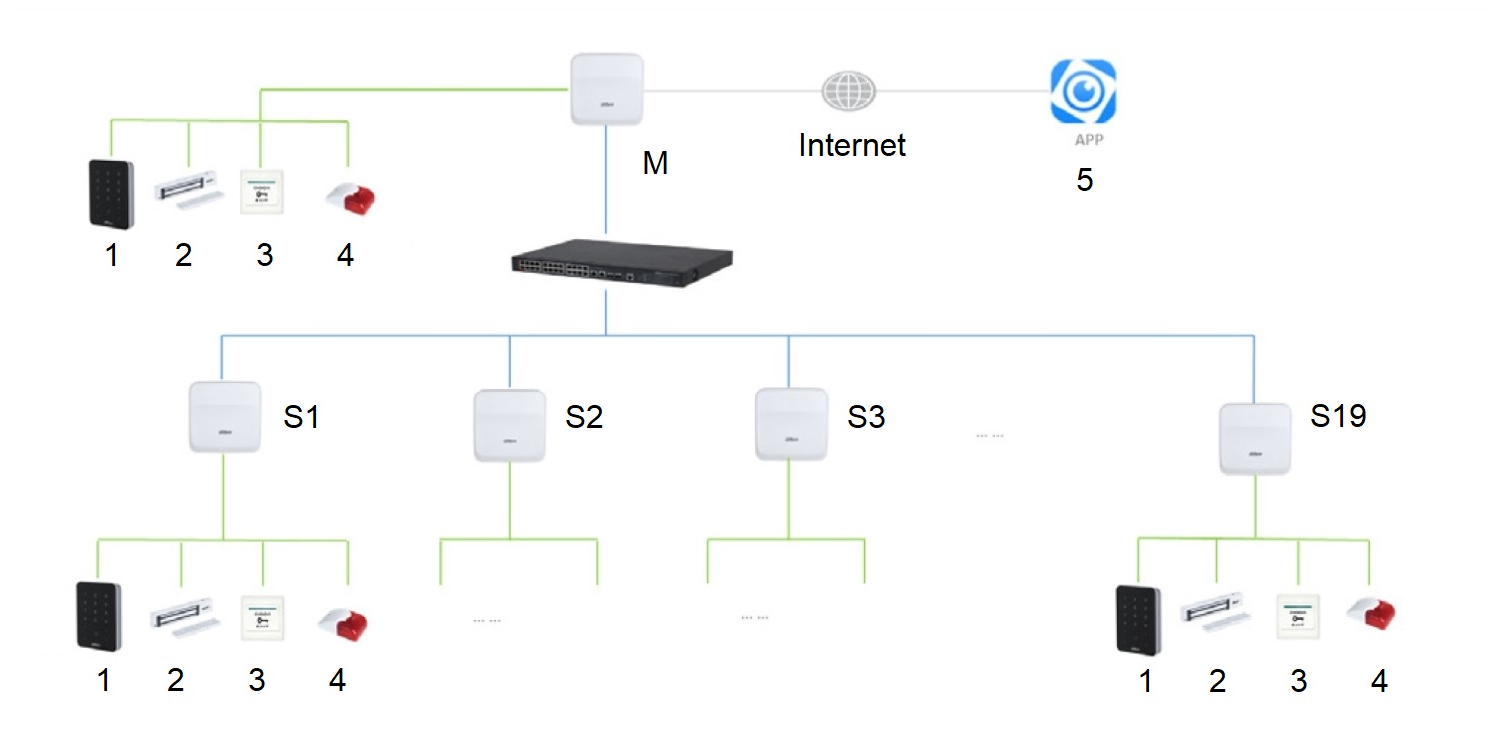

Operation modes:	Main control mode Sub control mode

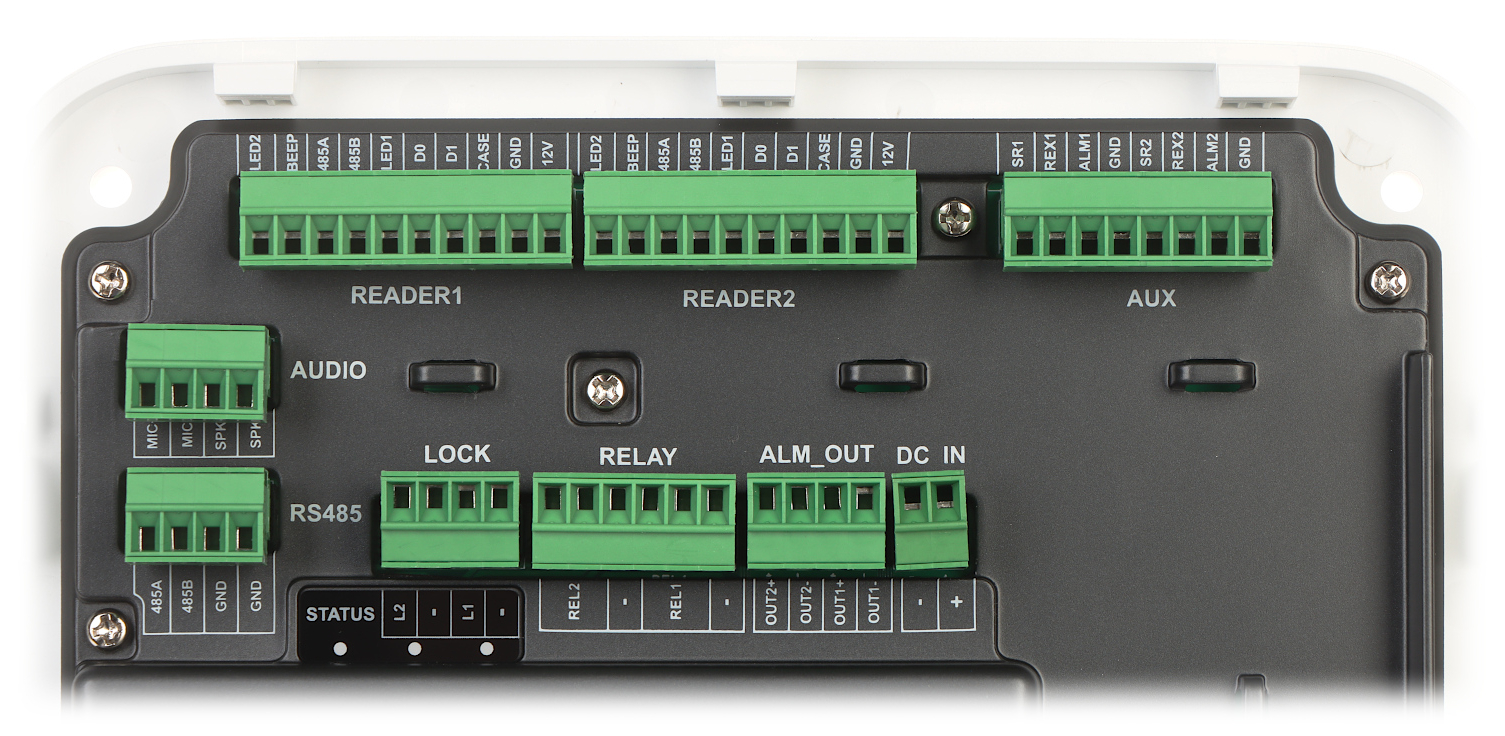

Main features:	Support for 2 doors (2x door sensor, 2x exit button, 2x alarm line, 2x lock control) 1000 indexed users Support up to 3000 finger prints Memory of 5000 RFID cards Support storage of 300 000 records 128 General Purpose Schedules Identification modes : RFID card, remote access, PIN, Fingerprint - Any combination of the above Tamper protections Automatic sending of alarm messages to the SmartPSS system or after entering a code, card or fingerprint defined as door opening under duress Counter of the door opening time with the possibility of sending an alarm signal after exceeding the set value Beep signal - Buzzer White list, Black list Web-Server built-in Software update via network Monitoring and configuration through network - SmartPSS Lite application Power output 12 V DC / 1 A - supplying power to the lock Support hardware I/O port configuration and export configuration diagrams ONVIF compliance
Power supply:	12 V DC / 2.5 A PoE (802.3at)
Power consumption:	≤ 2 W (standby) max. 20.4 W @ 12 V (operation) max. 14.4 W @ PoE (operation)
Housing:	Plastic (PC + ABS)
Color:	White
IK rating:	IK06
Operation temp:	-10 °C ... 55 °C
Permissible relative humidity:	5 % ... 95 % (non-condensing)
Weight:	0.72 kg

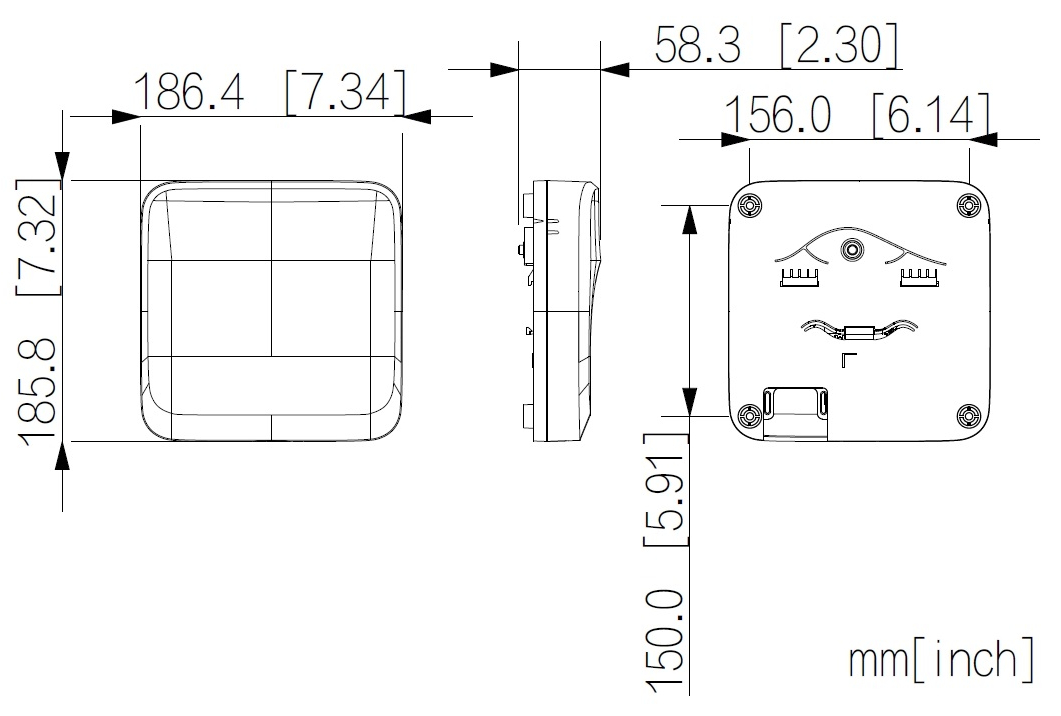

Dimensions:	186 x 186 x 58 mm
Manufacturer / Brand:	DAHUA
Guarantee:	3 years
