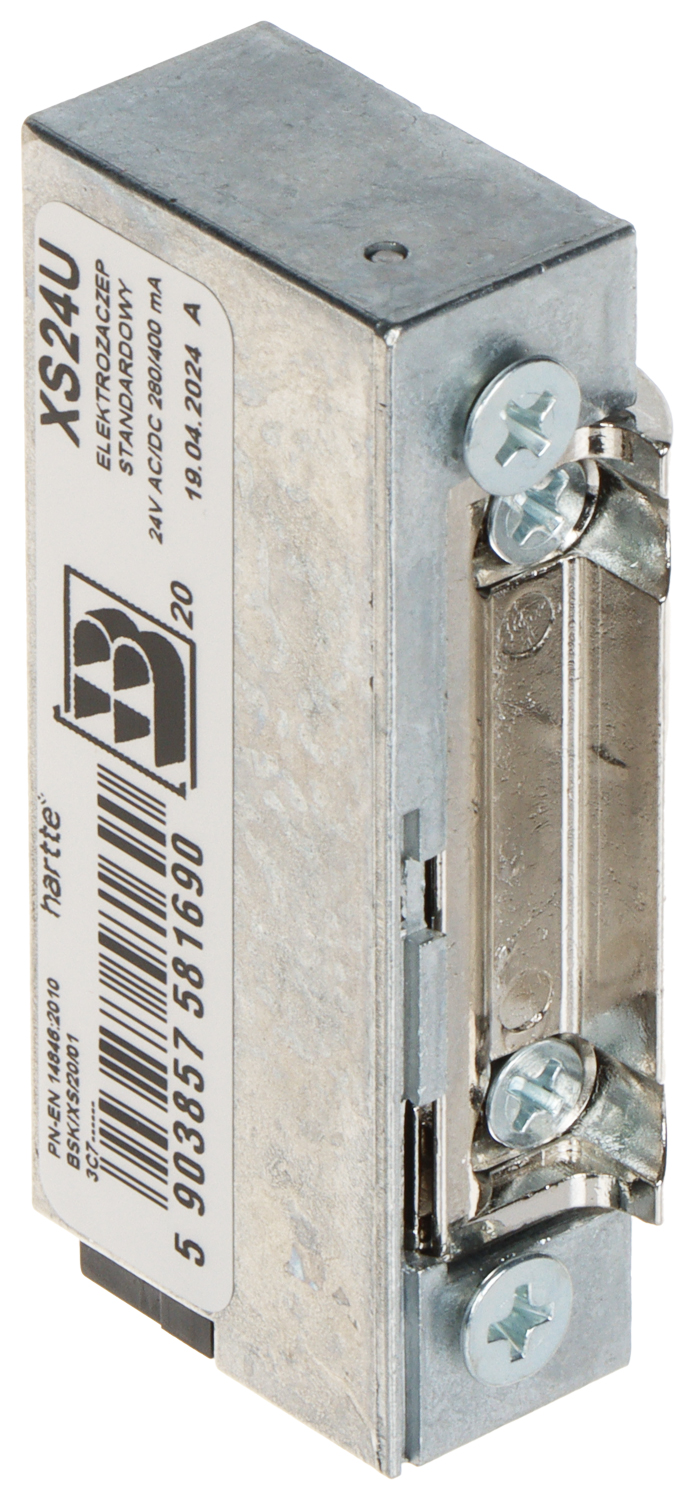

Rated voltage: 21 ... 26 V AC, 20 ... 26 V DC ; Application: right-side door / left-side door ; Clearance adjustment: 3.5 mm ; Main features: Narrow profile : 16.2 mm, Radial shape of the latch ;
| Rated voltage: | 21 ... 26 V AC , 20 ... 26 V DC |
| Current consumption: | 280 mA @ 24 V AC 400 mA @ 24 V DC |

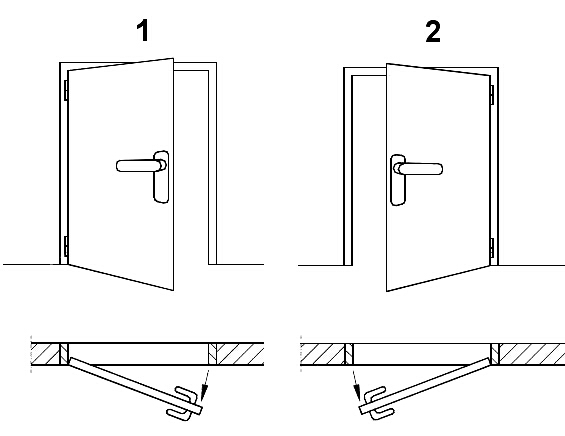

| Application: | right-side door / left-side door |
| Ratched lock: |  |
| Memory function: | |
| Reverse action: | |
| Clearance adjustment: | 3.5 mm |
| Allowable load of the door impacting the lock: | 3000 N |
| Allowable uninterrupted operation time: | |
| Main features: | |
| Weight: | 0.136 kg |
| Dimensions: | 16.2 x 28 x 67 mm |
| Manufacturer / Brand: | BIRA |
| Guarantee: | 2 years |
Brand:
Hartte
