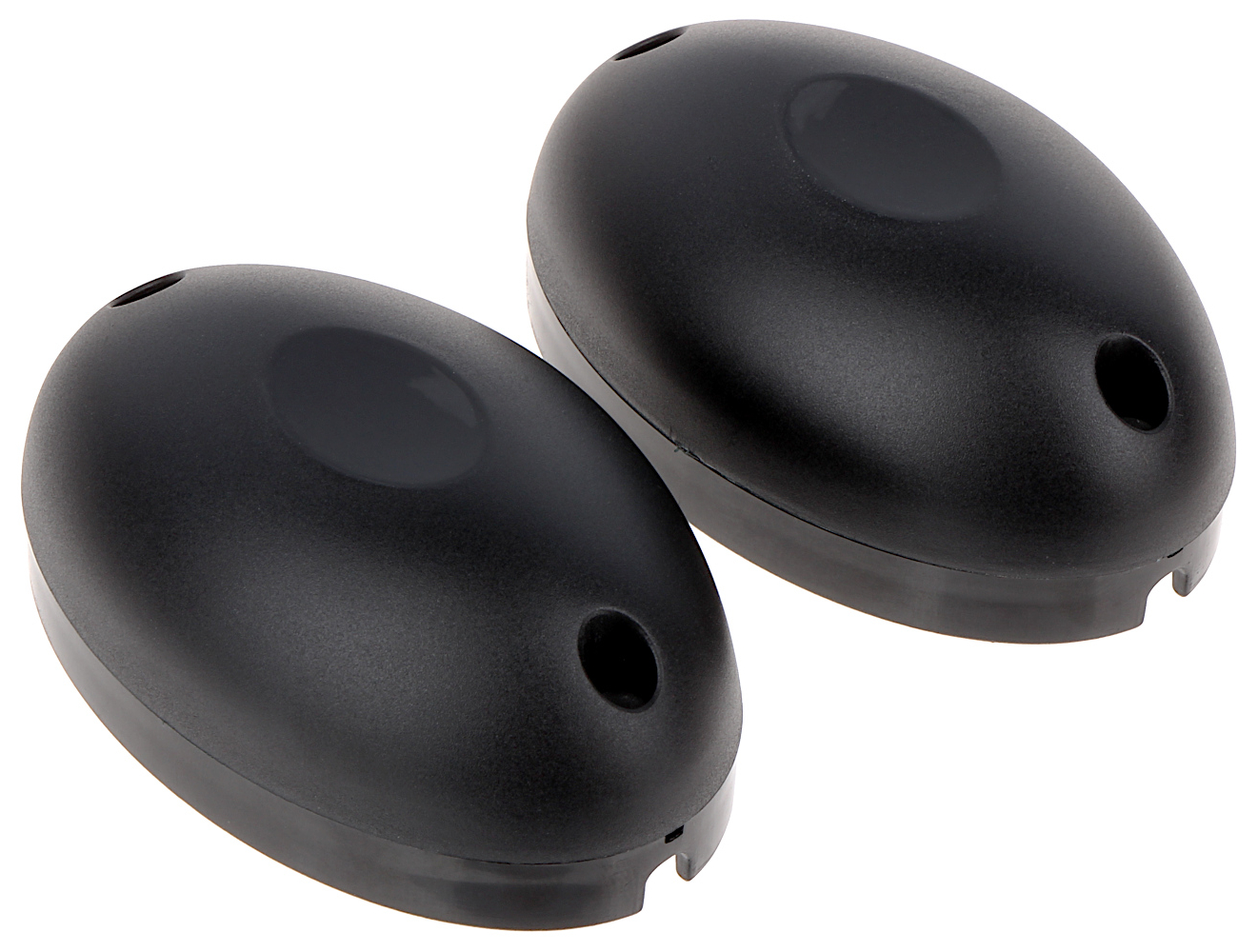

PHOTOCELL FT01 TXRX SET VIDOS
Войдите в учётную запись, чтобы мы могли сообщить вам об ответе
Photocells are designed for cooperation with gate automation systems; Beam width: ± 10 ° ; Operation range: 1 ... 20 m ; Frequency range: 1.92 kHz ; Response time: 50 ms ; Power supply: 10.5 ... 24 V DC / 0.5 A ; Number of relay outputs: 1 ; Relay maximal load: max. 0.5 A / 30 V AC/DC ; Output: 1 x NO/NC ;
| Beam width: | ± 10 ° |
| Operation range: | 1 ... 20 m |
| Frequency range: | 1.92 kHz |
| Response time: | 50 ms |
| Power supply: | 10.5 ... 24 V DC / 0.5 A |
| Current consumption: | |
| Number of relay outputs: | 1 |
| Relay maximal load: | max. 0.5 A / 30 V AC/DC |
| Output: | 1 x NO/NC |
| Main features: | |
| Operation temp: | -25 °C ... 55 °C |
| Weight: | |
| Dimensions: | 76 x 48 x 30 mm Transmitter / Receiver |
| Manufacturer / Brand: | VIDOS |
| Guarantee: | 3 years |
