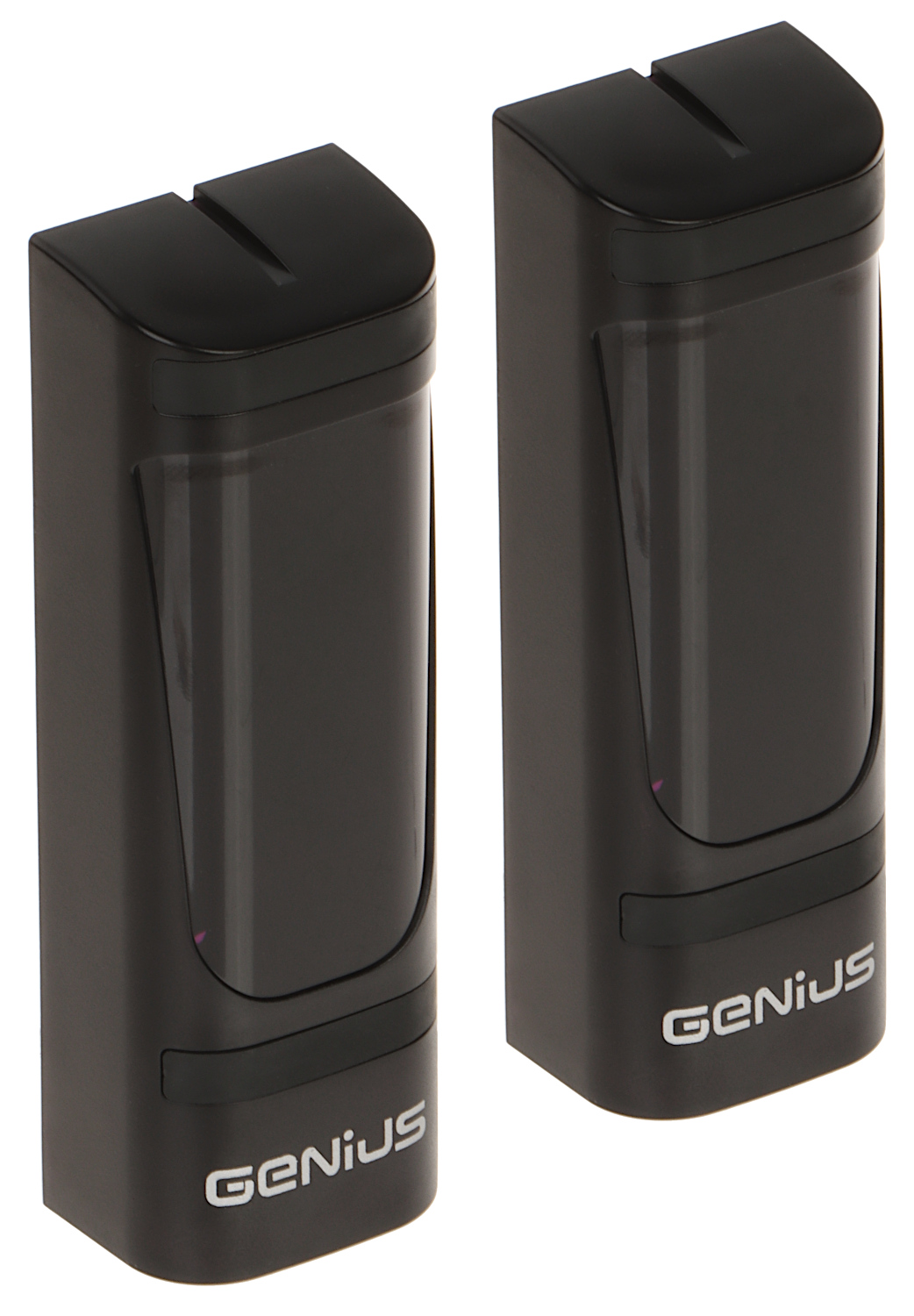

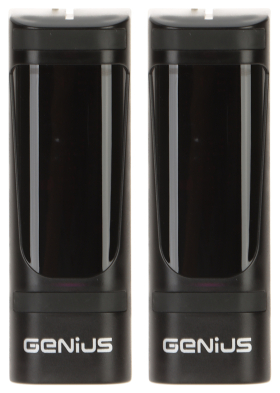

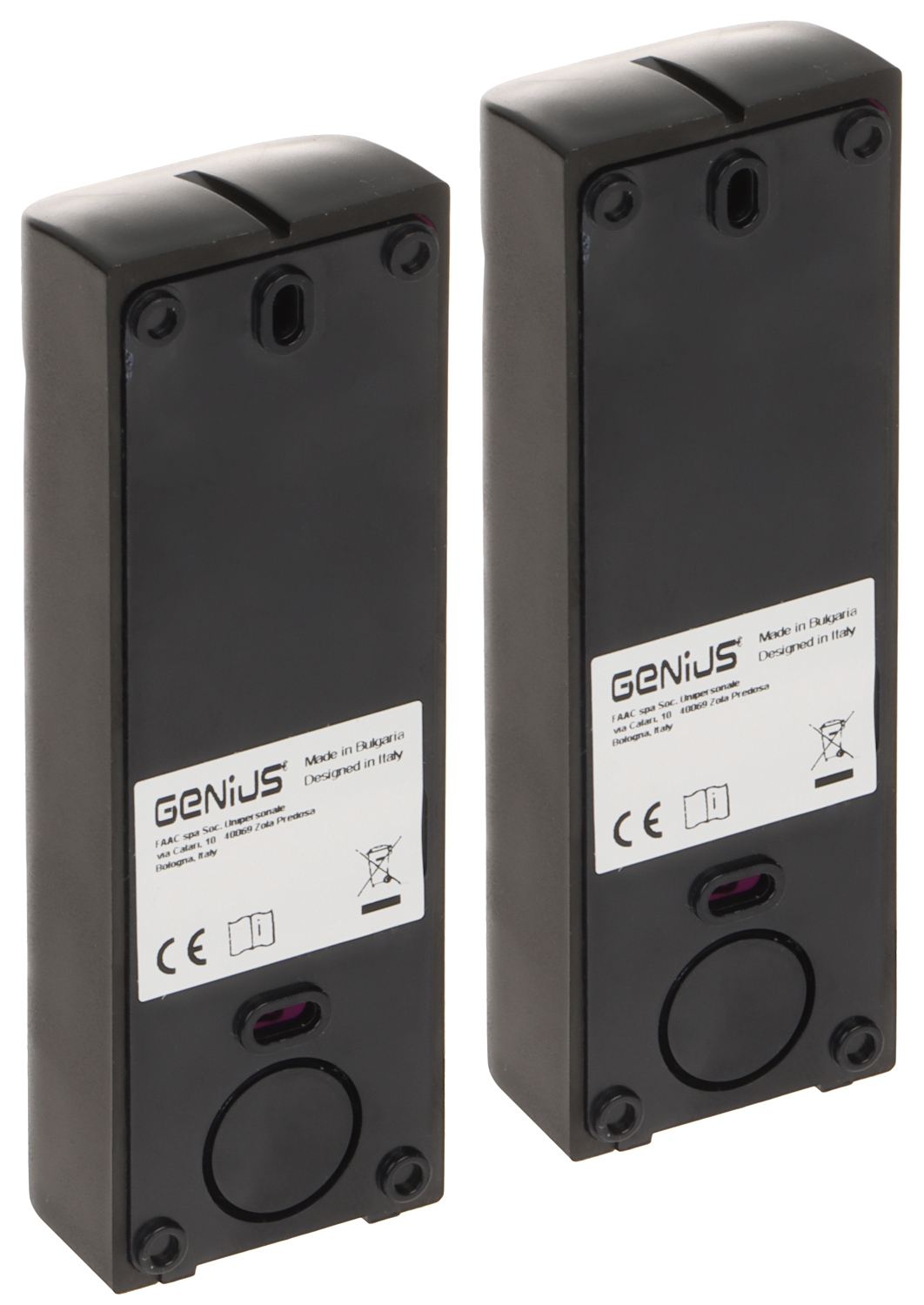

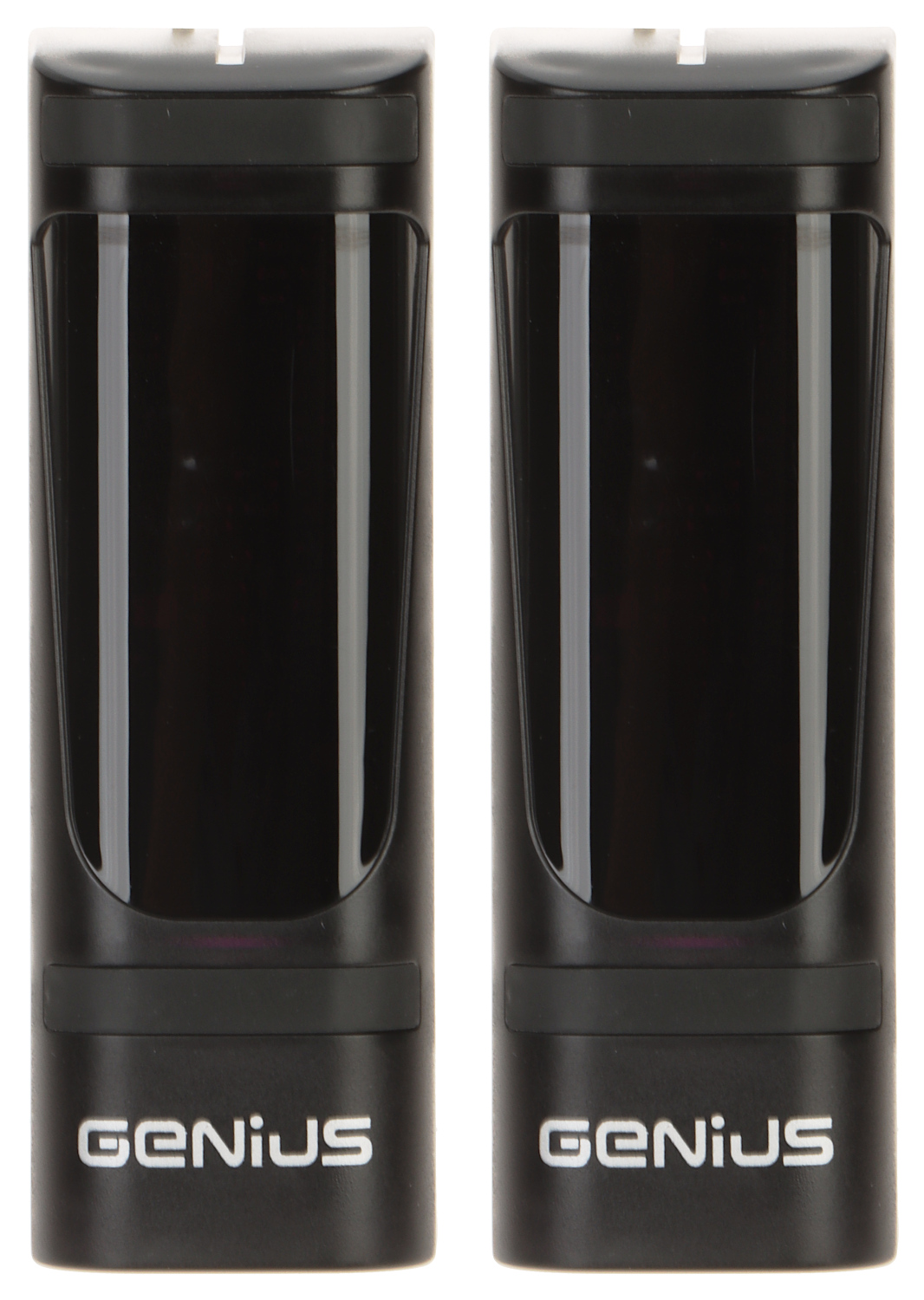

Photocells are designed for cooperation with gate automation systems; Beam width: ± 7 ° @ 20 m, ± 13.5 ° @ 5 m ; Operation range: 20 m ; Response time: 13 ms ; Power supply: 24 V AC/DC ; Number of relay outputs: 1 ; Relay maximal load: max. 60 VA / 24 W ; Output: 1 x NC ; Main features: Self-aligning function ;
| Beam width: | ± 7 ° @ 20 m , ± 13.5 ° @ 5 m |
| Operation range: | 20 m |
| Response time: | 13 ms |
| Power supply: | 24 V AC/DC |
| Current consumption: | |
| Number of relay outputs: | 1 |
| Relay maximal load: | max. 60 VA / 24 W |
| Output: | 1 x NC |
| Main features: | |
| Housing: | Plastic |
| "Index of Protection": | IP54 |
| Color: | Black |
| Operation temp: | -20 °C ... 55 °C |
| Weight: | |
| Dimensions: | 105 x 35 x 25 mm Transmitter / Receiver |
| Manufacturer / Brand: | FAAC / GENIUS |
| Guarantee: | 2 years |
Brand:
Genius
