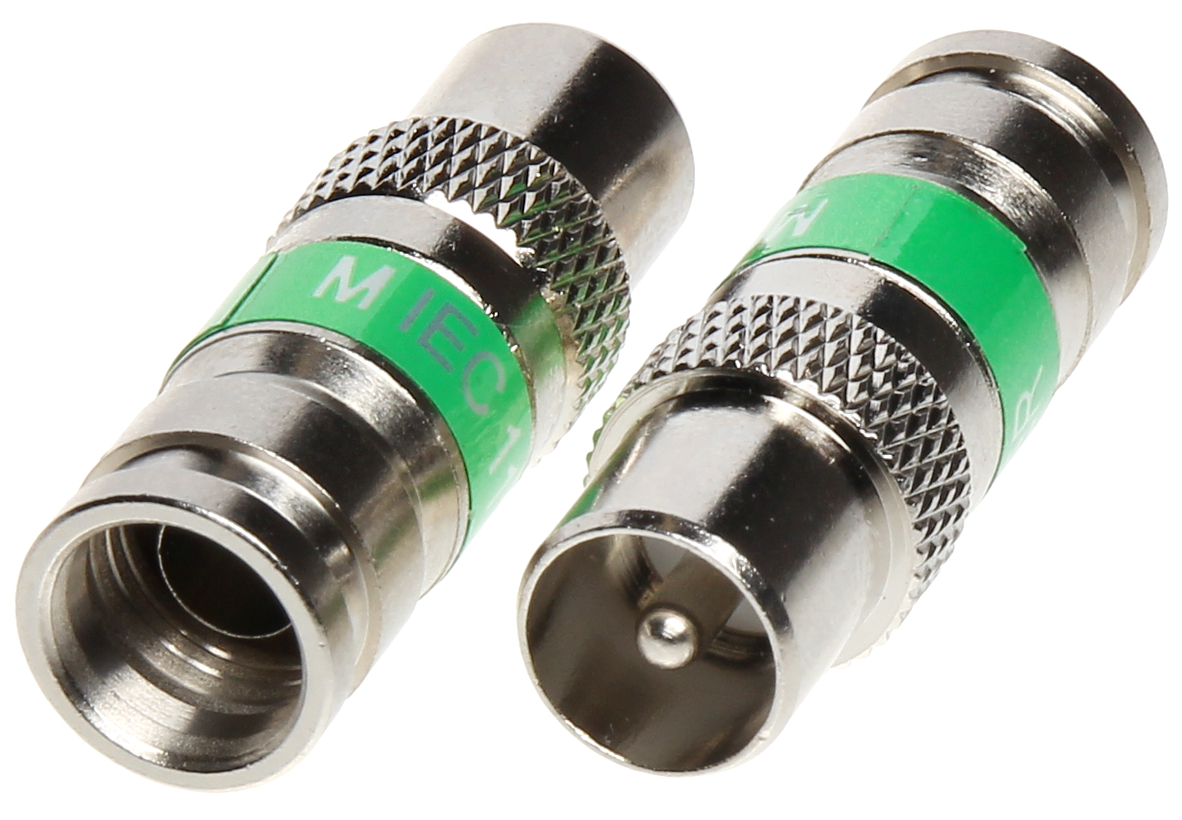

COMPRESSION PLUG IEC-W/ZAC-TRI113/MSR

0.56
(Включая налог 21%)
IEC-W/ZAC-TRI113/MSR
100 шт.
+
Connector type: IEC Straight plug ; Attachment of connector elements: Compression mounting ; Application: Coaxial cable ; Cable diameter: max. 8.0 mm ; Example of application: Triset-Profi, Triset113, Triset-113PE, Triset-113HF ;
Connector type: IEC Straight plug
Attachment of connector elements: Compression mounting
Shield fastening: Compression mounting
Wire mounting: Pressing
Application: Coaxial cable
Cable diameter: max. 8.0 mm
Impedance: 75 Ω
Material: Brass (Nickel-platted)
Watertightness:
Example of application: Triset-Profi, Triset113, Triset-113PE, Triset-113HF
Main features:
  • Wide frequency range
  • Watertightness of connector with cable connection
  • Resistance to corrosion - made of non-ferrous metals and highest-quality dielectric
  • Very low loss in the whole operating band
  • Perfect matching to the transmission line within the whole operating band
  • Properly compressed connection is highly resistant to break
  • Many patent-pending solutions
  • To crimp use the crimping tool HT-5082R
  • Weight: 0.009 kg
    Dimensions: Ø 11.5  x 33 mm
    Guarantee: 2 years
    Brand:
    Master
