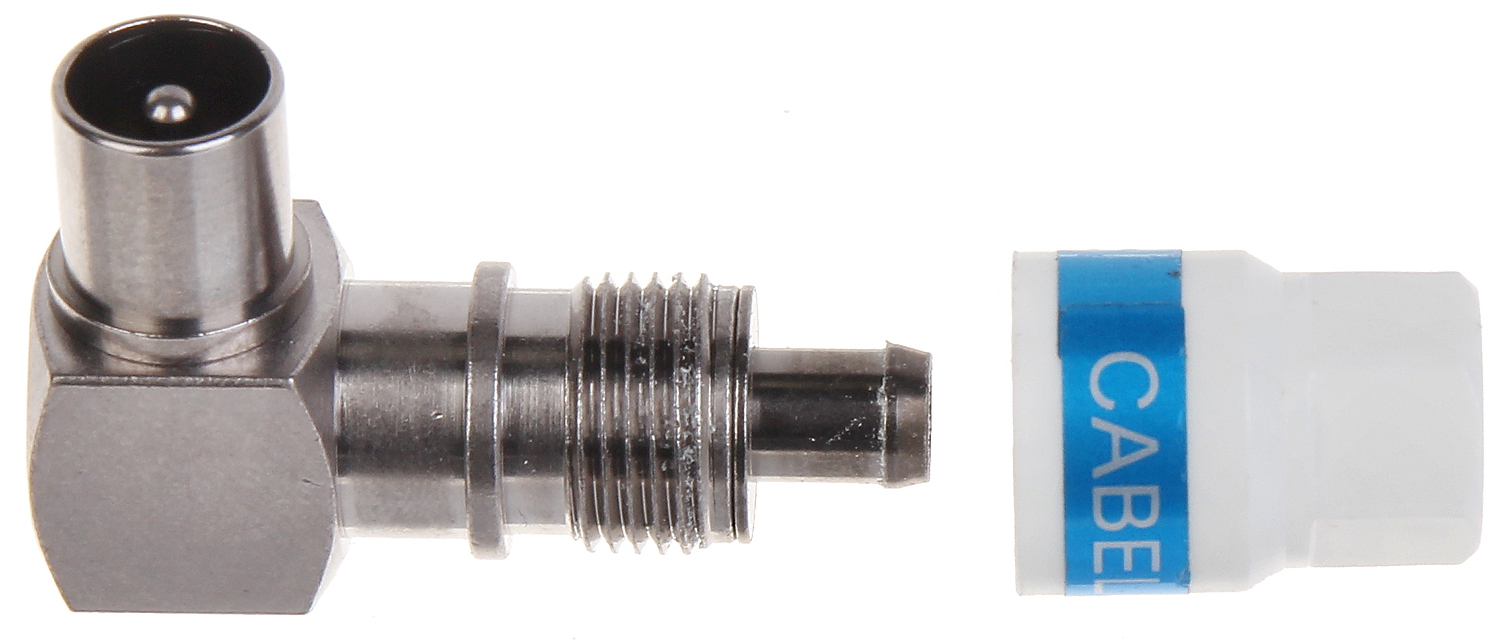

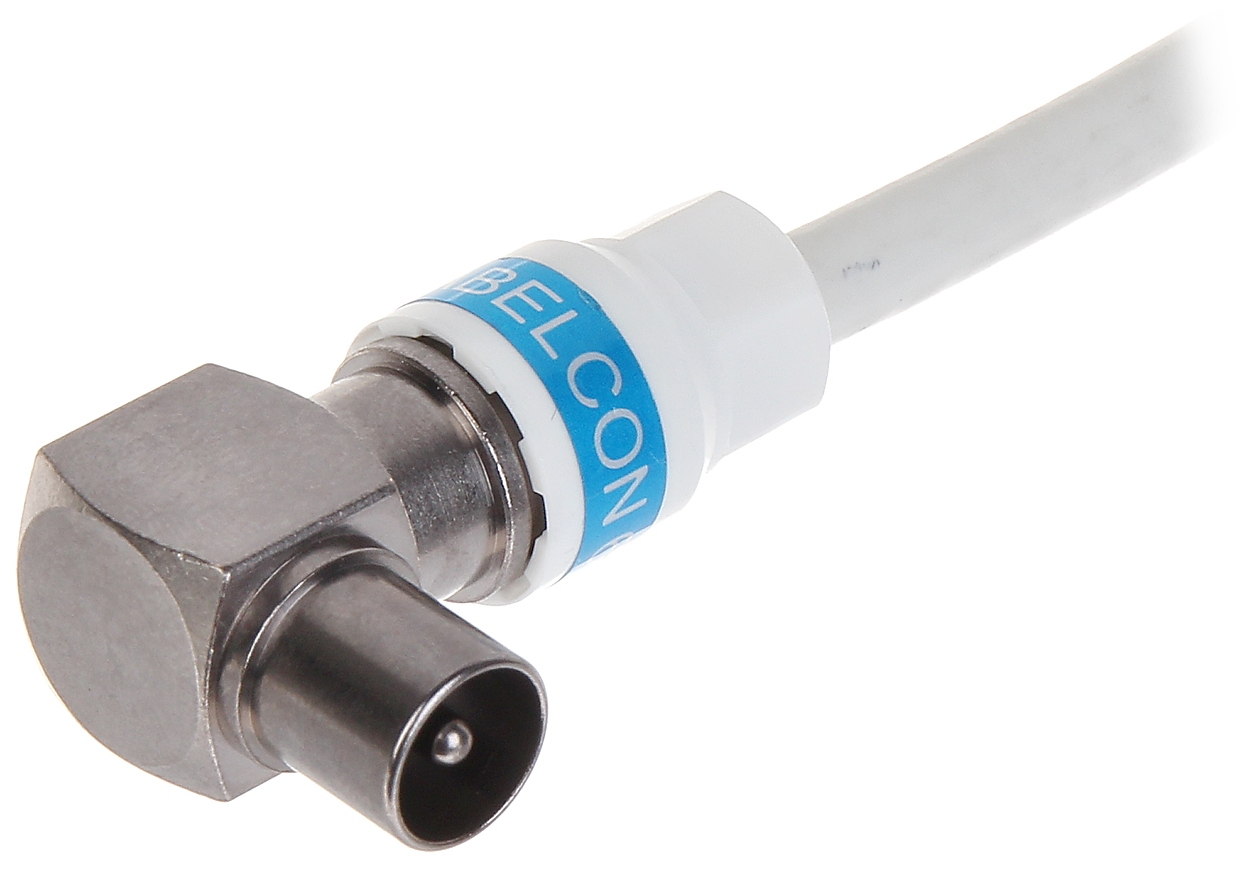

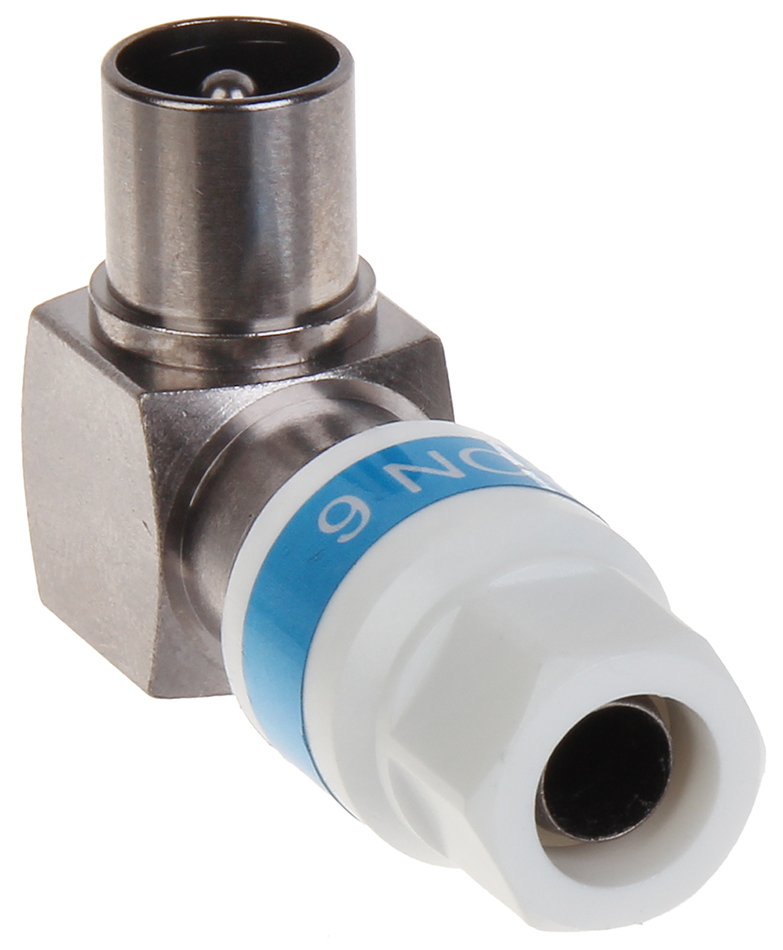

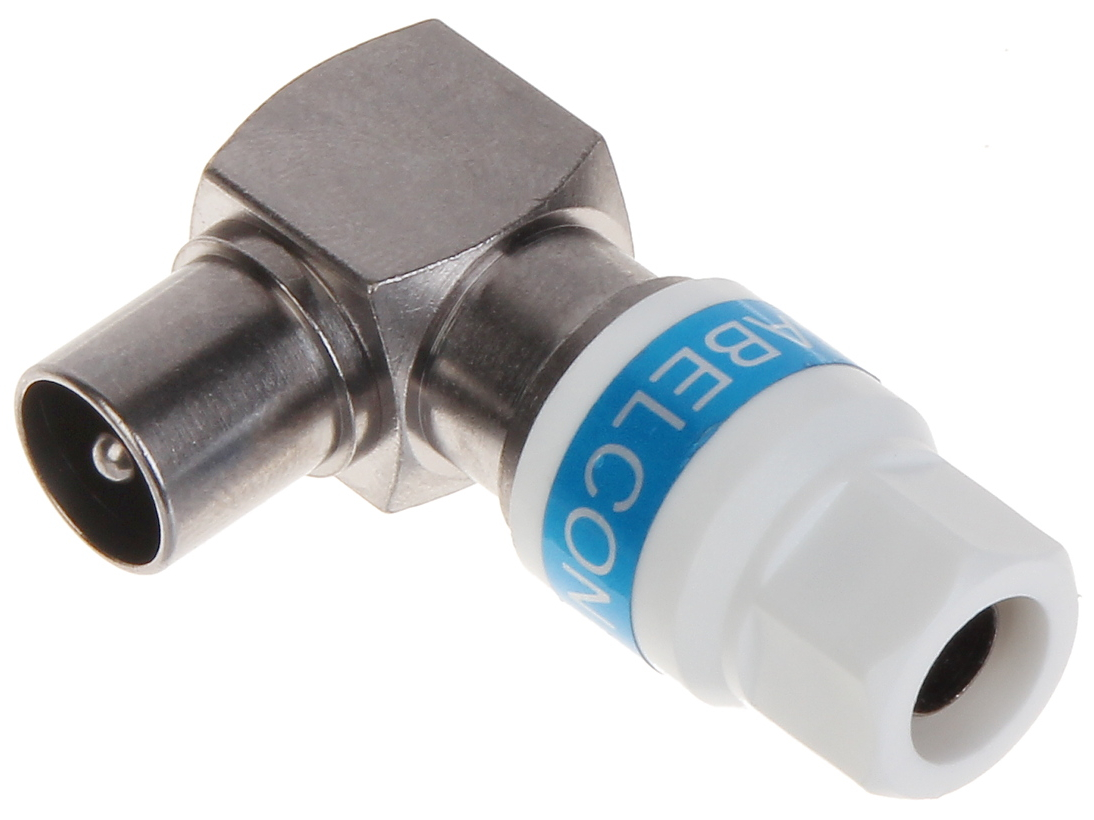

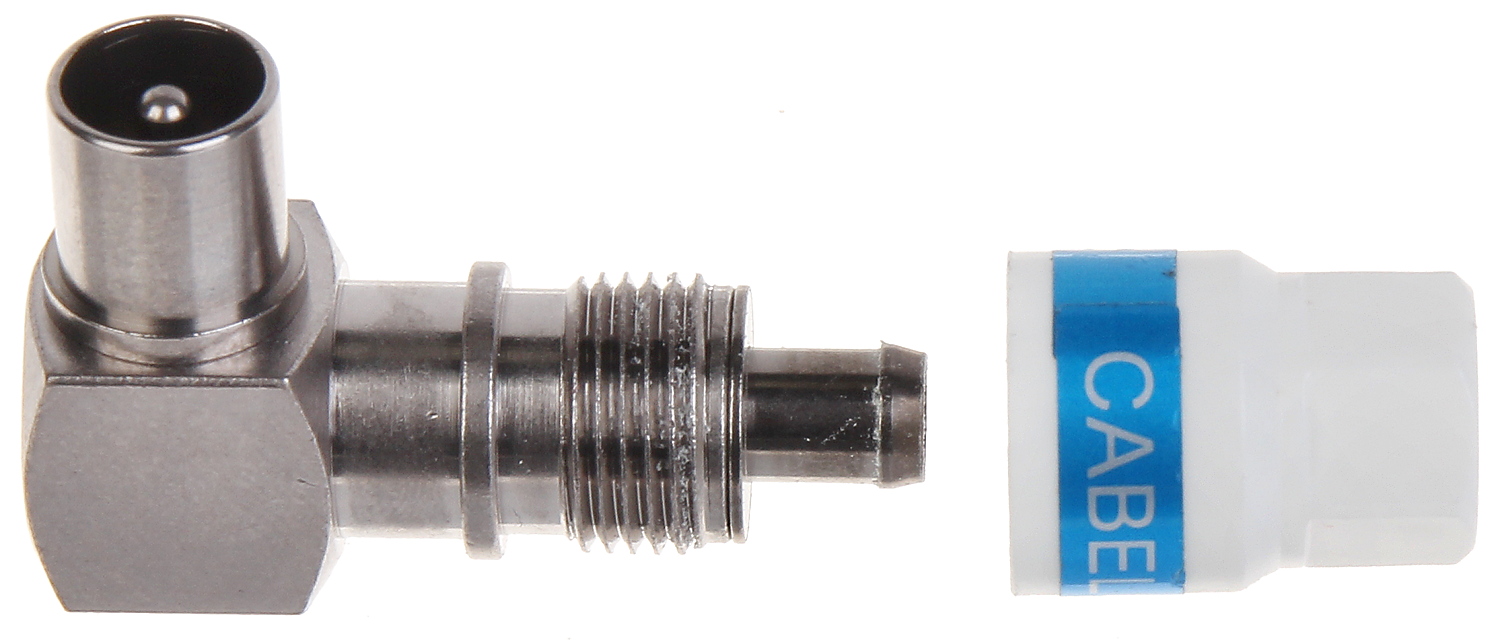

Connector type: IEC - Angular plug ; Attachment of connector elements: Twisting on ; Application: Coaxial cable ; Cable diameter: max. 7.5 mm ;
| Connector type: | IEC - Angular plug |
| Attachment of connector elements: | Twisting on |
| Shield fastening: | Twisting-on |
| Wire mounting: | Pressing |
| Application: | Coaxial cable |
| Dielectric diameter: | 4.9 ... 5.1 mm |
| Cable diameter: | max. 7.5 mm |
| Impedance: | 75 Ω |
| Material: | Metal / PET |
| Watertightness: |  |
| Example of application: | |
| Main features: | |
| Weight: | 0.022 kg |
| Dimensions: | 39 x 24 x 14 mm |
| Manufacturer / Brand: | CABELCON |
| Guarantee: | 2 years |
Brand:
Signal
