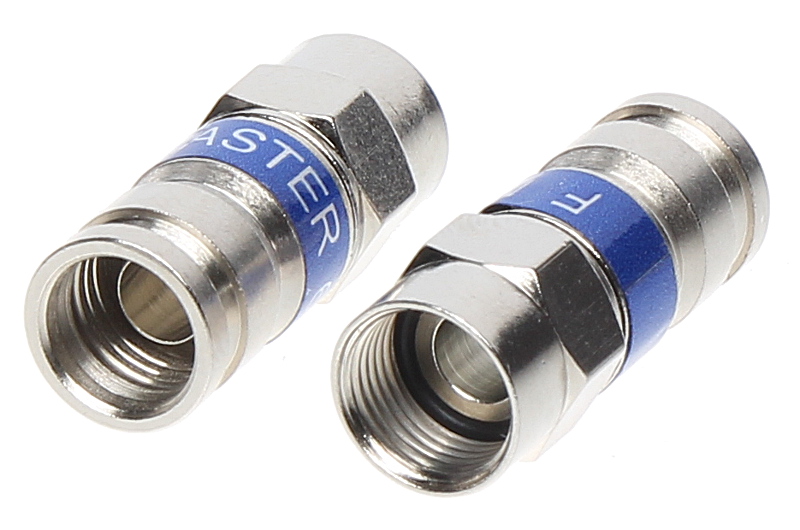

Connector type: | "F" Straight plug |
Attachment of connector elements: | Compression mounting |
Application: | Coaxial cable |
Impedance: | 75 Ω |
Return loss: | - 28 dB to 3 GHz |

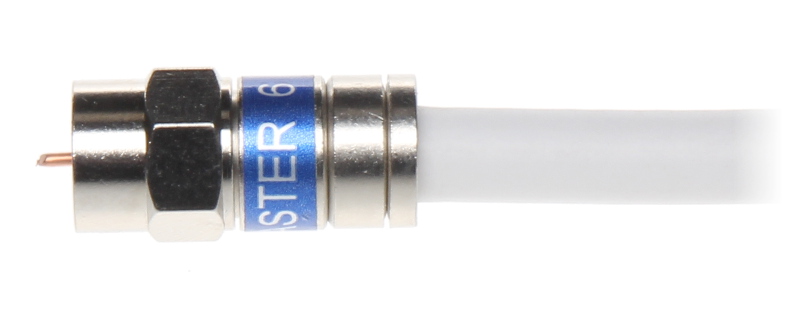

Wire mounting: | ![]() |
Cable diameter: | max. 7.2 mm |
Shield fastening: | Compression mounting |
Insertion loss: | - 0.2 dB to 3 GHz |
Shielding: | - 80 dB |
Material: | Brass (Nickel-platted) |
Watertightness: | ![]() |
Example of application: | |
Main features: | |
Weight: | 0.009 kg |
Dimensions: | Ø 13 mm x 28 mm |
Guarantee: | 2 years |
