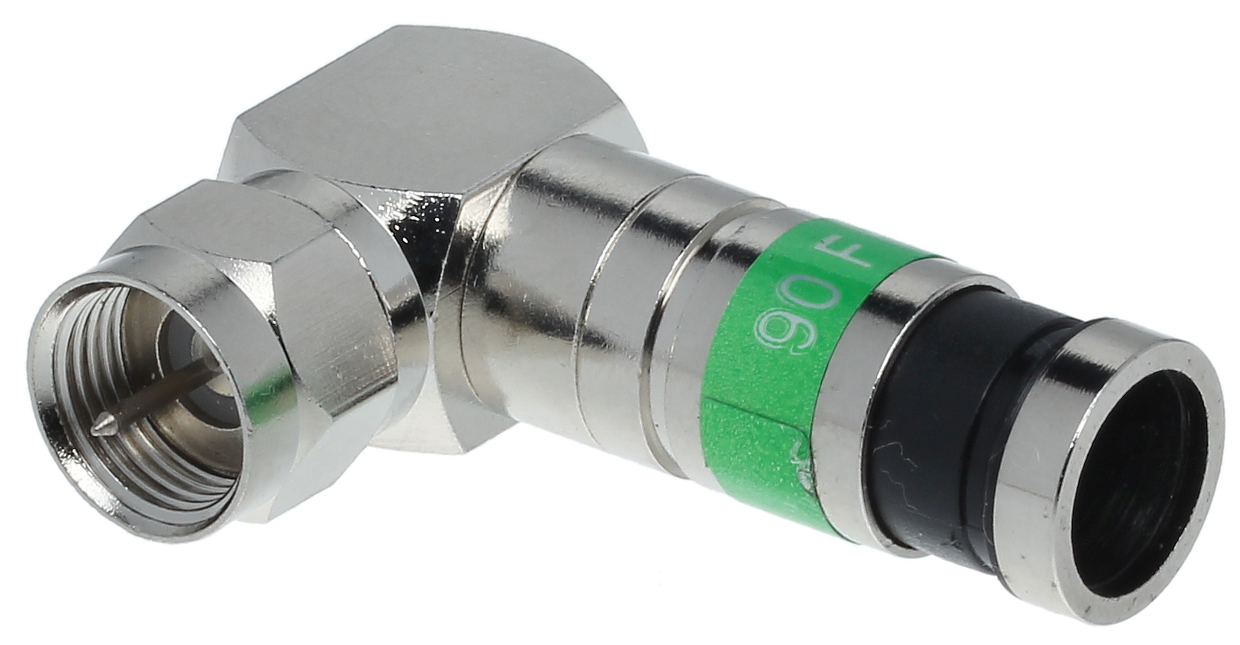

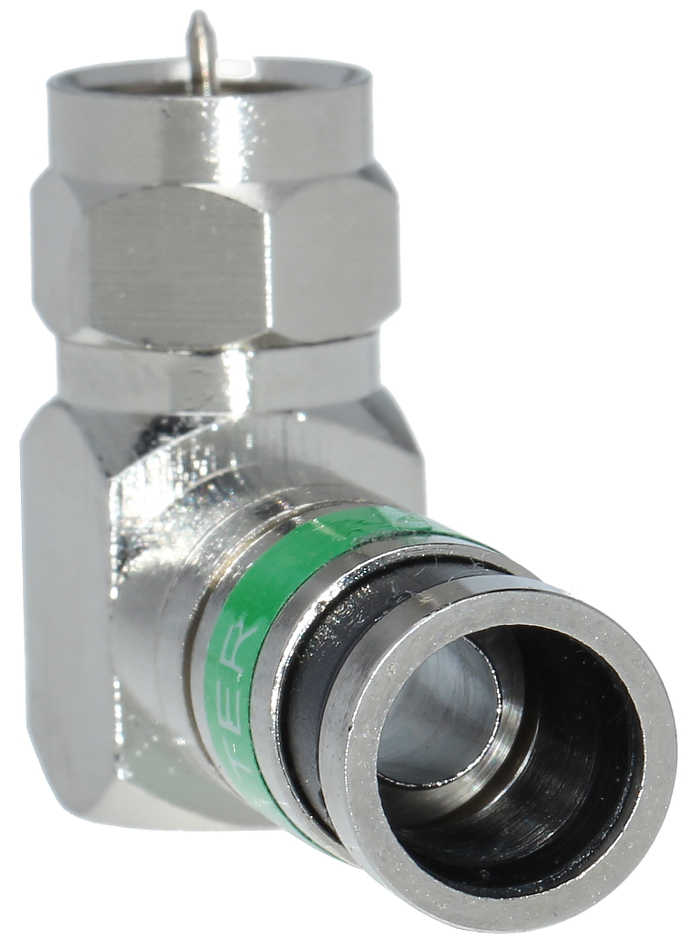

ANGULAR COMPRESSION PLUG F-WK/ZAC-TRI113

1.03
(Включая налог 21%)
F-WK/ZAC-TRI113
60 шт.
+
Connector type: "F" Angular plug ; Attachment of connector elements: Compression mounting ; Application: Coaxial cable ; Cable diameter: max. 8.5 mm ;
Connector type: "F" Angular plug
Attachment of connector elements: Compression mounting
Application: Coaxial cable
Dielectric diameter: max. 6.5 mm
Impedance: 75 Ω
Wire mounting: Pressing
Cable diameter: max. 8.5 mm
Shield fastening: Compression mounting
Material: Brass (Nickel-platted)
Watertightness:
Example of application: Triset113
Main features:
  • Wide frequency range
  • Very low loss in the whole operating band
  • Perfect matching to the transmission line within the whole operating band
  • Watertightness of connector with cable connection
  • Resistance to corrosion - made of non-ferrous metals and highest-quality dielectric
  • Properly compressed connection is highly resistant to break
  • Many patent-pending solutions
  • To crimp use the crimping tool ZAC/MSR-2K, HT-5082R
  • Weight: 0.024 kg
    Dimensions: 12  x 39  x 27 mm
    Guarantee: 2 years
    Brand:
    Master
