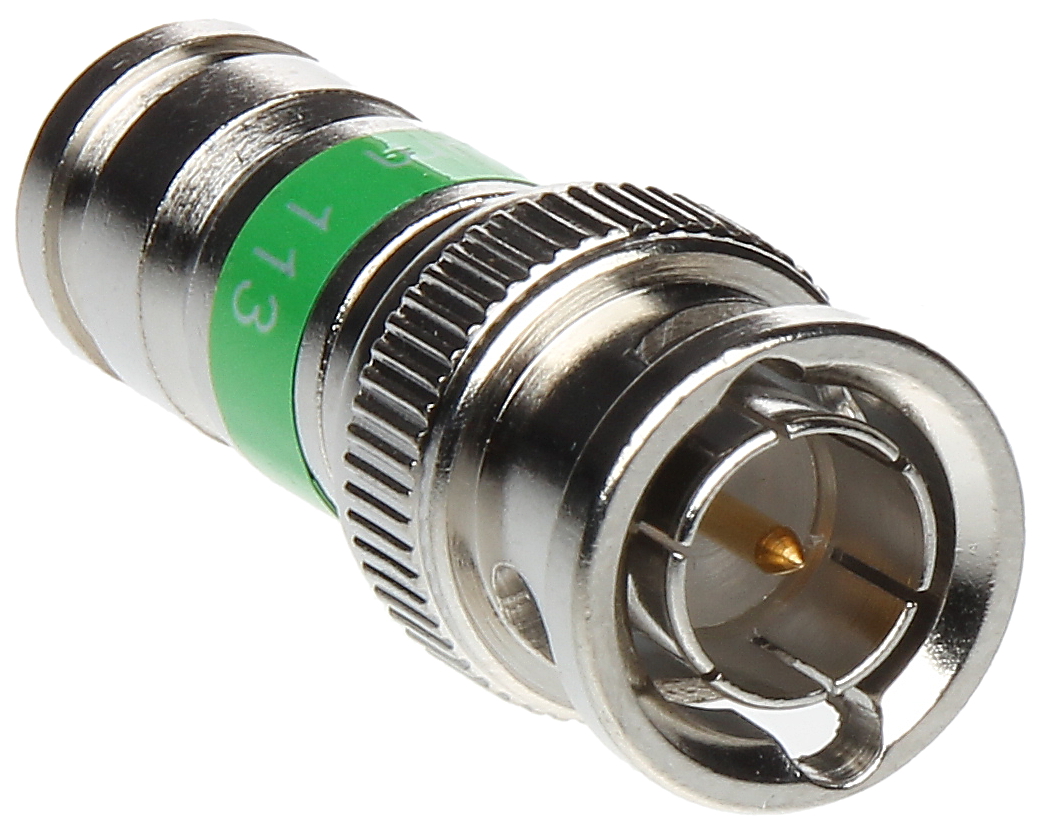

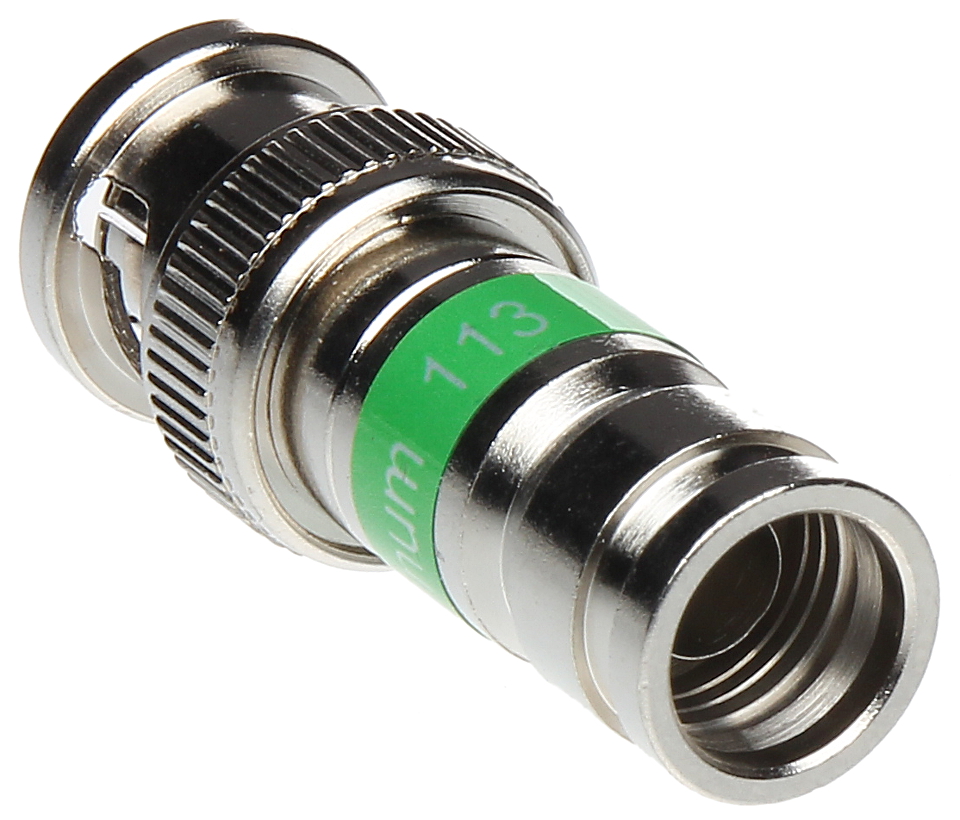

COMPRESSION PLUG BNC-W/ZAC-TRI113/MSR

0.94
(Включая налог 21%)
BNC-W/ZAC-TRI113/MSR
Нет в наличии
Connector type: BNC Straight plug ; Attachment of connector elements: Compression mounting ; Application: Coaxial cable ; Cable diameter: max. 8.0 mm ; Example of application: Triset113 ;
Connector type: BNC Straight plug
Attachment of connector elements: Compression mounting
Impedance: 75 Ω
Material: Brass (Nickel-platted)
Application: Coaxial cable
Wire mounting: Pressing
Cable diameter: max. 8.0 mm
Shield fastening: Compression mounting
Watertightness:
Example of application: Triset113
Main features:
  • Wide frequency range
  • Watertightness of connector with cable connection
  • Resistance to corrosion - made of non-ferrous metals and highest-quality dielectric
  • Very low loss in the whole operating band
  • Perfect matching to the transmission line within the whole operating band
  • Properly compressed connection is highly resistant to break
  • Many patent-pending solutions

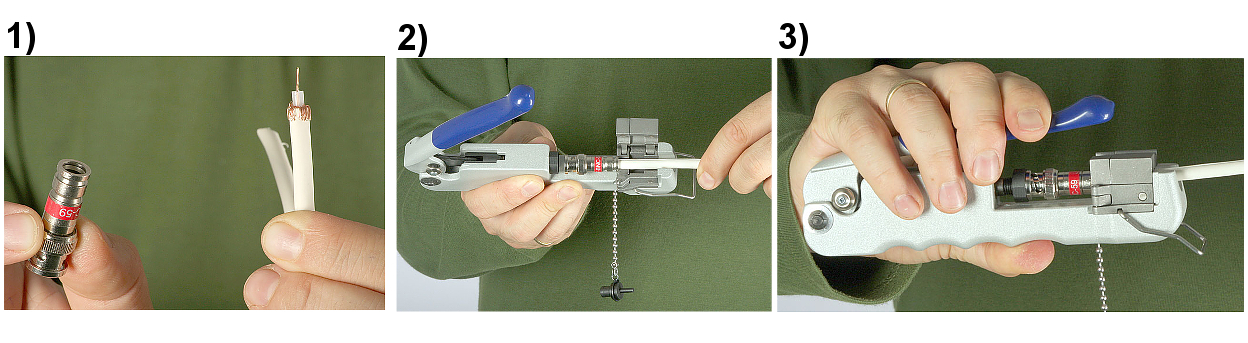

  • To crimp use the crimping tool HT-5082R
  • Weight: 0.015 kg
    Dimensions: Ø 14.4  x 37 mm
    Guarantee: 2 years
    Brand:
    Master
