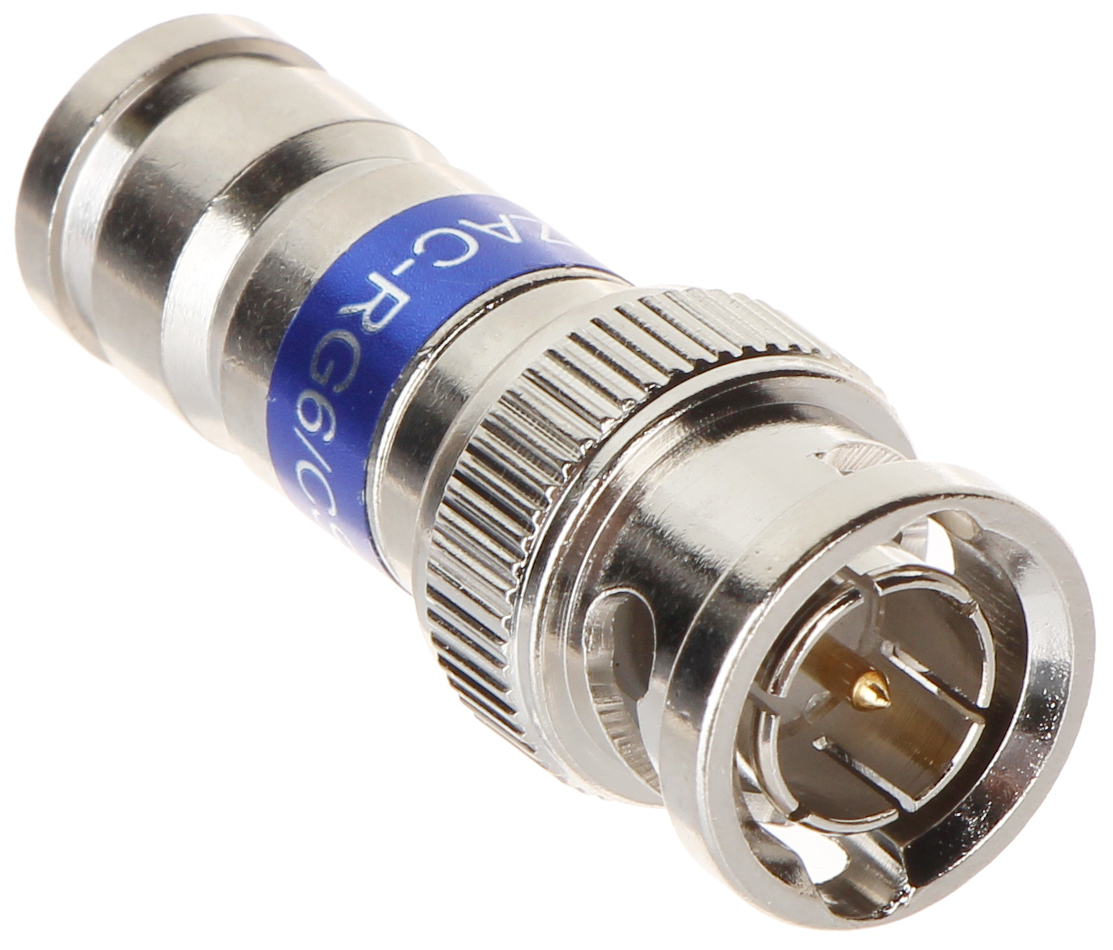

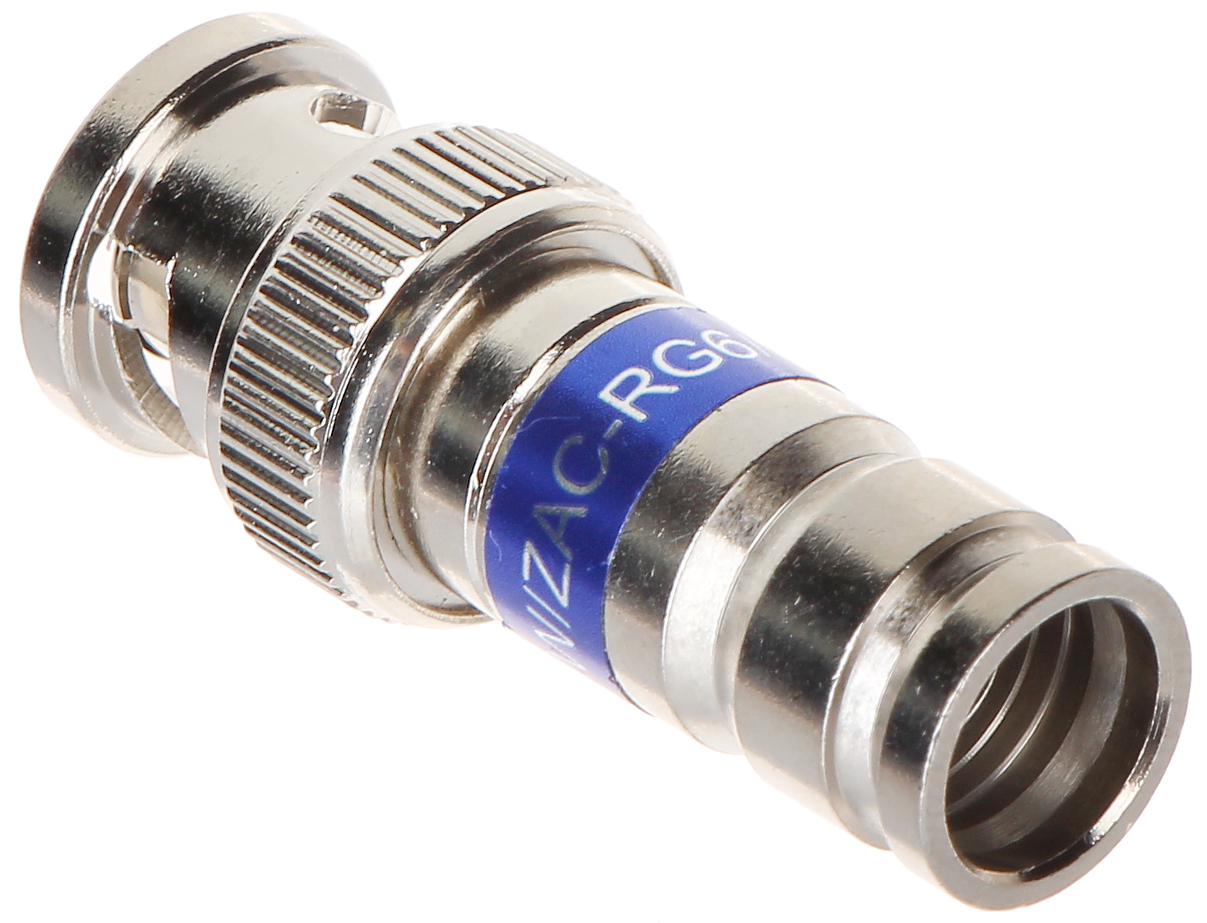

COMPRESSION PLUG BNC-W/ZAC-RG6/CSR
Войдите в учётную запись, чтобы мы могли сообщить вам об ответе
Connector type: BNC - Straight plug ; Attachment of connector elements: Compression mounting ; Application: Coaxial cable ; Cable diameter: max. 8.0 mm ; Example of application: RG6, NS100-TRISHIELD, TCC-113-TRISHIELD, TRISET-113 ;
| Connector type: | BNC - Straight plug |
| Attachment of connector elements: | Compression mounting |
| Impedance: | 75 Ω |
| Material: | Brass (Nickel-platted) |
| Application: | Coaxial cable |
| Wire mounting: | Pressing |
| Cable diameter: | max. 8.0 mm |
| Shield fastening: | Compression mounting |
| Watertightness: |  |
| Example of application: | RG6, NS100-TRISHIELD, TCC-113-TRISHIELD, TRISET-113 |
| Main features: | |
| Weight: | 0.015 kg |
| Dimensions: | Ø 14.5 mm x 37 mm |
| Guarantee: | 2 years |
Brand:
Delta Plug
