In section: 500 m . Price for 1m when buying a whole roll ; Coaxial cable: TRISET ; Inner conductor: Ø 1.05 mm Cu Wire ; Dielectric: Ø 4.6 mm ; Shield: - Al/PET/SY ;

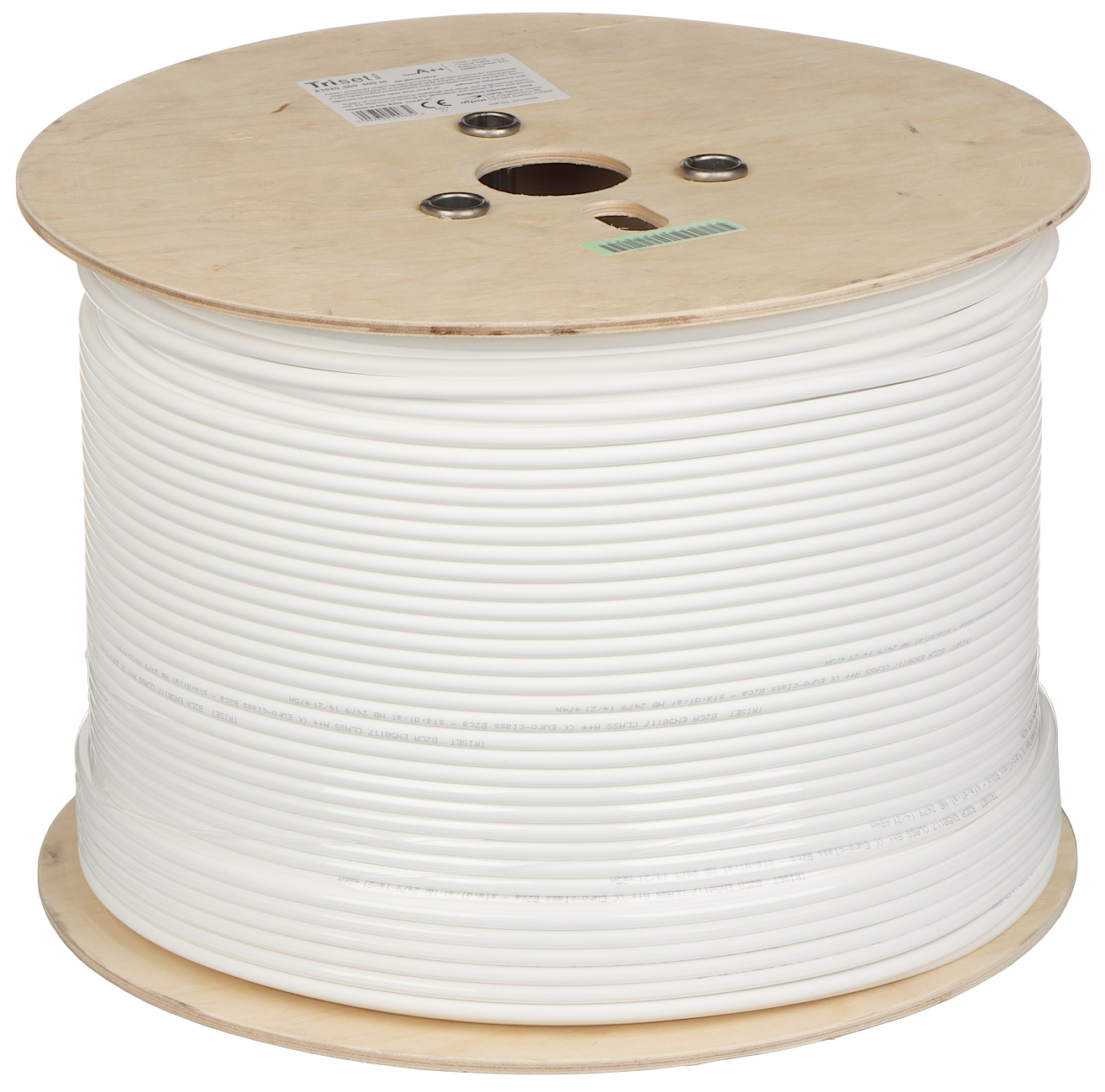

| In section: | 500 m . Price for 1m when buying a whole roll |

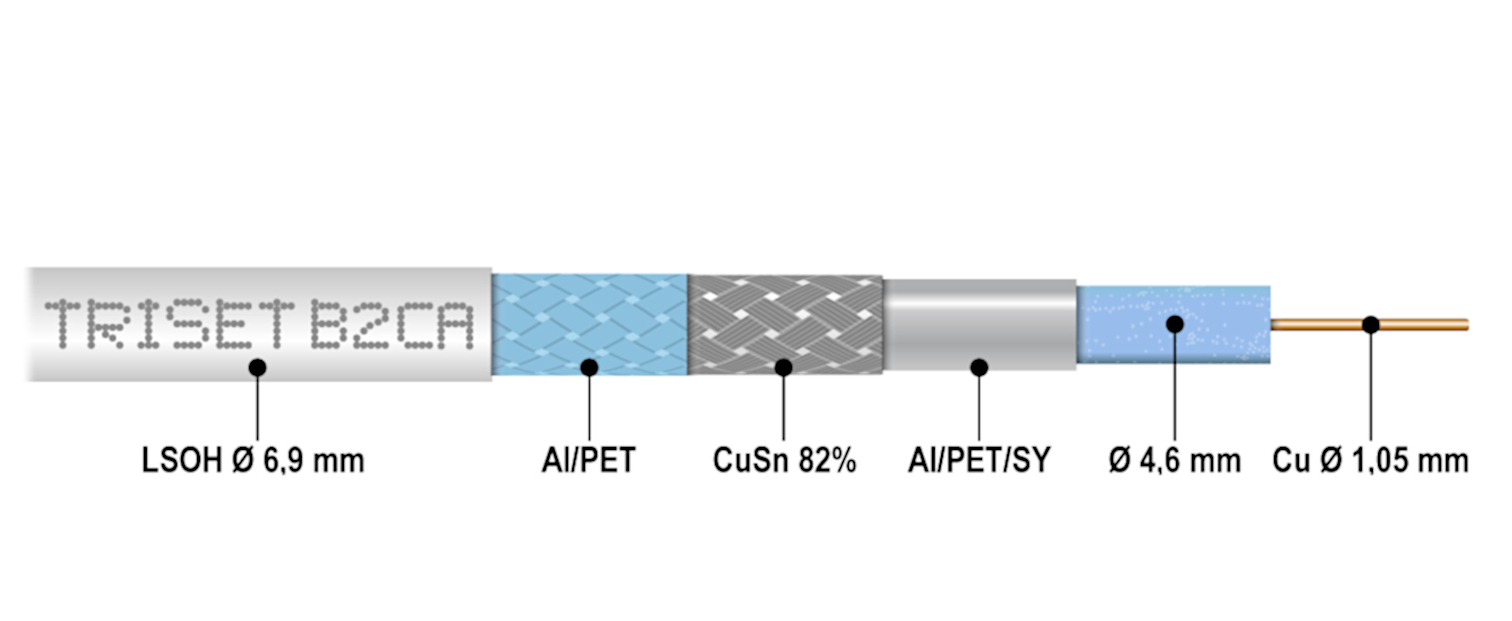

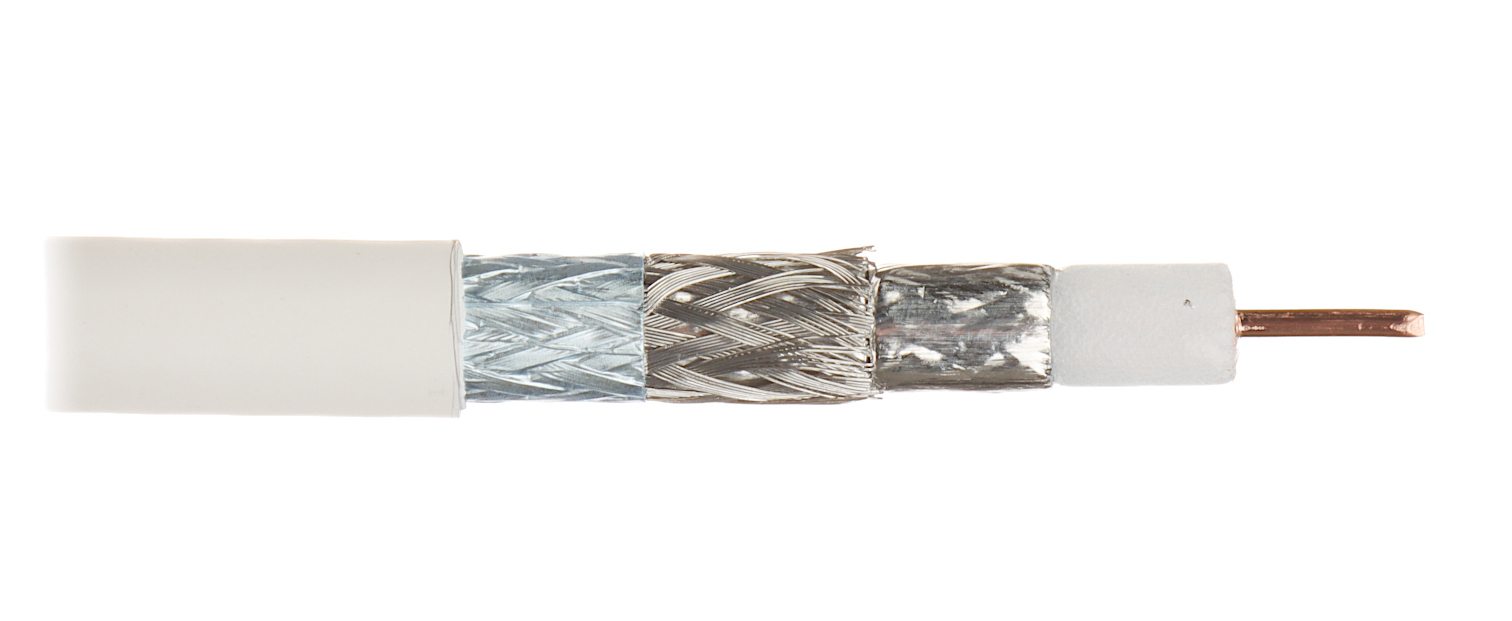

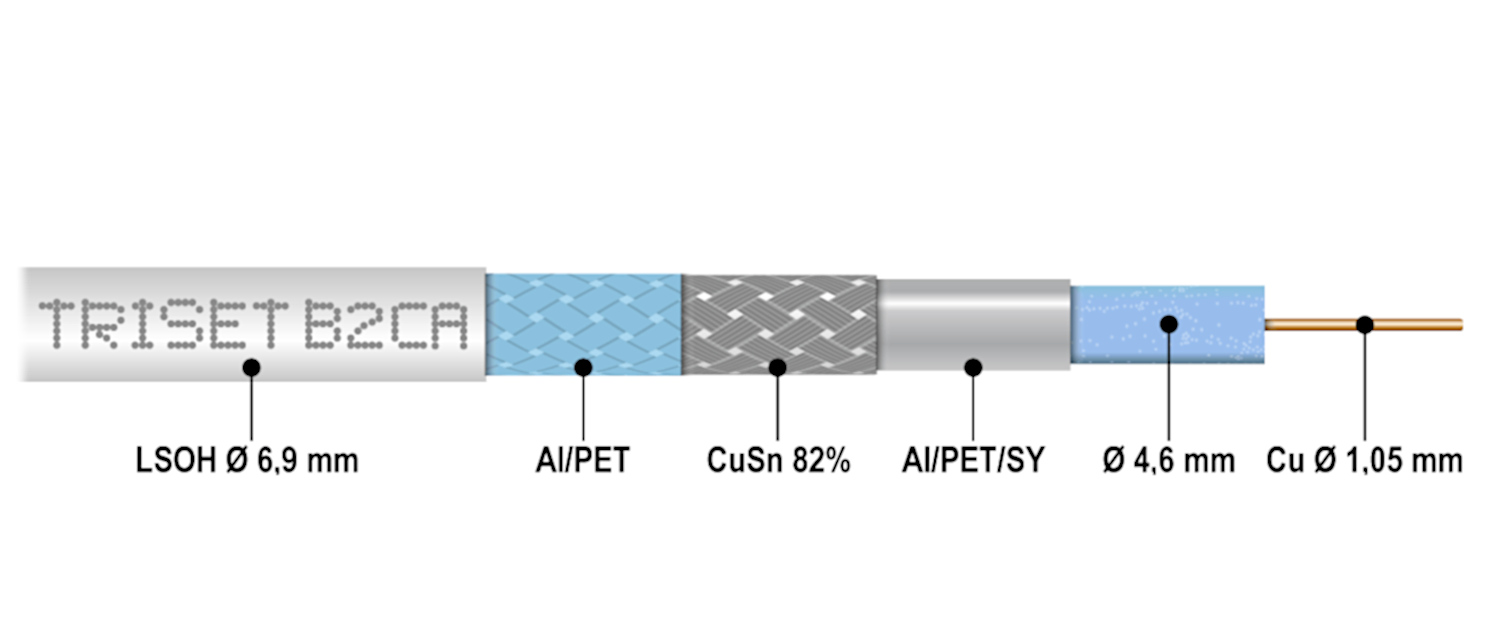

| Coaxial cable: | TRISET |
| Inner conductor: | Ø 1.05 mm Cu Wire |
| Dielectric: | Ø 4.6 mm (physical foam) |
| Shield: | Triple |
| Braid: | 82 % - Cu + Sn wire |
| Outer coating: | Ø 6.9 mm PVC LSZH |
| Coating color: | White |
| Minimal bend radius: | 35 mm |
| Impedance: | 75 Ω |
| Capacity: | 52 pF/m |
| Resistance of the inner conductor for DC current: | 20 Ω/km |

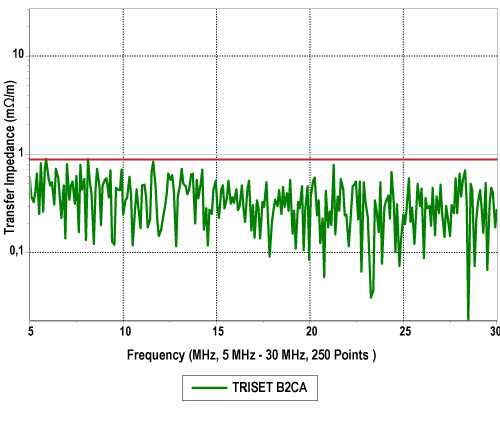

| Screening efficiency: | > 105 dB @30 ... 1000 MHz > 95 dB @1 ... 2 GHz > 85 dB @2 ... 3 GHz |
| Shortening wave coefficient: | 85 % |
| Weight: | 54 kg/km |
| Main features: | |
| Guarantee: | 2 years |
Brand:
Triset
