In section: 100 m . Price for 1m when buying a whole roll ; Coaxial cable: TRISET ; Inner conductor: Ø 1.02 mm Cu Wire ; Dielectric: Ø 4.6 mm ; Shield: : Al/PET/Al ;

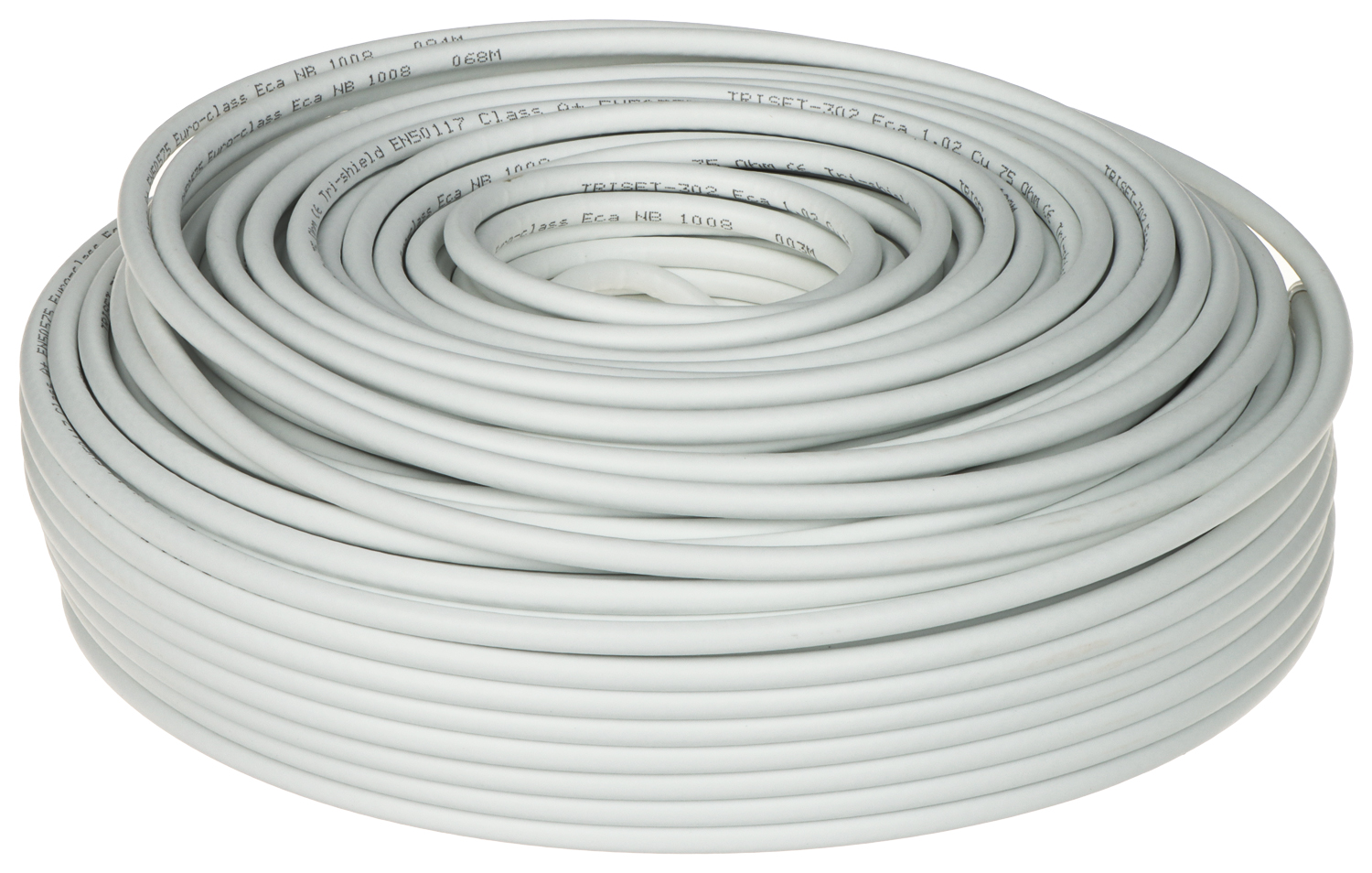

| In section: | 100 m . Price for 1m when buying a whole roll |

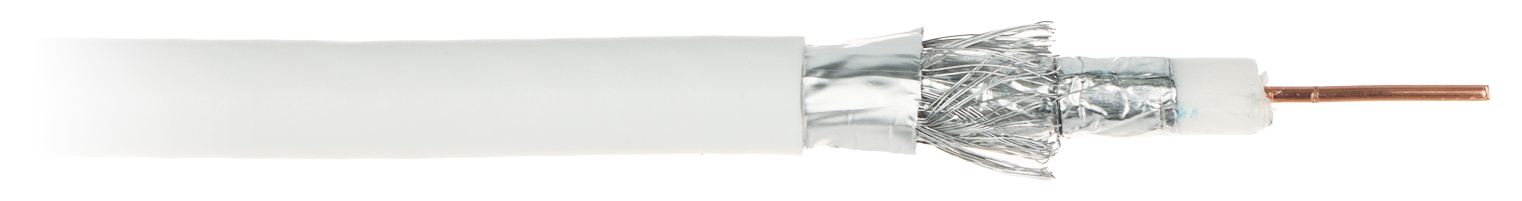

| Coaxial cable: | TRISET |
| Inner conductor: | Ø 1.02 mm Cu Wire |
| Dielectric: | Ø 4.6 mm (physical foam) |
| Shield: | |
| Braid: | 77 % Al wire |
| Outer coating: | Ø 7 mm PVC |
| Coating color: | White |
| Minimal bend radius: | 70 mm |
| Impedance: | 75 Ω ± 1 % |
| Capacity: | 52.5 pF/m |
| Resistance of the inner conductor for DC current: | 21.91 Ω/km |
| Screening efficiency: | > 105 dB @30 ... 1000 MHz > 95 dB @1000 ... 2000 MHz |
| Main features: | |
| Manufacturer / Brand: | TRISET |
| Guarantee: | 2 years |
Brand:
Triset
