In section: 500 m . Price for 1m when buying a whole roll ; Coaxial cable: TRISET ; Inner conductor: Ø 1.02 mm Cu Wire ; Dielectric: Ø 4.8 mm ; Shield: - Al/PET/Al ; Main features: Reaction to fire class in accordance with CPR - B2ca-s1a, d1, a1 ;

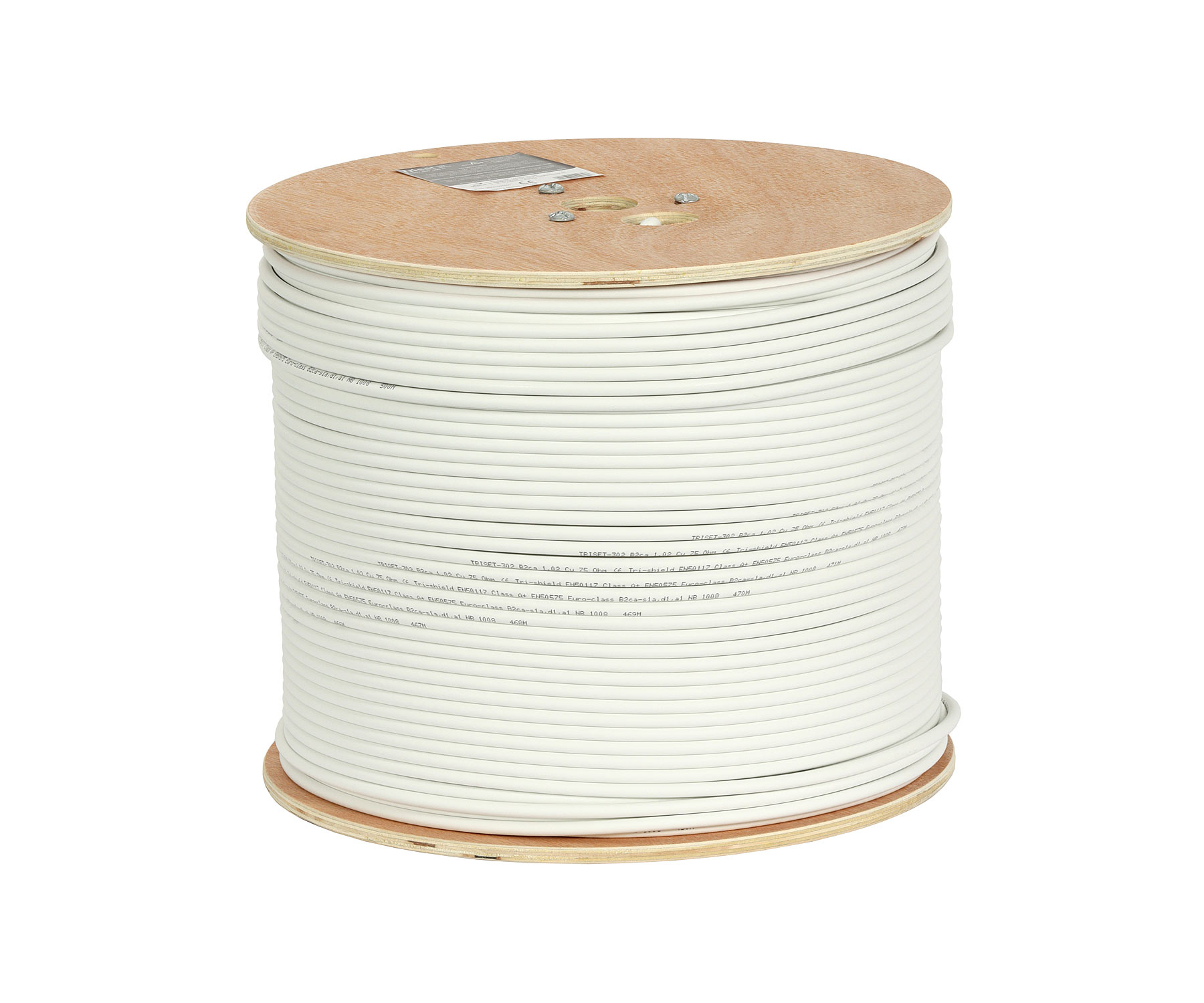

| In section: | 500 m . Price for 1m when buying a whole roll |

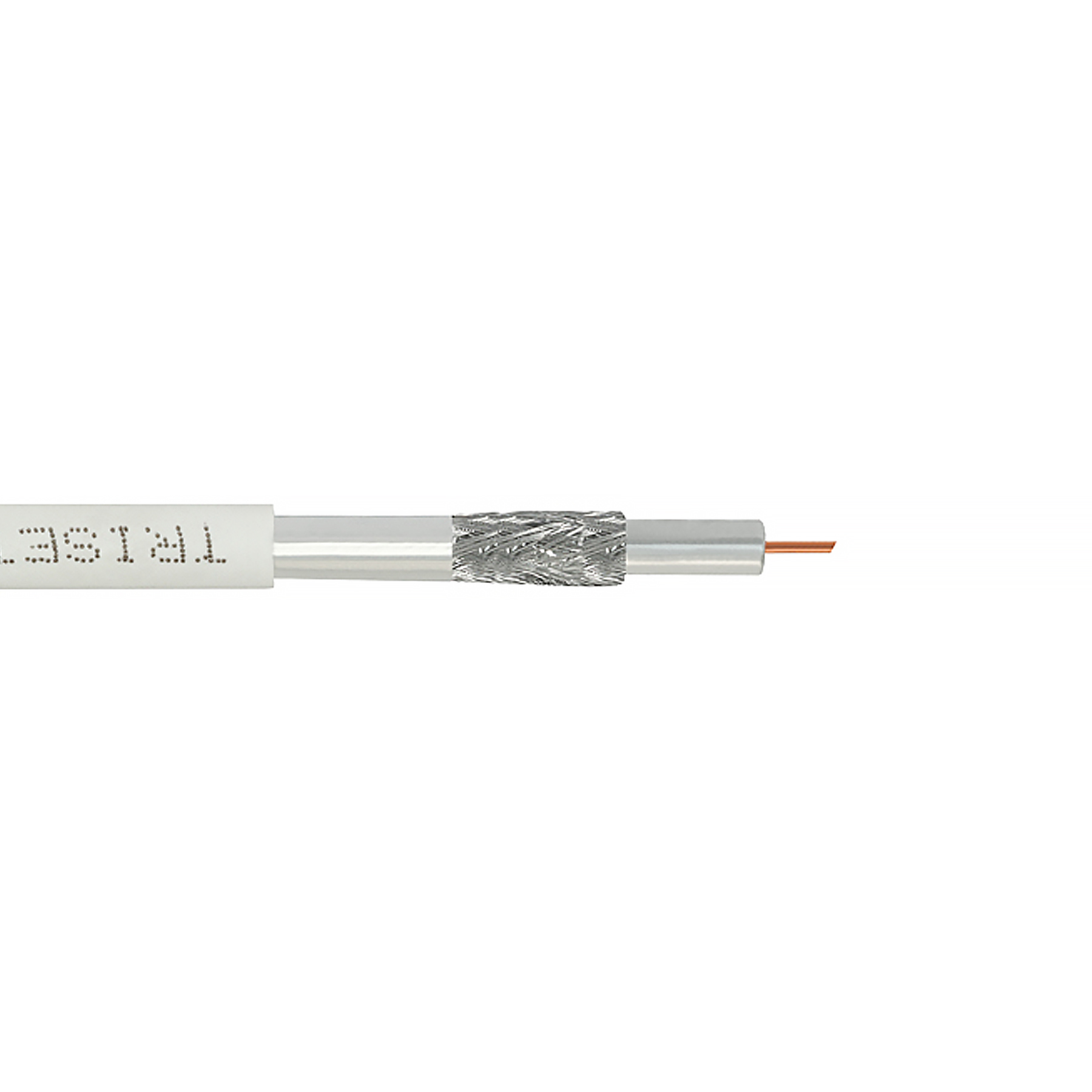

| Coaxial cable: | TRISET |

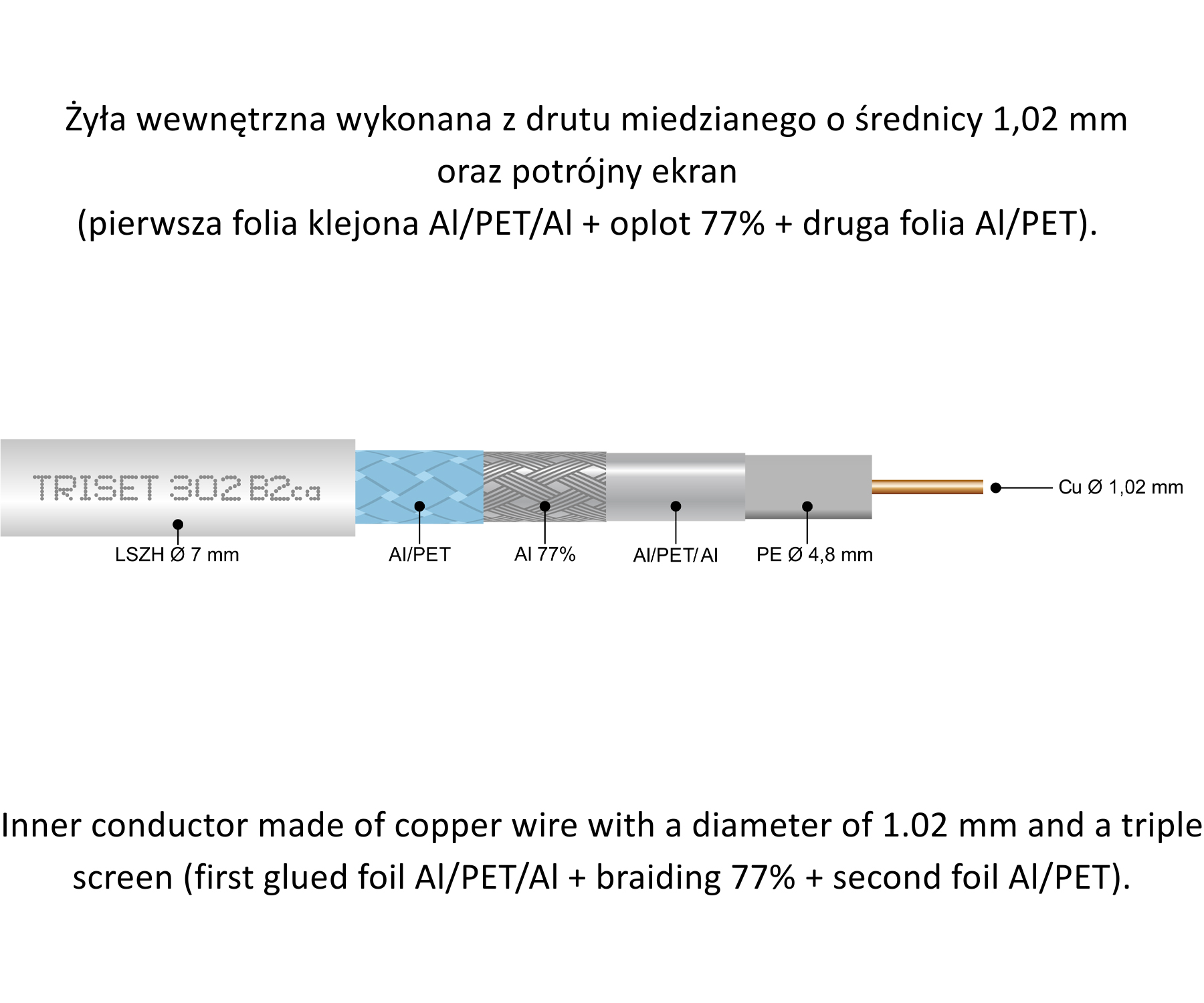

| Inner conductor: | Ø 1.02 mm Cu Wire |
| Dielectric: | Ø 4.8 mm (physical foam) |
| Shield: | Triple |

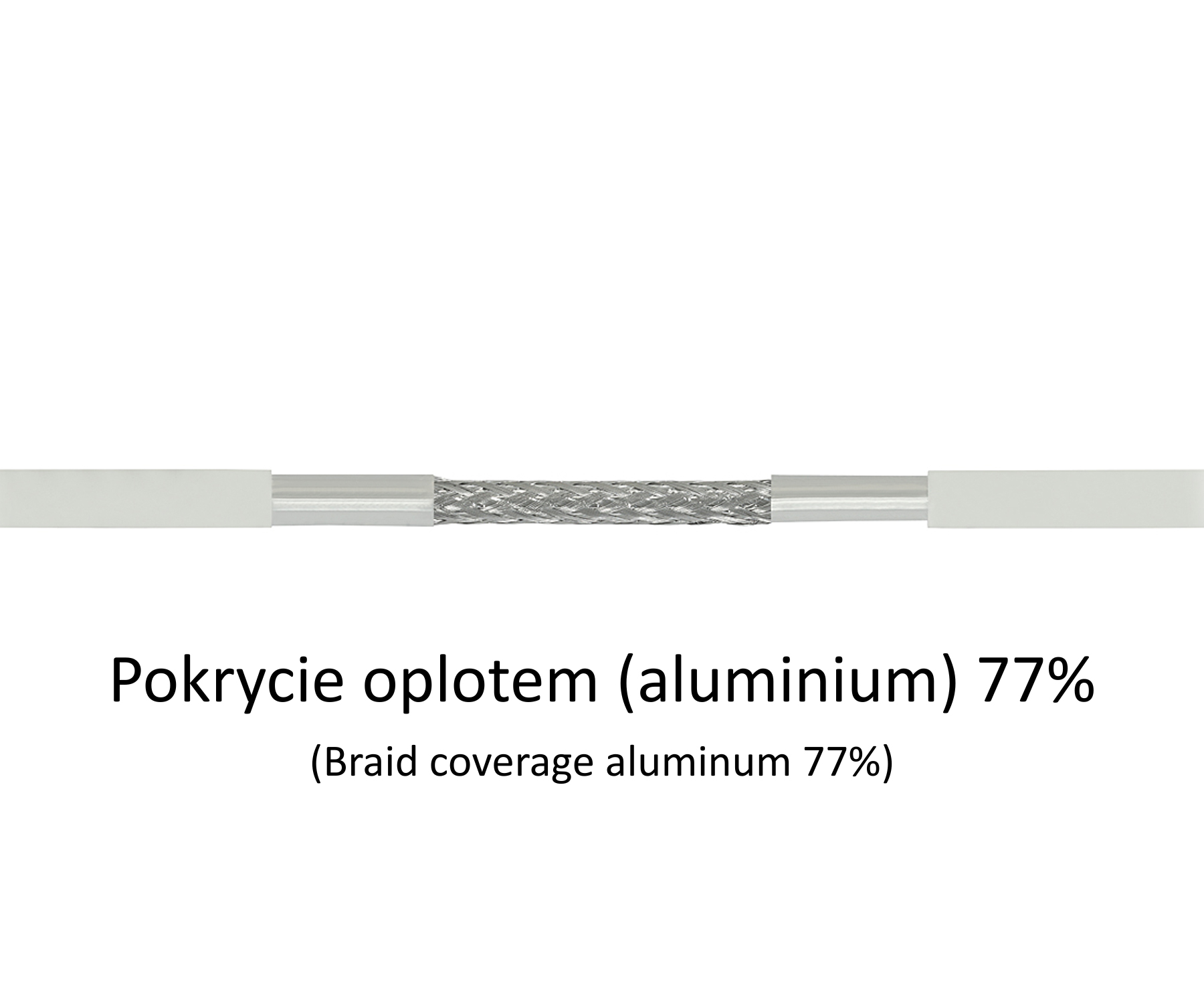

| Braid: | 77 % - Al wire |
| Outer coating: | Ø 7 mm LSZH (LS0H) |
| Coating color: | White |

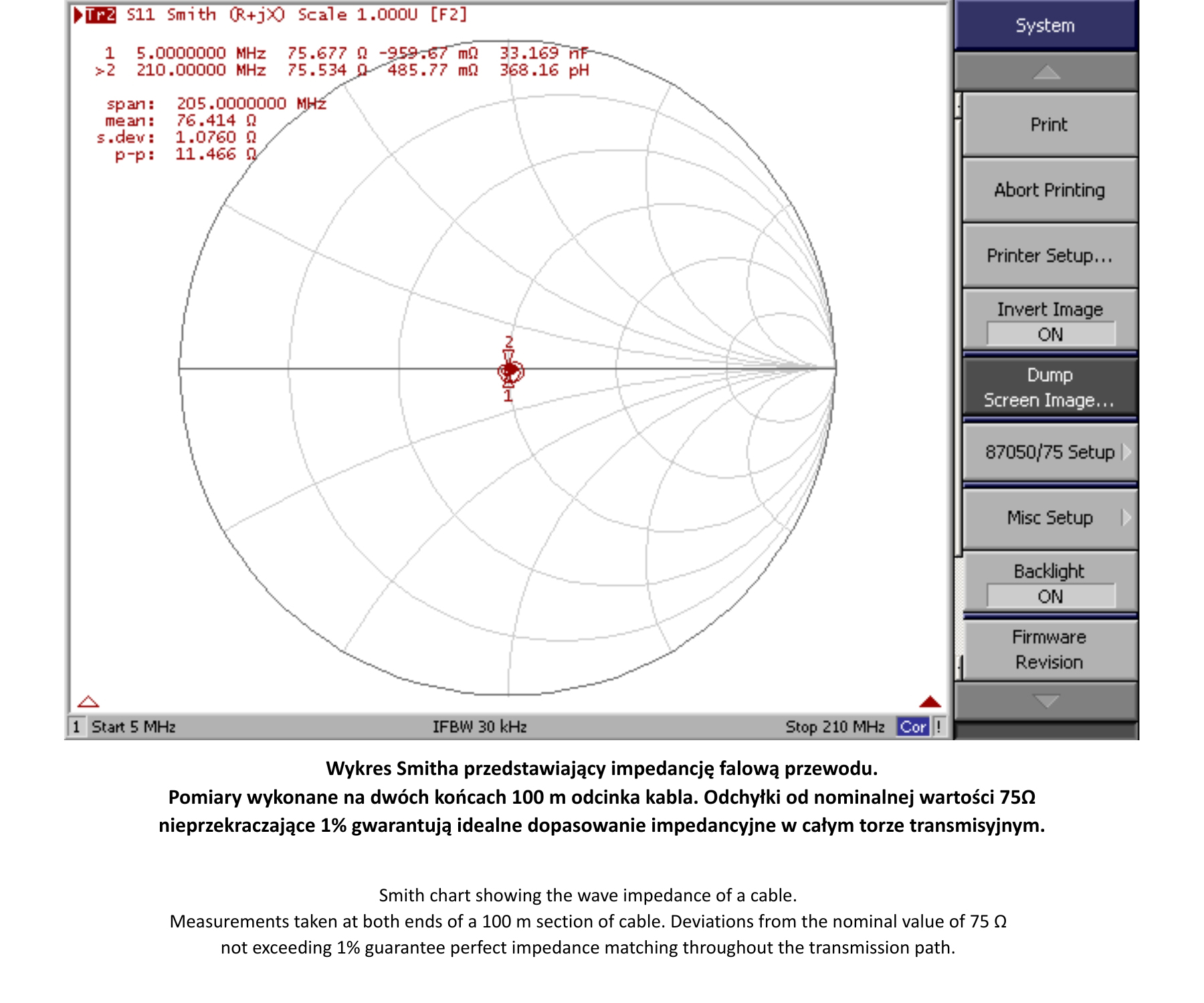

| Impedance: | 75 Ω |
| Capacity: | 52.5 pF/m |
| Resistance of the inner conductor for DC current: | 21.91 Ω/km |

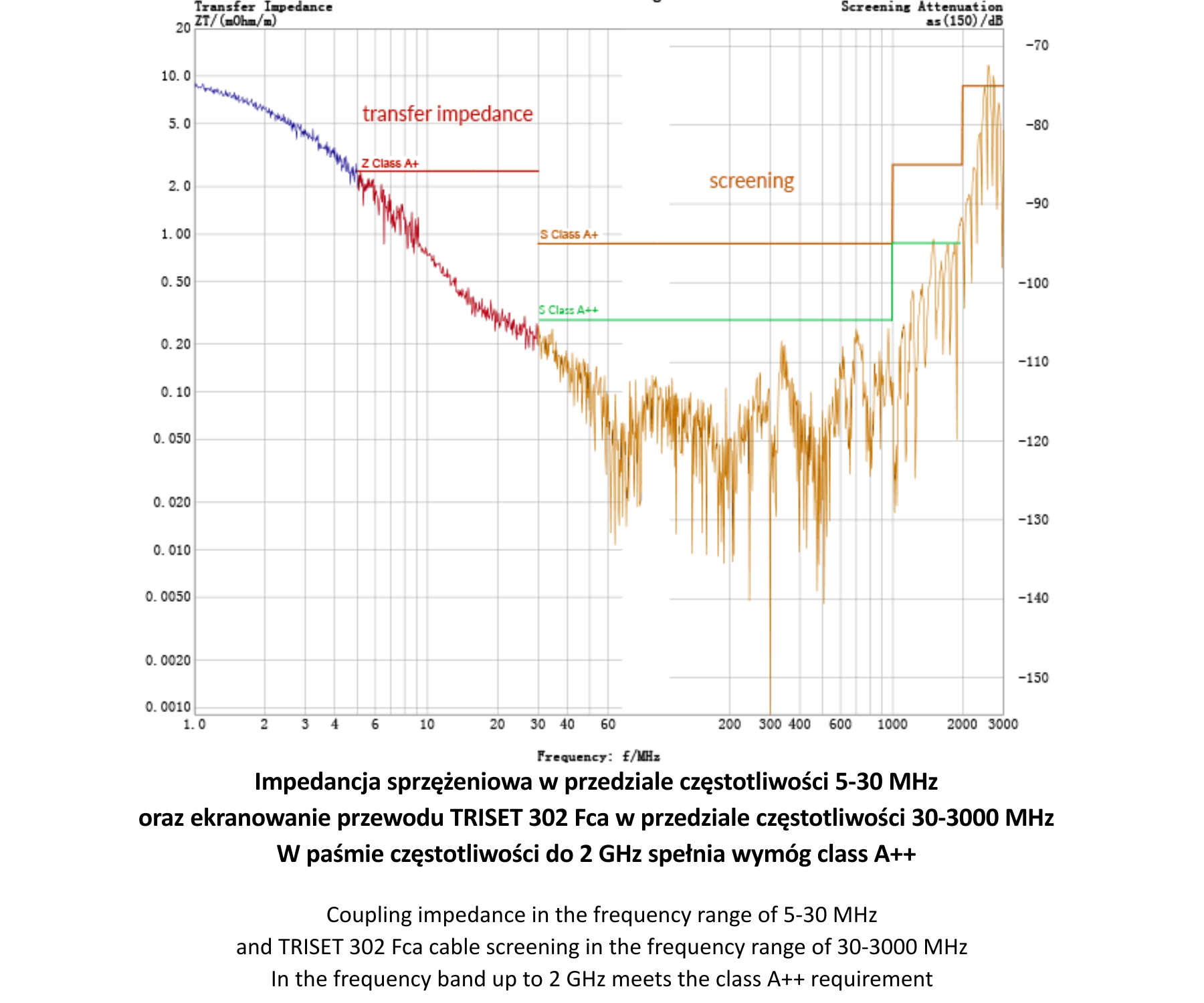

| Screening efficiency: | > 105 dB @30 ... 1000 MHz > 95 dB @1 ... 2 GHz > 85 dB @2 ... 3 GHz |
| Main features: | |
| Manufacturer / Brand: | TRISET |
| Guarantee: | 2 years |
Brand:
Triset
