The cable is gel-fitted; In section: 100 m . Price for 1m when buying a whole roll ; Coaxial cable: TRISET ; Inner conductor: Ø 1.13 mm Cu ; Dielectric: Ø 4.8 mm (physical foam) ; Shield: Al/PET/Al ; Cable attenuation at 100m section: 18.1 dB @ 862 MHz ;
| In section: | 100 m . Price for 1m when buying a whole roll |

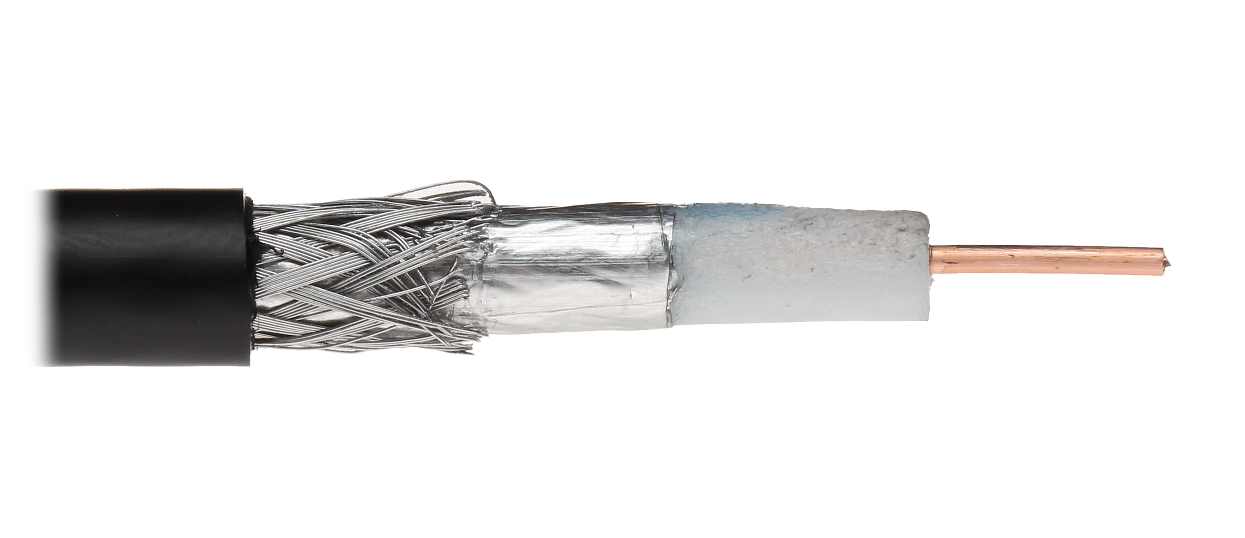

| Coaxial cable: | TRISET |
| Inner conductor: | Ø 1.13 mm Cu Wire |
| Dielectric: | Ø 4.8 mm (physical foam) |
| Shield: | Al/PET/Al - 9 µm / 23 µm / 9 µm |
| Braid: | 81 % Al wire |
| Outer coating: | Ø 6.8 mm PE + gel |
| Coating color: | Black |
| Resistance of the inner conductor for DC current: | 16.85 Ω/km |
| Capacity: | 52 pF/m |
| Dielectric resistance: | 2000 MΩ/km |
| Shortening wave coefficient: | 84 % |
| Impedance: | 75 Ω |
| Main features: | |
| Cable attenuation at 100m section: | 4.5 dB @ 47 MHz 5.8 dB @ 88 MHz 8.0 dB @ 174 MHz 9.2 dB @ 230 MHz 13.2 dB @ 470 MHz 18.1 dB @ 862 MHz 20.1 dB @ 950 MHz 27.7 dB @ 2150 MHz 30.8 dB @ 2400 MHz |
| Guarantee: | 2 years |
Brand:

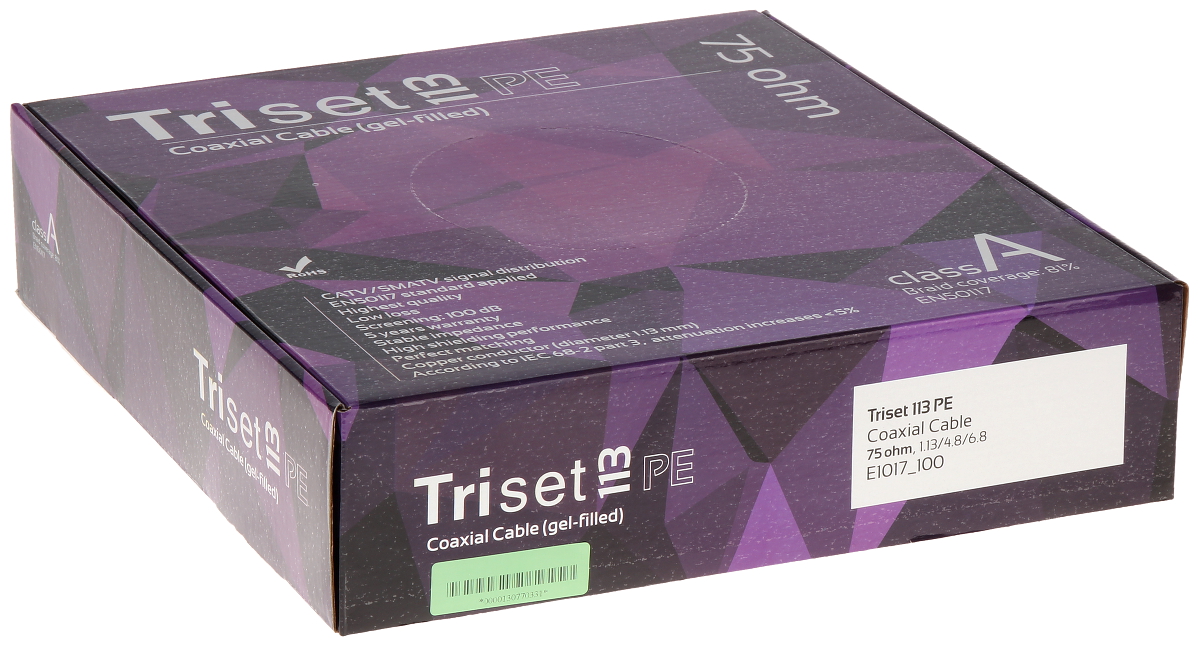

Triset
