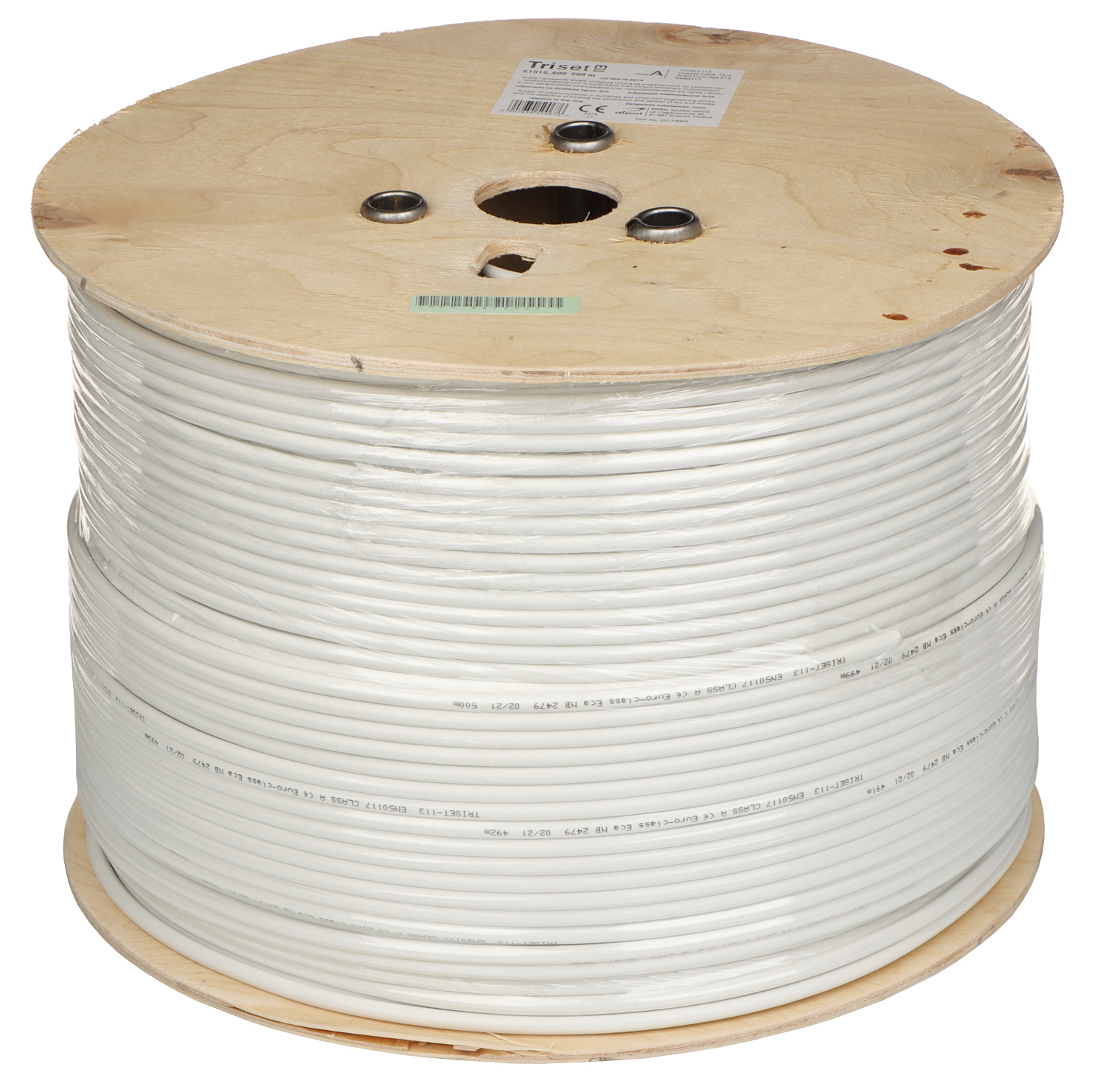

In section: 500 m . Price for 1m when buying a whole roll ; Coaxial cable: TRISET ; Inner conductor: Ø 1.13 mm Cu Wire ; Dielectric: Ø 4.8 mm ;
| In section: | 500 m . Price for 1m when buying a whole roll |
| Coaxial cable: | TRISET |

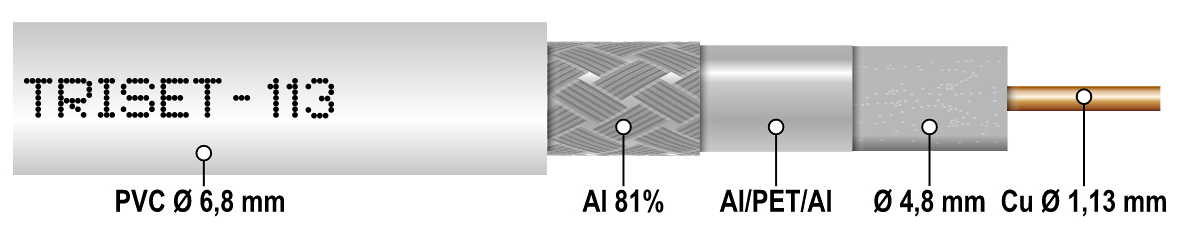

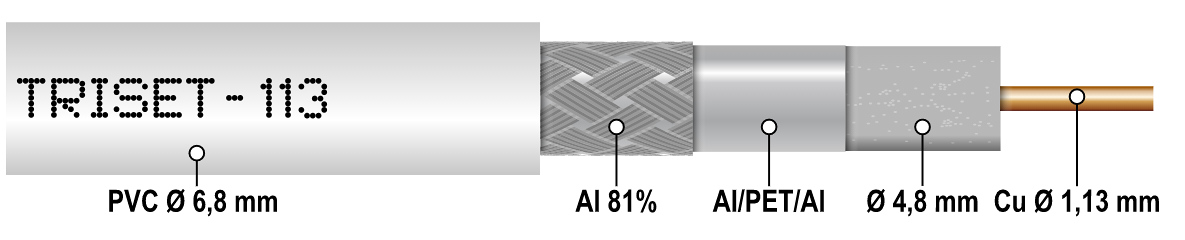

| Inner conductor: | Ø 1.13 mm Cu Wire |
| Dielectric: | Ø 4.8 mm (physical foam) |
| Shield: | Foil - Al/PET/Al |
| Braid: | 81 % Al wire |
| Outer coating: | Ø 6.8 mm PVC |
| Coating color: | White |
| Minimal bend radius: | 30 mm |
| Impedance: | 75 Ω ± 3 |
| Capacity: | 52 pF/m ± 2 |
| Resistance of the inner conductor for DC current: | 16.85 Ω/km |
| Dielectric resistance: | 2000 MΩ/km |

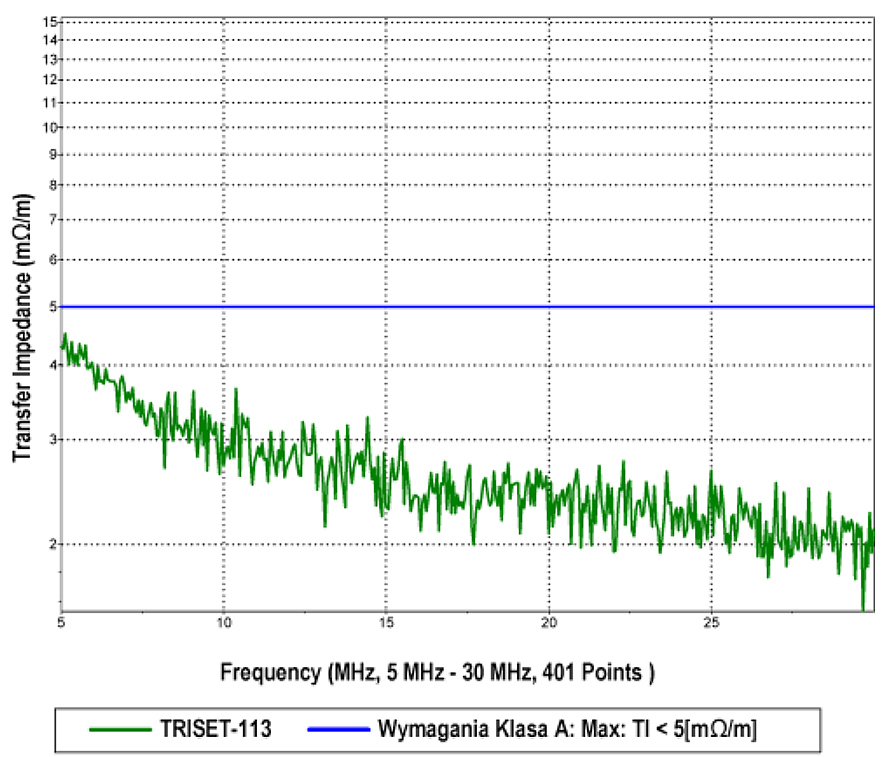

| Screening efficiency: | ≥ 90 dB @100-900 MHz |
| Shortening wave coefficient: | 84 % |
| Weight: | 45 kg/km |
| Main features: | |
| Guarantee: | 5 years |
Brand:
Triset
