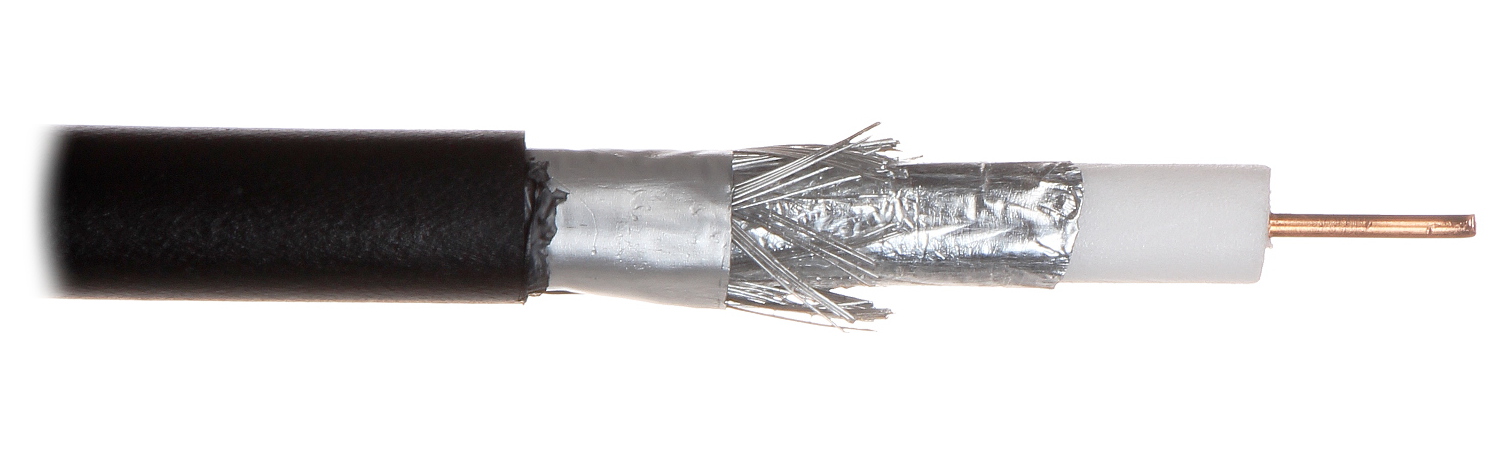

COAXIAL CABLE NS100TRI-GEL/300 CONOTECH
Войдите в учётную запись, чтобы мы могли сообщить вам об ответе

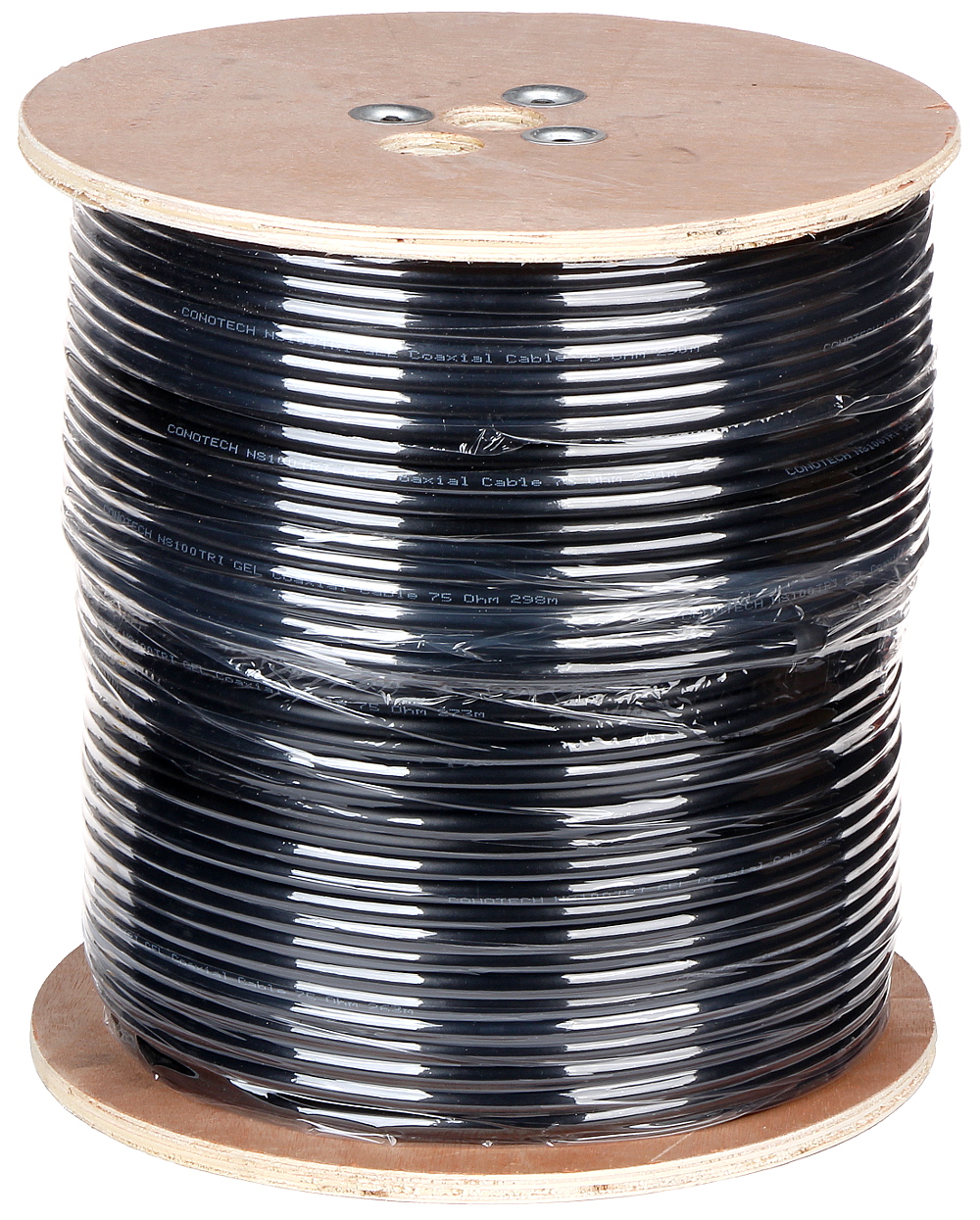

In section: 300 m . Price for 1m when buying a whole roll ; Inner conductor: Ø 1.00 mm Cu Wire ; Dielectric: Ø 4.8 mm ; Outer coating: Ø 6.8 mm PE + gel ; Cable attenuation at 100m section: 18.4 dB @ 800 MHz ;
| In section: | 300 m . Price for 1m when buying a whole roll |
| Inner conductor: | Ø 1.00 mm Cu Wire |
| Dielectric: | Ø 4.8 mm (physical foam) |
| Shield: | 2 x Al/PET |
| Braid: | 96 x 0.12 mm - Al wire |
| Outer coating: | Ø 6.8 mm PE + gel |
| Coating color: | Black |
| Impedance: | 75 Ω |
| Cable attenuation at 100m section: | 8.6 dB @ 200 MHz 18.4 dB @ 800 MHz 28.3 dB @ 1800 MHz 31.9 dB @ 2200 MHz |
| Manufacturer / Brand: | CONOTECH |
| Guarantee: | 2 years |
