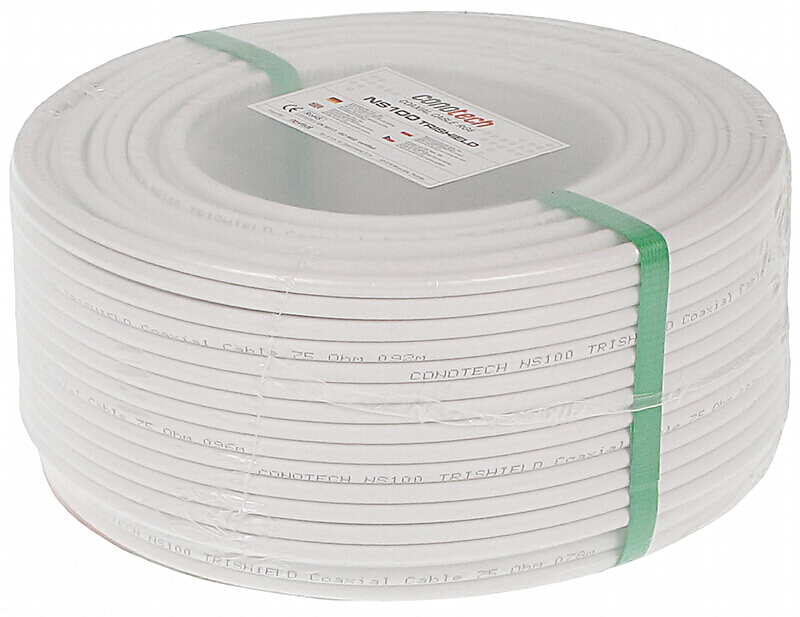

In section: 100 m . Price for 1m when buying a whole roll ; Inner conductor: Ø 1.00 mm Cu Wire ; Dielectric: Ø 4.8 mm ; Cable attenuation at 100m section: 17.5 dB @ 800 MHz ;
| In section: | 100 m . Price for 1m when buying a whole roll |

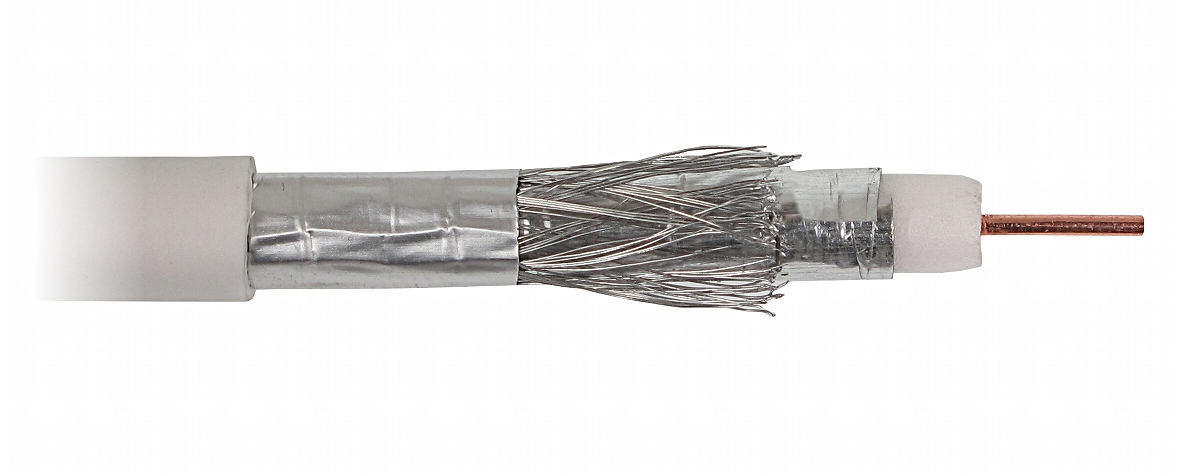

| Inner conductor: | Ø 1.00 mm Cu Wire |
| Dielectric: | Ø 4.8 mm (physical foam) |
| Shield: | Double Al/PET |
| Braid: | 96 x 0.12 mm Al wire |
| Outer coating: | Ø 6.8 mm PVC |
| Coating color: | White |
| Impedance: | 75 Ω |

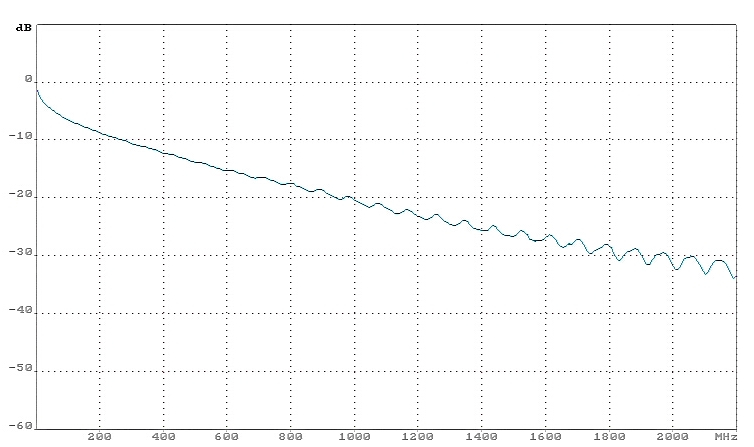

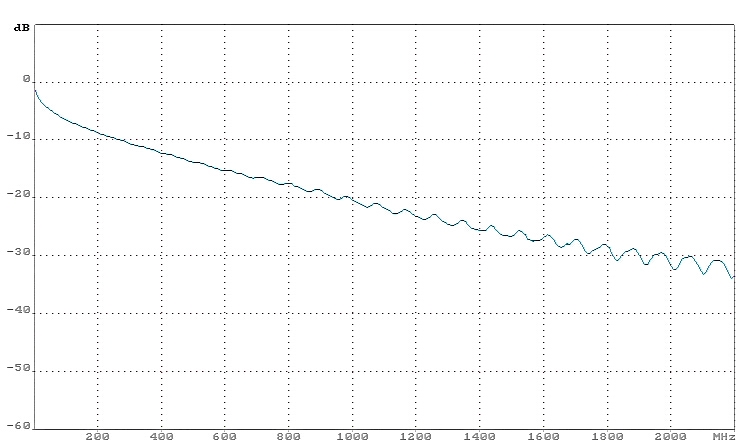

| Cable attenuation at 100m section: | 9 dB @ 200 MHz 17.5 dB @ 800 MHz 29 dB @ 1750 MHz 34.5 dB @ 2200 MHz |
| Guarantee: | 2 years |
Brand:
Conotech
