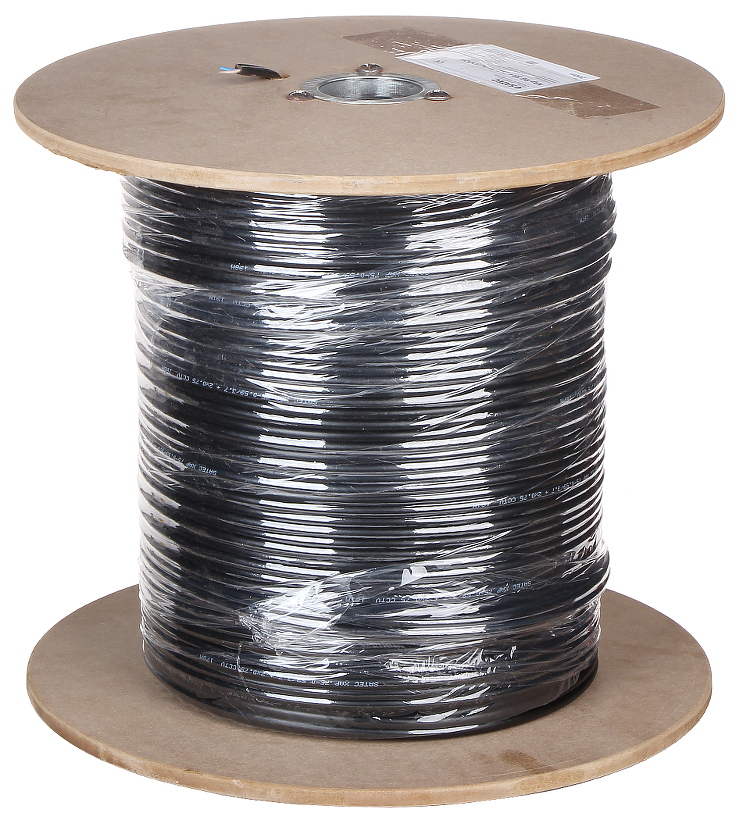

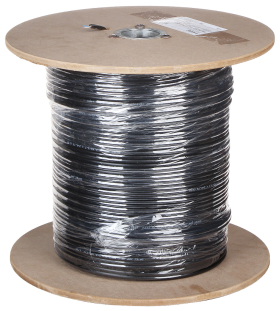

In section: 200 m . Price for 1m when buying a whole roll ; Coaxial cable: RG59 ; Inner conductor: Ø 0.59 mm - Cu wire ; Outer coating: Ø 5.9 mm : PVC + gel ; Cable attenuation at 100m section: 23.2 dB @ 450 MHz ; Electrical cable: ; Inner conductor: 2 x 0.75 mm² Stranded wire : Al + Cu ;
| In section: | 200 m . Price for 1m when buying a whole roll |

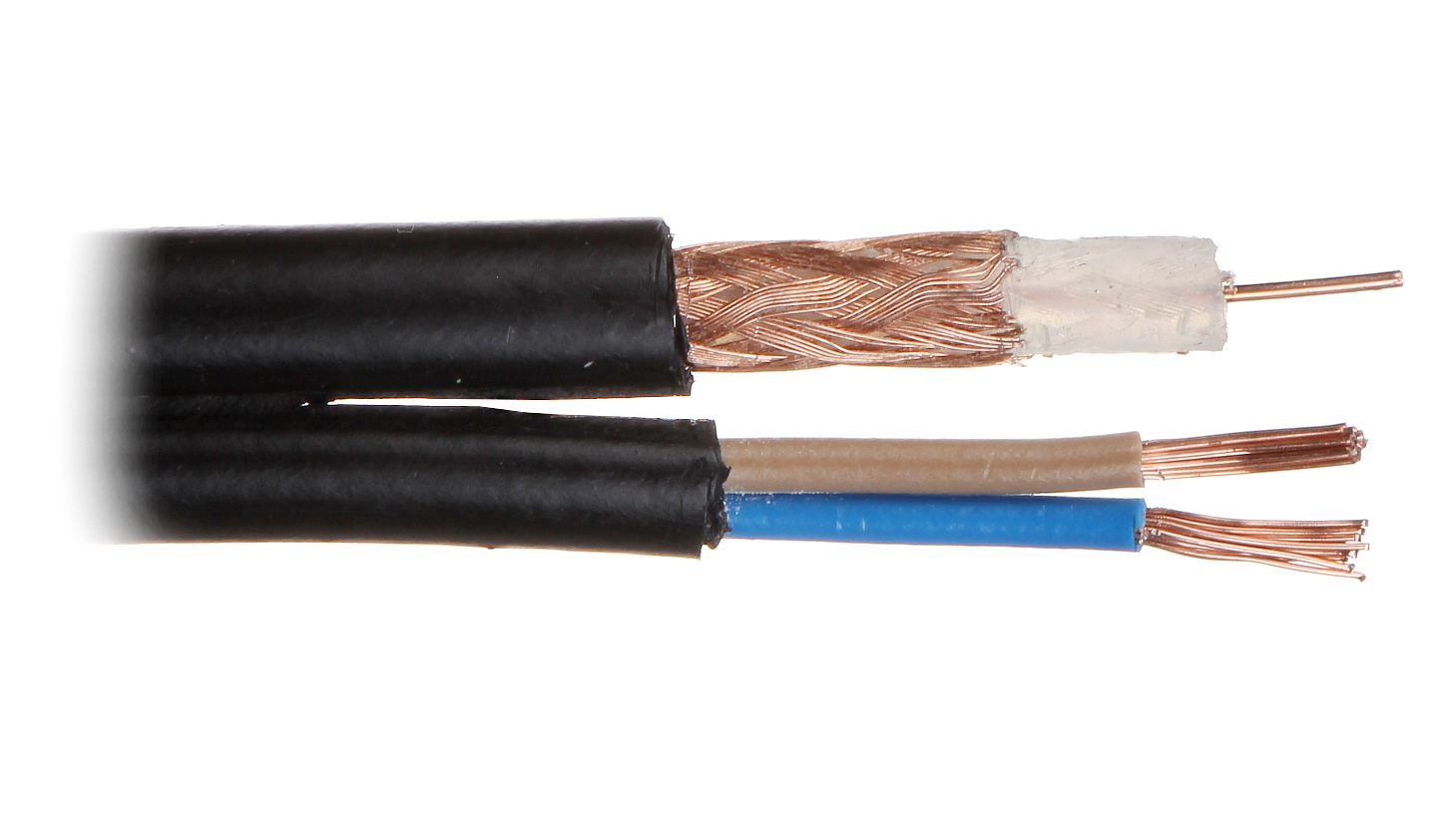

| Coaxial cable: | RG59 |

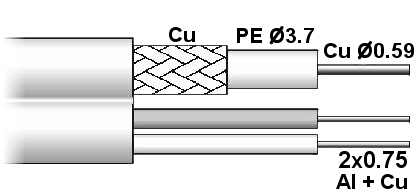

| Inner conductor: | Ø 0.59 mm - Cu wire |
| Dielectric: | Ø 3.7 mm - PE full |
| Shield: |  |
| Braid: | Stranded wire Cu, Indoor coverage area : 90 % |
| Impedance: | 75 Ω |
| Outer coating: | Ø 5.9 mm : PVC + gel |
| Cable attenuation at 100m section: | 10.9 dB @ 100 MHz 15.2 dB @ 200 MHz 23.2 dB @ 450 MHz 32.6 dB @ 800 MHz 36.6 dB @ 1000 MHz |
| Electrical cable: | |
| Inner conductor: | 2 x 0.75 mm² Stranded wire : Al + Cu |
| Power wires resistance: | 4 Ω / 100 m |
| Outer coating: | Ø 5 mm |
| Guarantee: | 2 years |
Brand:
Satec
