In section: 100 m . Price for 1m when buying a whole roll ; Coaxial cable: K-60 ; Inner conductor: Ø 0.59 mm Cu - Wire ; Outer coating: Ø 5.5 mm PVC ; Cable attenuation at 100m section: 25.4 dB @ 500 MHz ; Electrical cable: ; Inner conductor: 2 x 0.5 mm² Stranded wire ;

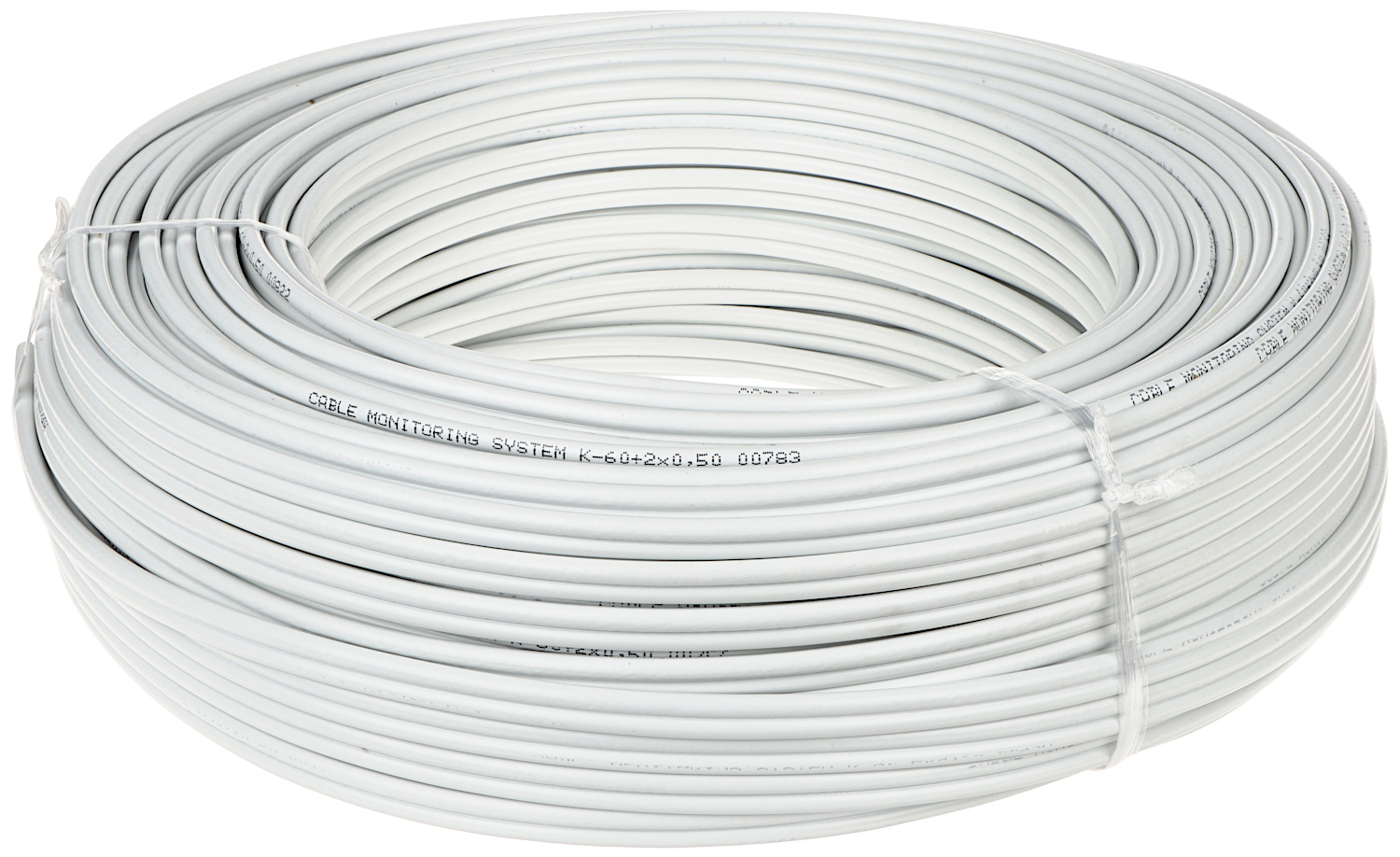

| In section: | 100 m . Price for 1m when buying a whole roll |

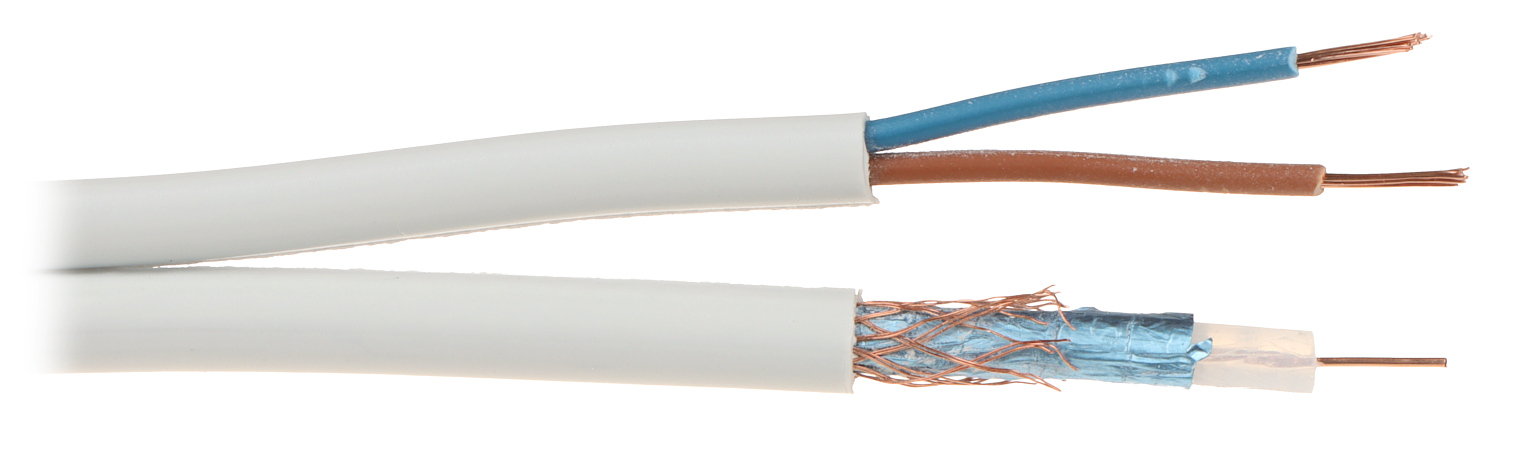

| Coaxial cable: | K-60 |
| Inner conductor: | Ø 0.59 mm Cu - Wire |
| Dielectric: | Ø 3.7 mm PE full |
| Shield: | Al foil + PET |
| Braid: | Wire Cu |
| Impedance: | 75 Ω |
| Outer coating: | Ø 5.5 mm PVC |
| Cable attenuation at 100m section: | 10.6 dB @ 100 MHz 15.2 dB @ 200 MHz 25.4 dB @ 500 MHz 38.9 dB @ 1000 MHz |
| Electrical cable: | |
| Inner conductor: | 2 x 0.5 mm² Stranded wire |
| Power wires resistance: | 4 Ω / 100 m |
| Guarantee: | 2 years |
Brand:
Mercor
