In section: 100 m . Price for 1m when buying a whole roll ; Inner conductor: Ø 1.85 mm Cu ± 0.05 mm - Cu stranded wire ; Outer coating: Ø 7.3 mm ± 0.2 mm PE ;

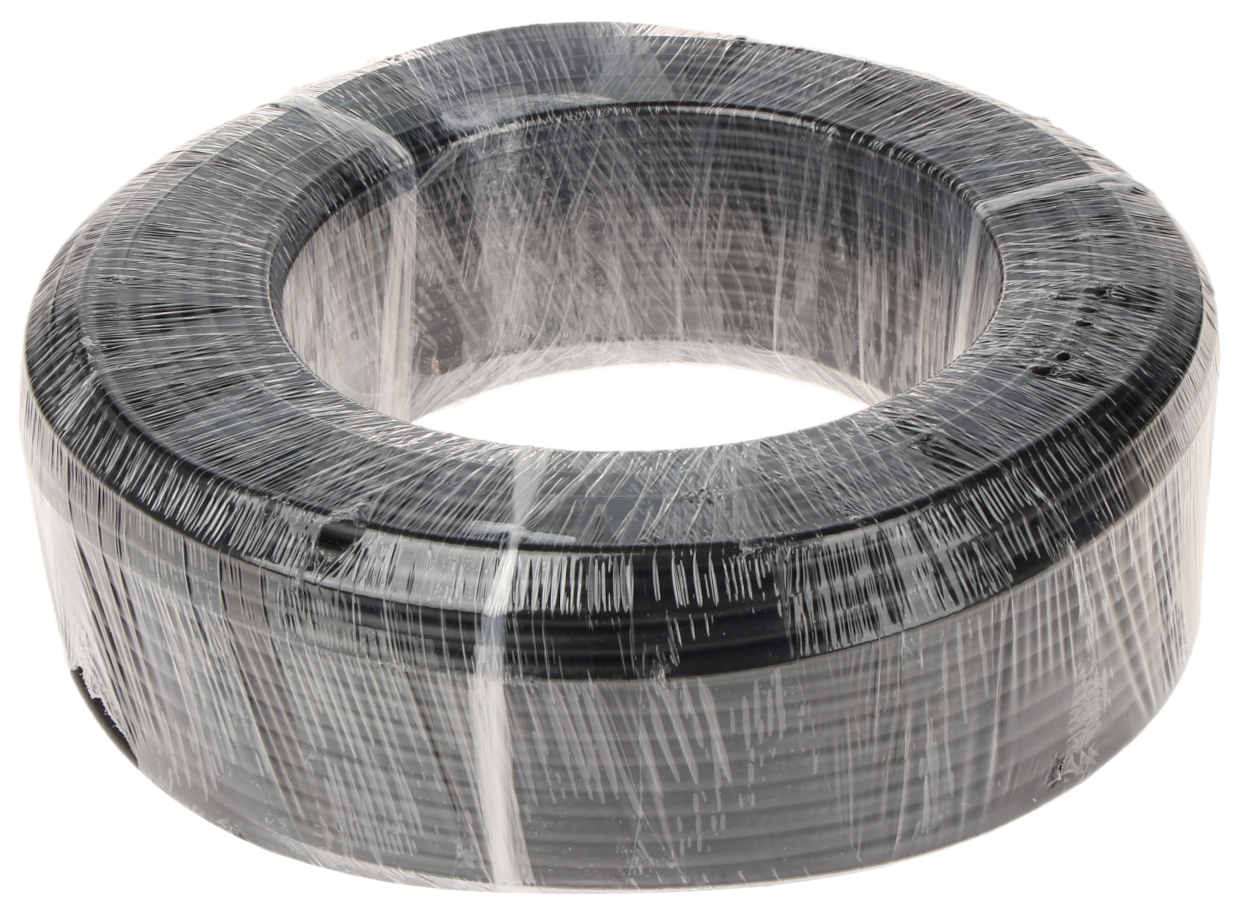

| In section: | 100 m . Price for 1m when buying a whole roll |

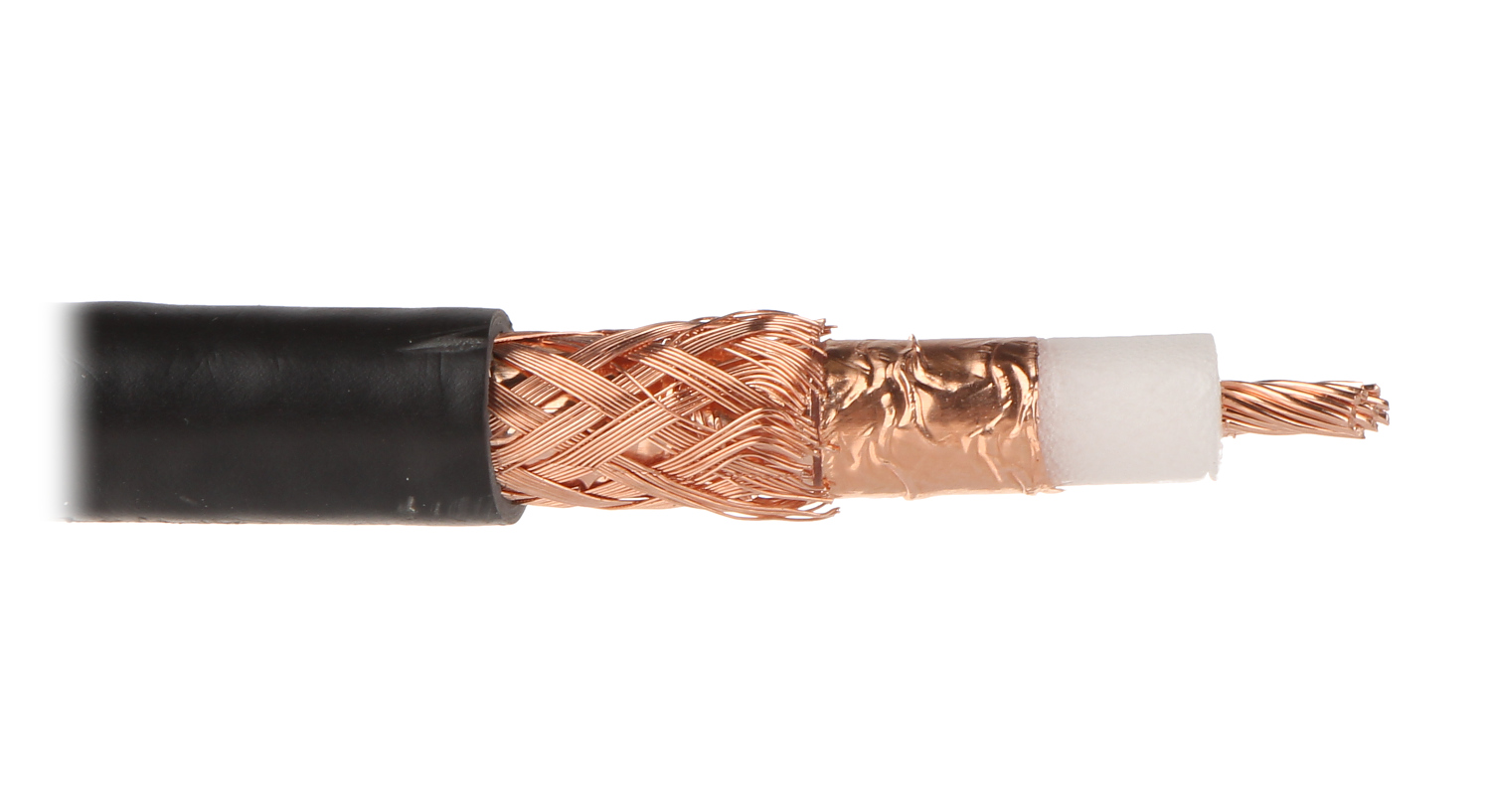

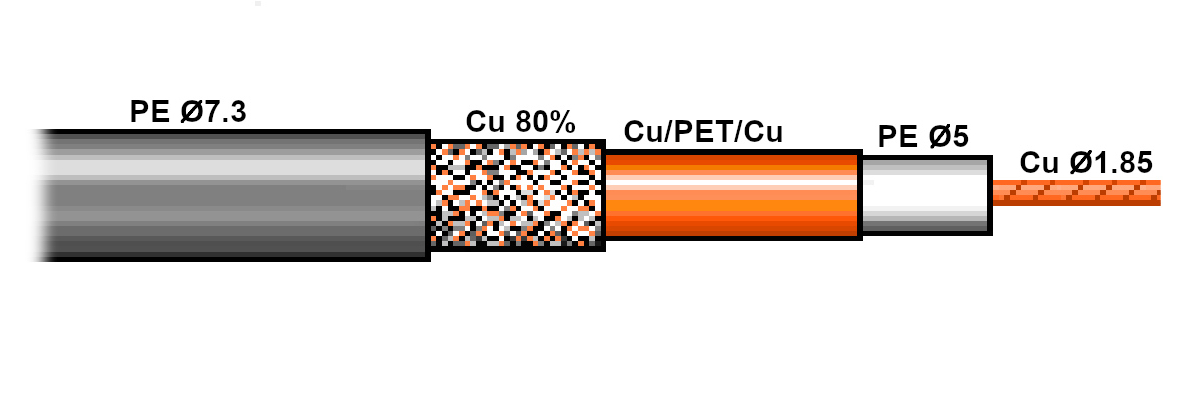

| Inner conductor: | Ø 1.85 mm Cu ± 0.05 mm - Cu stranded wire |
| Dielectric: | Ø 5 mm - Physical foam |
| Shield: | Double-sided foil - Cu/PET/Cu |
| Braid: | 80 % Cu |
| Impedance: | 50 Ω |
| Outer coating: | Ø 7.3 mm ± 0.2 mm PE - Black |
| Main features: | |
| Cable attenuation at 100m section: | 2 dB @ 10 MHz 6.4 dB @ 100 MHz 9.1 dB @ 200 MHz 14.1 dB @ 500 MHz 20.9 dB @ 800 MHz 25.9 dB @ 1 GHz 31 dB @ 1.5 GHz 35 dB @ 2 GHz 39 dB @ 2.5 GHz |
| Maximum transmitted power: | 3.27 kW @ 10 MHz 1.025 kW @ 100 MHz 0.693 kW @ 200 MHz 0.452 kW @ 500 MHz 0.310 kW @ 800 MHz 0.253 kW @ 1 GHz 0.219 kW @ 1.5 GHz 0.195 kW @ 2 GHz 0.175 kW @ 2.5 GHz |
| Guarantee: | 2 years |
Brand:
Satec
