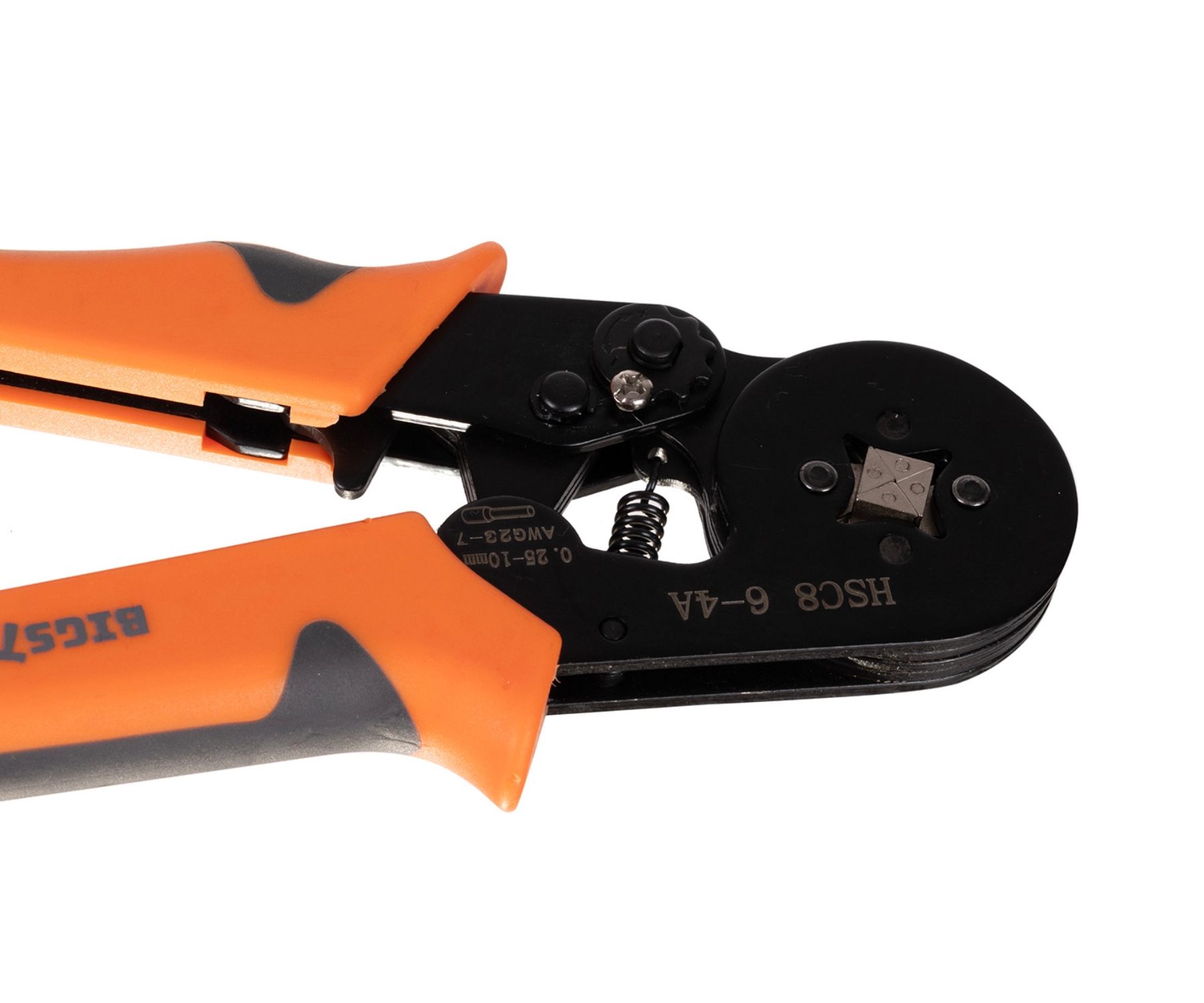

The kit includes a cable ferrule crimping tool and an organizer that holds 8 different sizes of cable ferrules; Set of cable ferrules from 0.5 mm2 to 10 mm2 with organizer; Number of pcs. in package: = 1200 pcs (total) ;
| Material: | Metal / PET |
| Application: | Crimping ferrules - 0.25 ... 10 mm² ( 23 ... 7 AWG ) |
| Main features: | |
| Weight: | 0.37 kg |

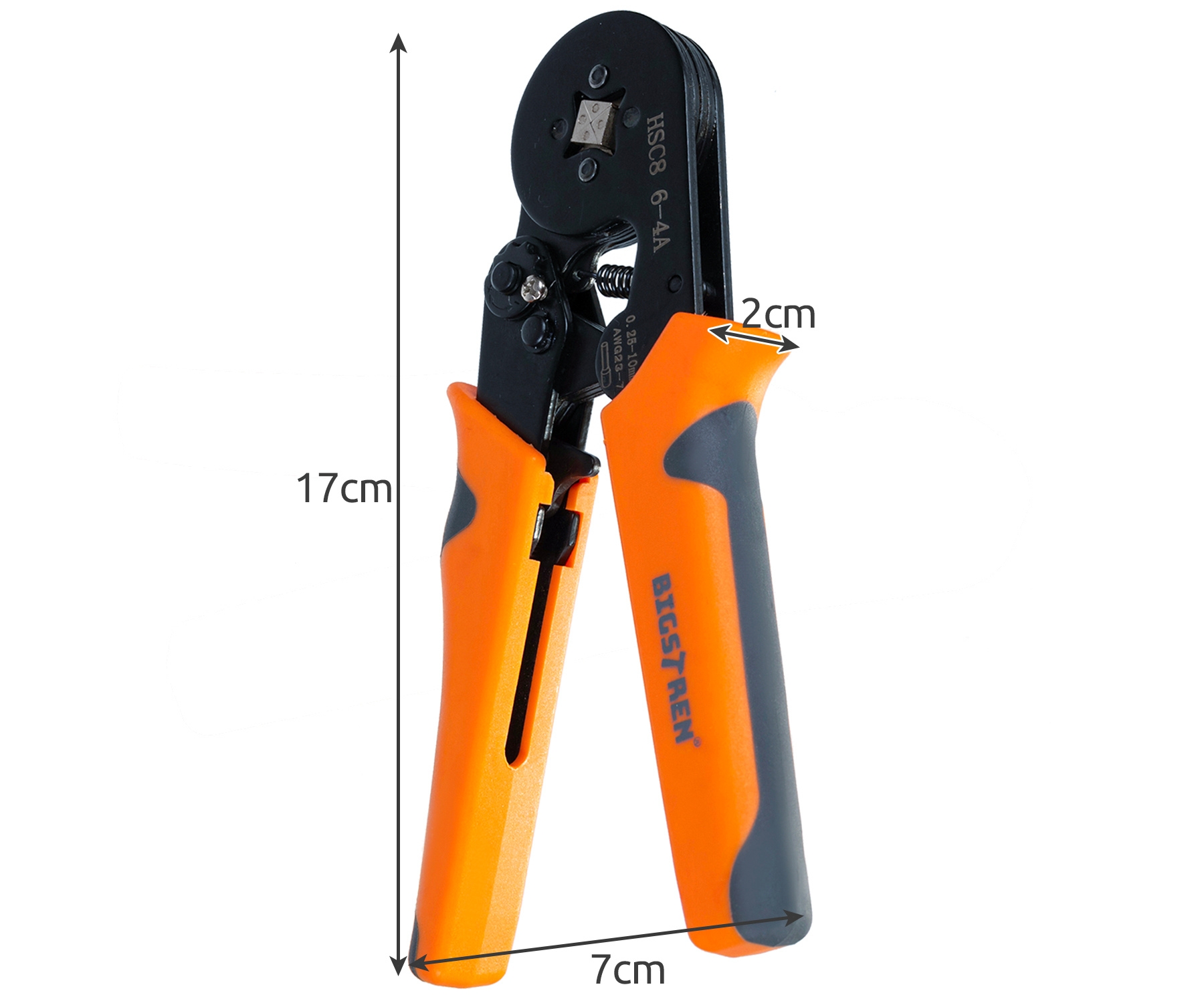

| Dimensions: | 176 x 74 x 19 mm |

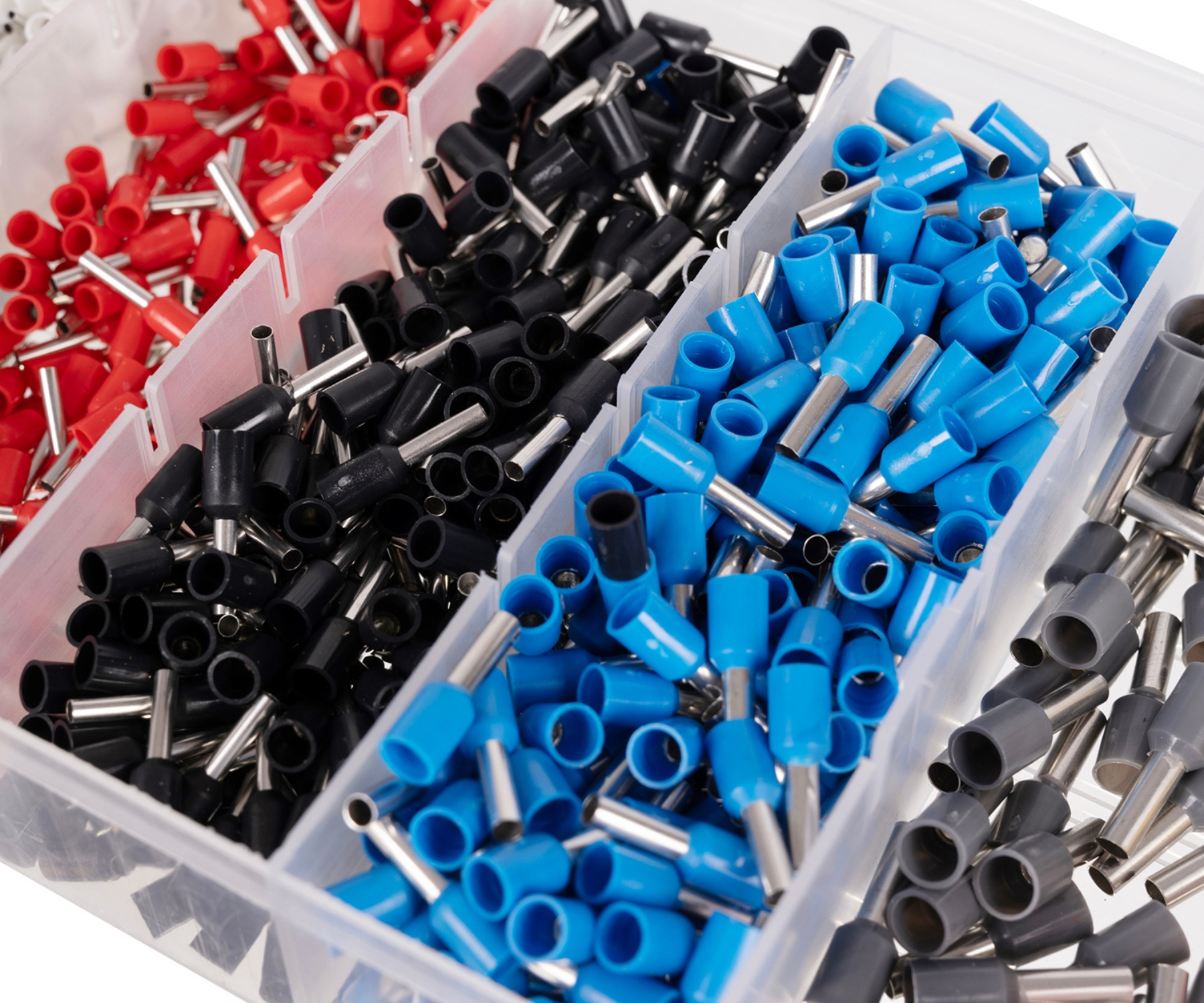

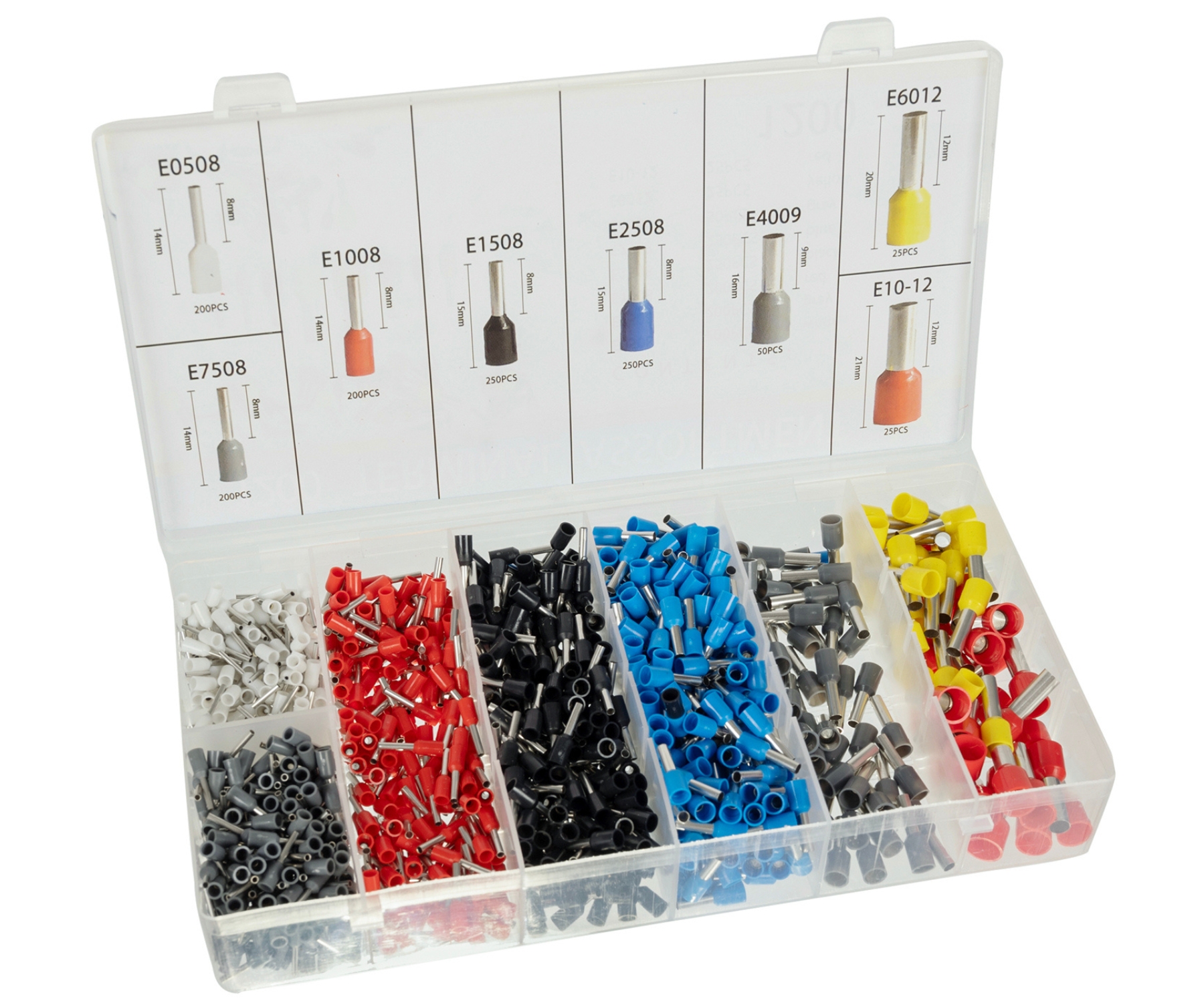

Cable ferrules organizer:
| Number of pcs. in package: | 200 pcs / 200 pcs / 200 pcs / 250 pcs / 250 pcs / 50 pcs / 25 pcs / 25 pcs = 1200 pcs (total) |
| Cross section: | 0.5 mm² / 0.75 mm² / 1 mm² / 1.5 mm² / 2.5 mm² / 4 mm² / 6 mm² / 10 mm² |
| Length of the contact surface: | 8 mm / 8 mm / 8 mm / 8 mm / 8 mm / 9 mm / 12 mm / 12 mm |
| Color: | White / Gray / Red / Black / Blue / Gray / Yellow / Red |
| Contact material: | Cu / Indoor coverage area Sn |
| Insulation: | Polypropylene |
| Application: | Stranded wires |
| Main features: | Cable ferrules organizer :
|
| Weight: | 0.174 kg (total) |
| Dimensions: | 205 x 106 x 30 mm |
General information:
| Manufacturer / Brand: | BIGSTREN |
| Guarantee: | 2 years |
Brand:
BIGSTREN
