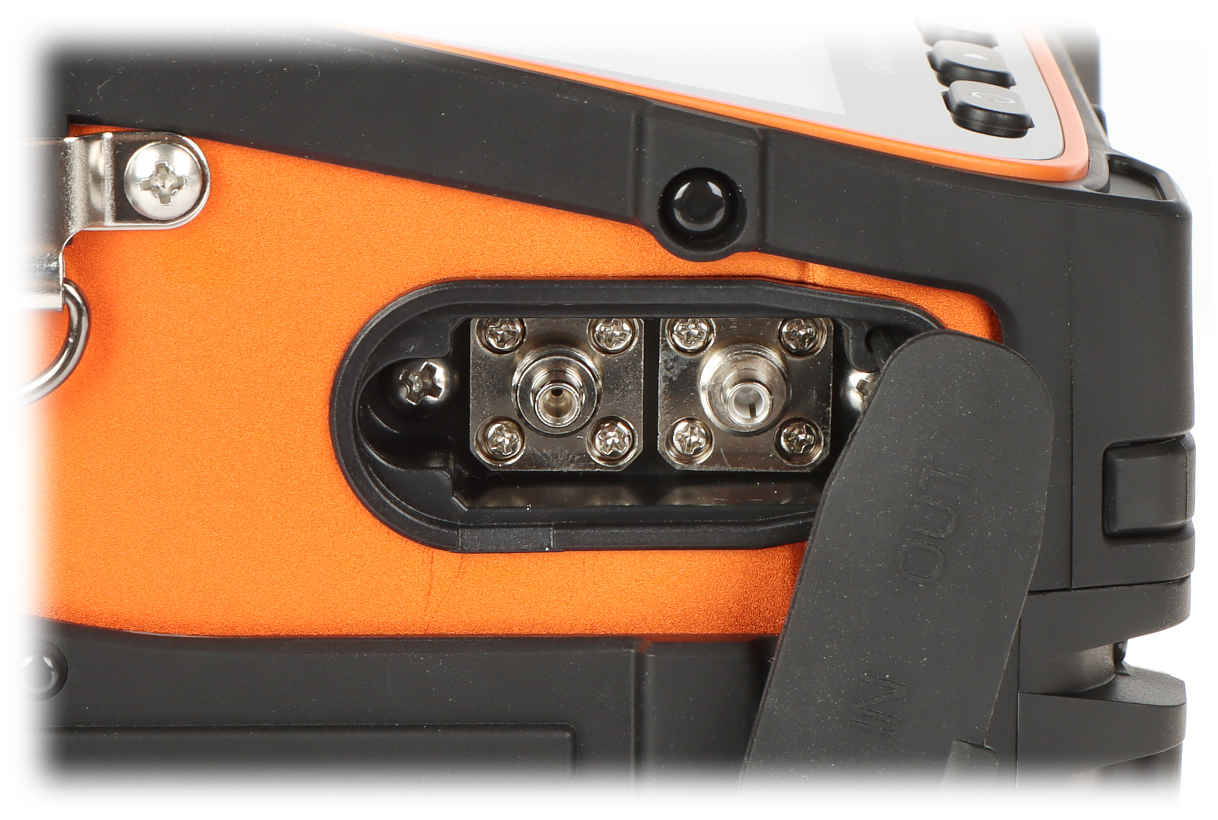

Fiber optic type: Multi-Mode (MM) - G.651, Single-Mode (SM) - G.652 & G.657, Single-Mode (DS / NZDS) Non-Zero Dispersion Shifted Fiber (G.655) ; Computer interface: USB 2.0 ; Main features: Built-in optical power meter VLS (VFL) - Visual Fault Locator of fiber cable ;
| Fiber optic type: | |
| Cladding diameter: | 80 ... 150 µm |
| Outer coating diameter: | 0.1 ... 1 mm |
| Fiber cleaved length: | 16 mm |

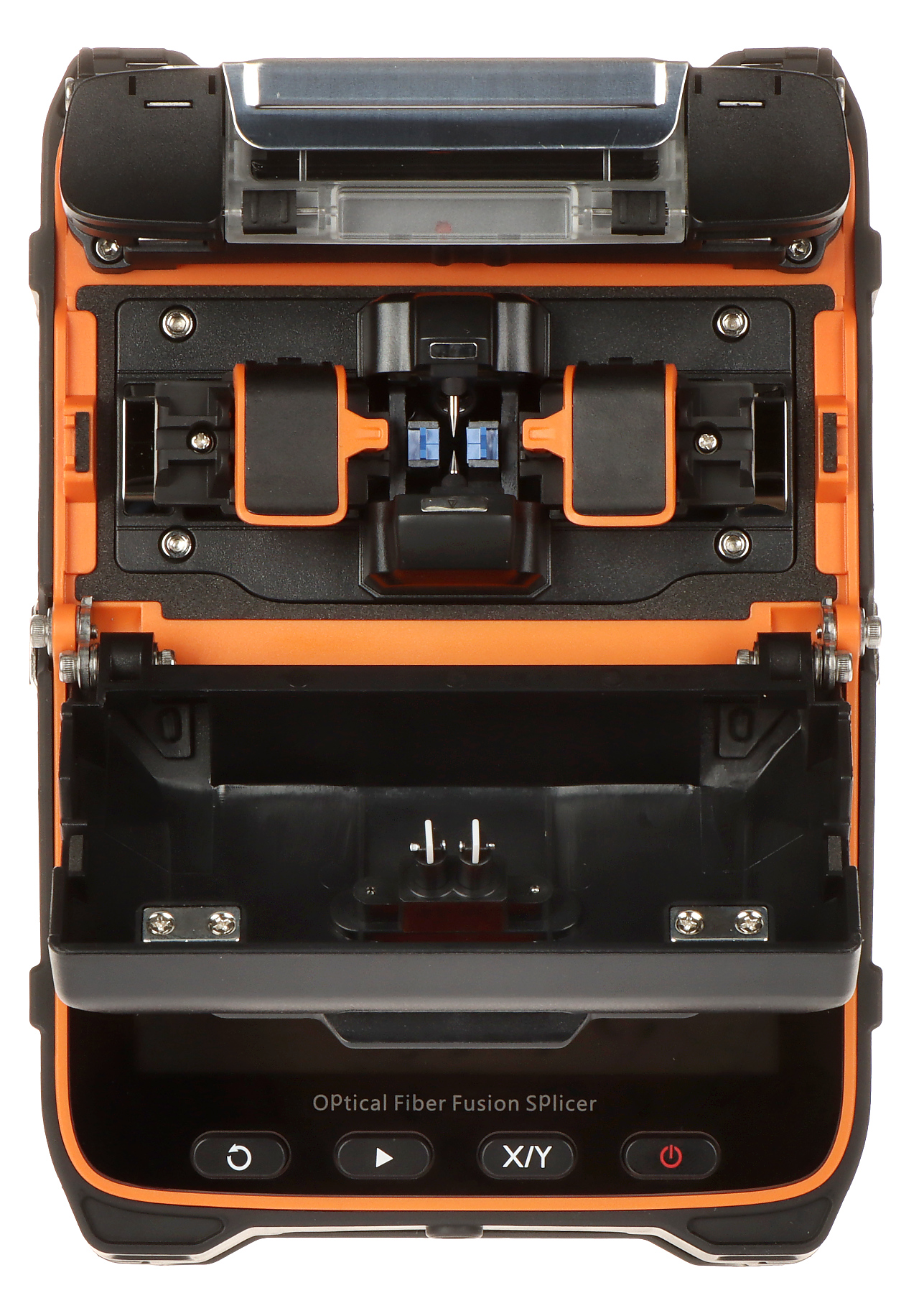

| Orientation technology: | core alignment, cladding alignment, manual |

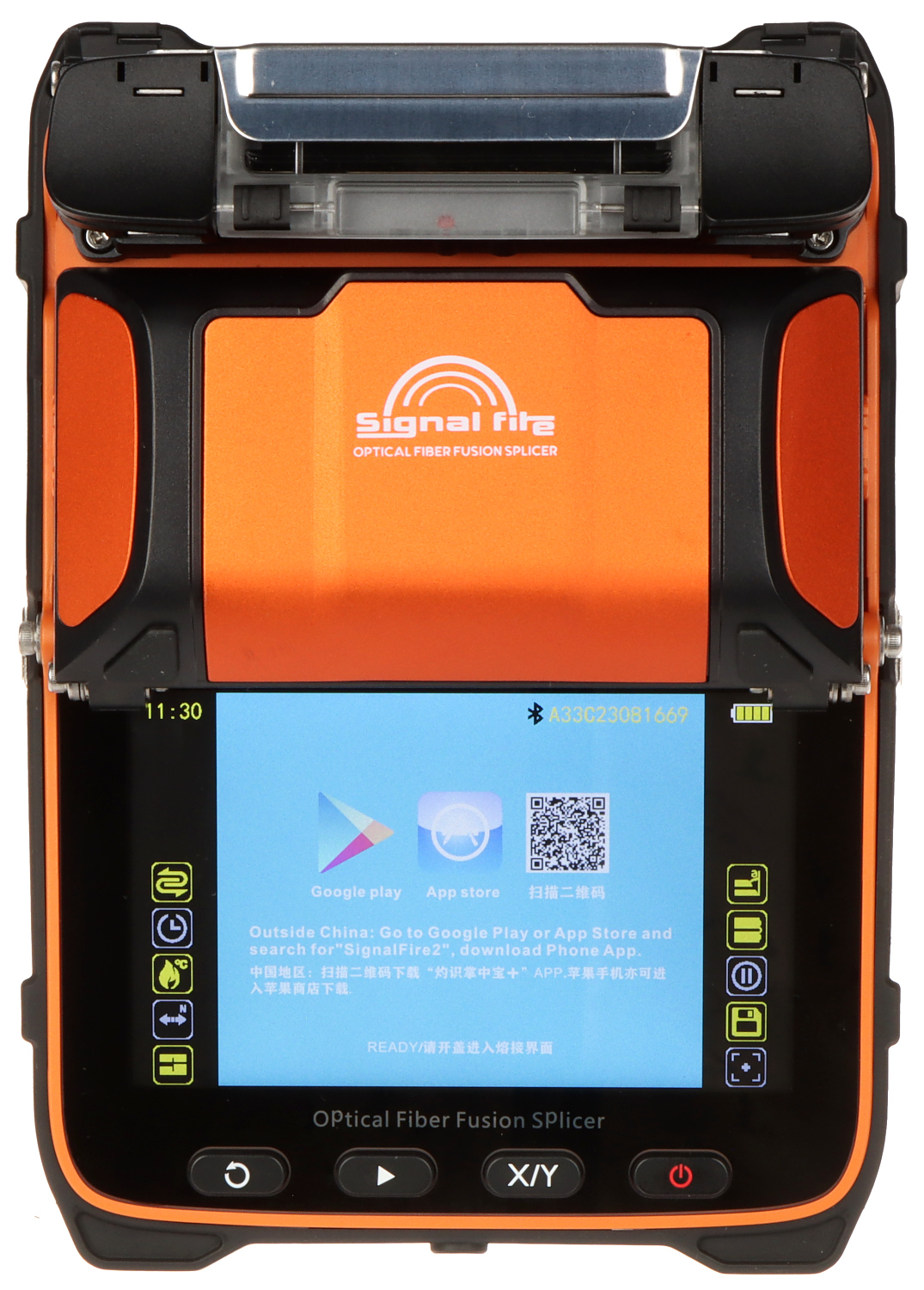

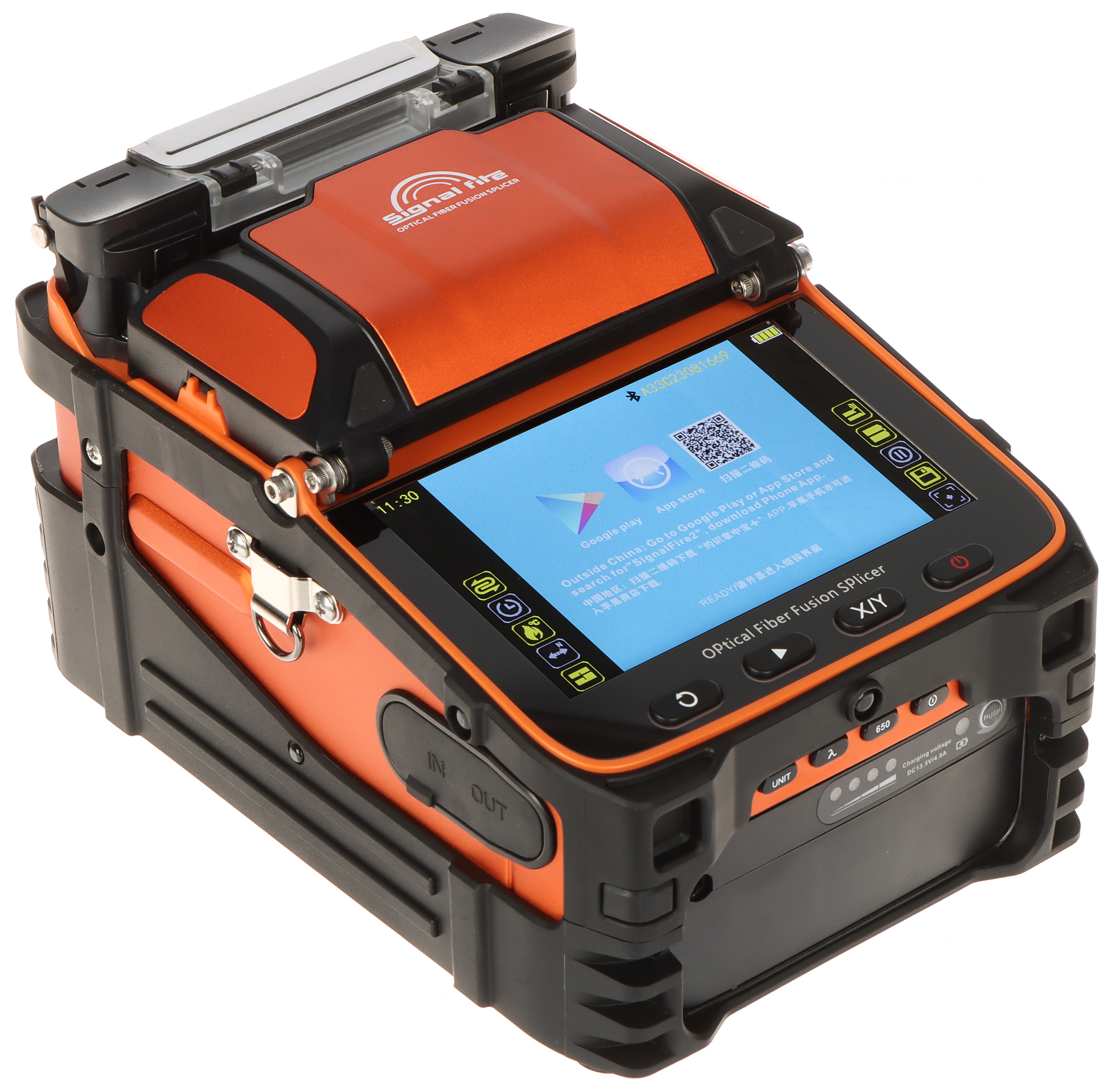

| Display: | 5.1 " LCD, 800 x 480 px Image: display X and Y axis simultaneously |
| Average fusion loss: | 0.01 dB (MM) 0.025 dB (SM) 0.04 dB DS / NZDS |
| Average fusion time: | 5 s |
| Average heat time: | 15 s |
| Fusion programs: | (factory applications) + (user applications) |
| Internal light: |  |
| Internal heater: | |
| Set fusions parameters: | |
| Fusion storage: | |
| Mechanical strength test: | 2 N |
| Computer interface: | USB 2.0 - Possibility to charge smartphones |
| Main features: |
|
| Power supply: | 13.5 V DC / 4.8 A (power adapter included) |

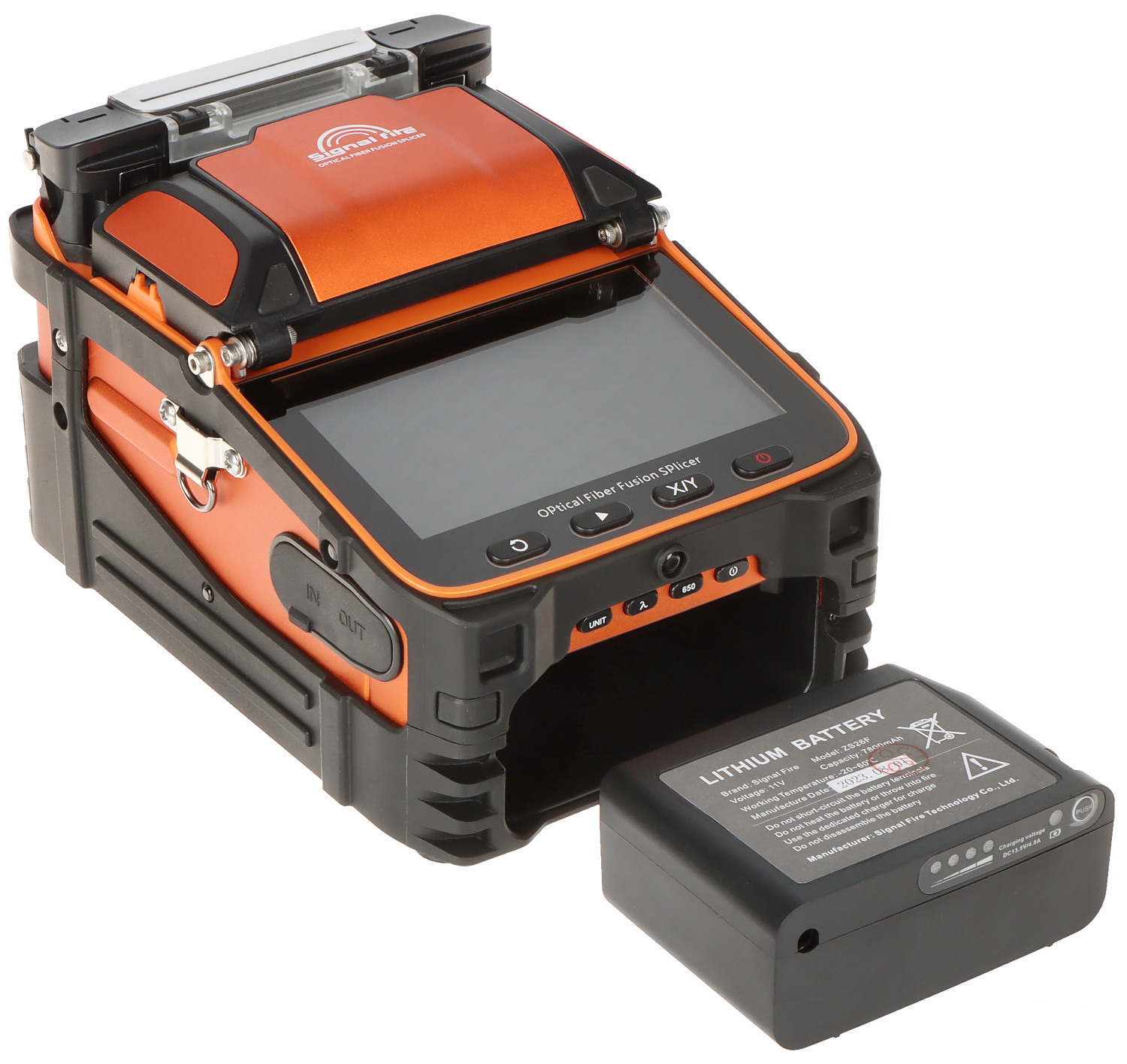

| Battery power supply: | 11 V DC Li-Ion battery, 7800 mAh |
| Electrodes lifetime: | 3000 fusions |
| Operation temp: | -15 °C ... 50 °C |
| Permissible relative humidity: | < 95 % (non-condensing) |
| Weight: | 2.16 kg |
| Dimensions: | 202 x 145 x 128 mm |
| Manufacturer / Brand: | Signal Fire |
| Guarantee: | 3 years |
Brand:
Signal Fire
