Standard: AHD / HD-CVI / HD-TVI / PAL ; Optical connector type: SC ; Recommended fiber: Single-mode fiber ; Transmission range: 20 km - Single-mode fiber ; Number of video channels: 2 pcs ; Supported resolutions: AHD : 8 Mpx 4K UHD, 5 Mpx, 4 Mpx, 3 Mpx, 1080p, 720p, HD-CVI : 1080p, 720p, HD-TVI : 5 Mpx, CVBS : 1080p ;
| Standard: | AHD / HD-CVI / HD-TVI / PAL |
| Optical connector type: | SC |
| Number of fibers: | 1 pcs |
| Recommended fiber: | Single-mode fiber |
| Transmission range: | 20 km - Single-mode fiber |
| Number of video channels: | 2 pcs - AHD / HD-CVI / HD-TVI / PAL |
| Supported resolutions: | |
| Video connectors type: | BNC |
| Video resolution: | 8 bit |
| Video bandwidth: | 0 MHz ... 50 MHz |
| Video input voltage / impedance: | 1 Vpp / 75 Ω |
| Audio input: |  |
| RS-485 signal: | one-direction RS-485 Connectors 1 (+), 2 (-) - terminals |
| Optical wavelength: | 1310 / 1550 nm |
| LED diodes: | LEDs indicating device operation state |

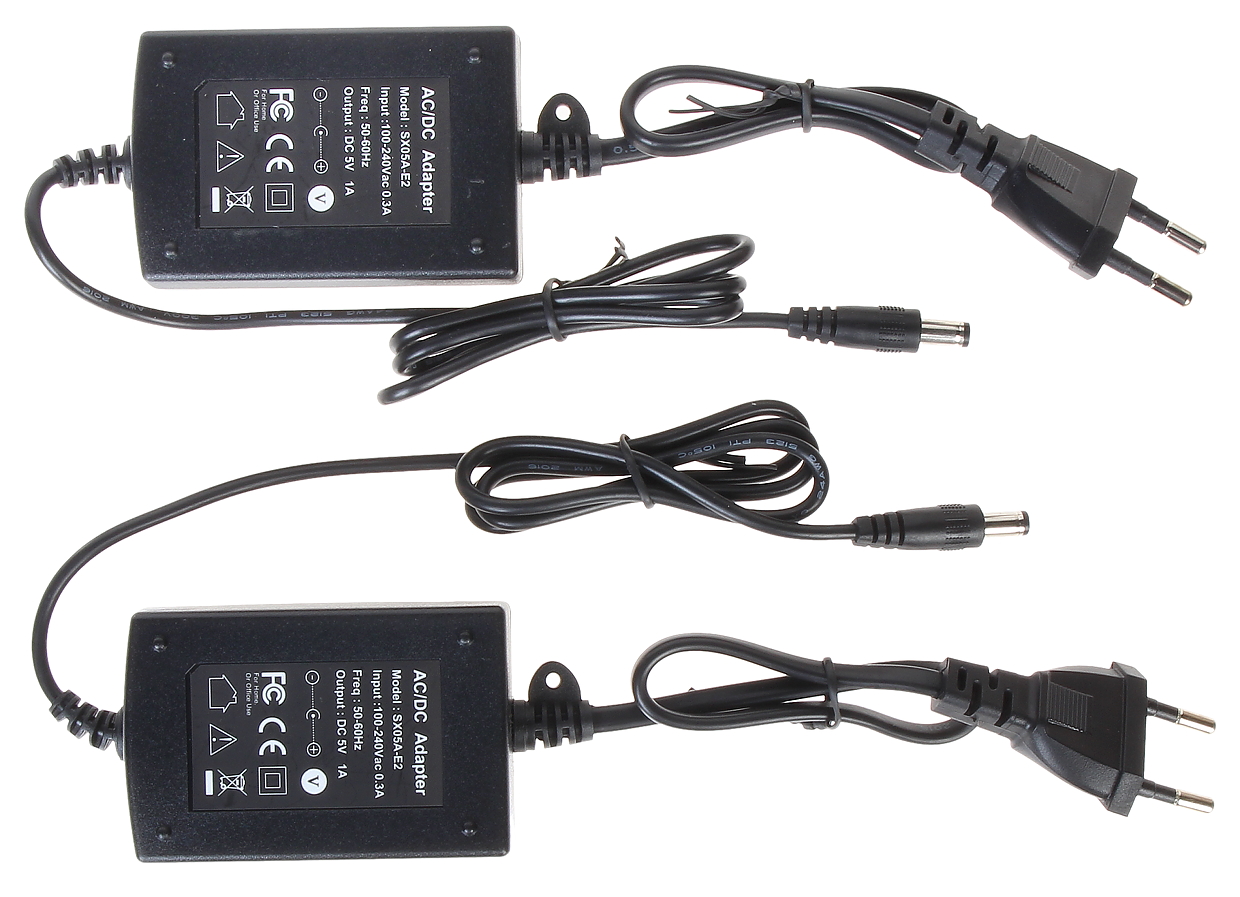

| Power supply: | 5 V DC / 1.0 A (power adapter included) |
| Operation temp: | -40 °C ... 75 °C |
| Permissible relative humidity: | 0 % ... 95 % (non-condensing) |
| Weight: | 0.664 kg |
| Dimensions: | 183 x 109 x 26 mm |
| Guarantee: | 2 years |
