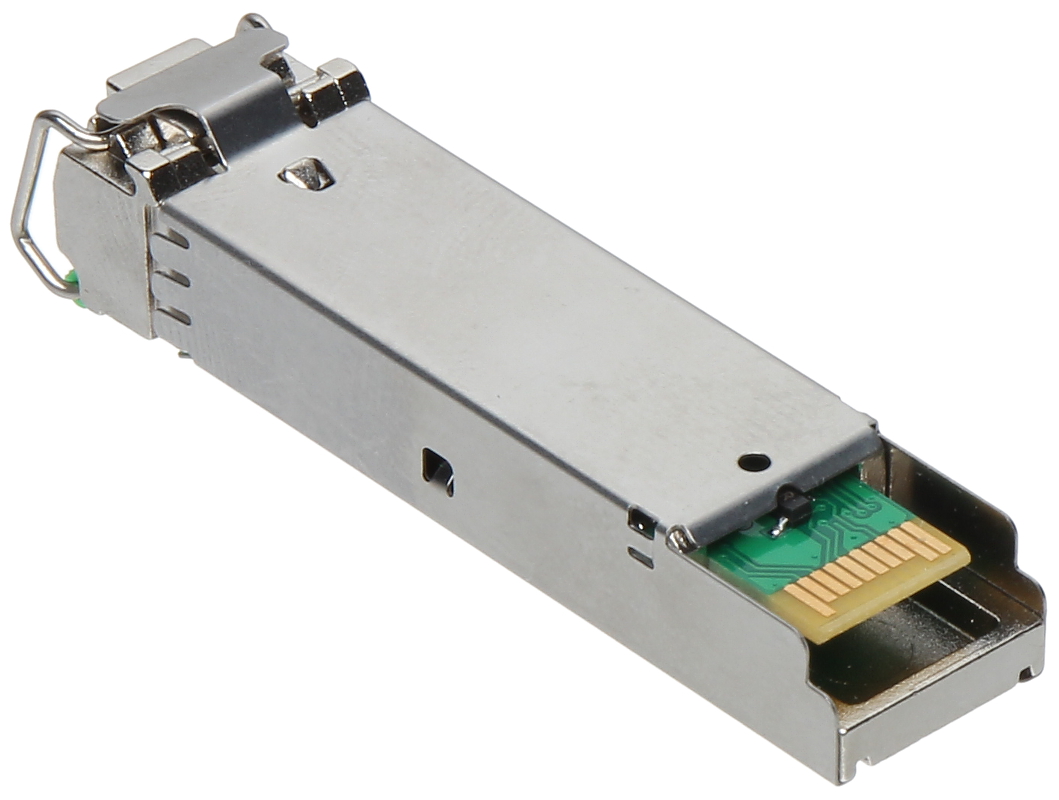

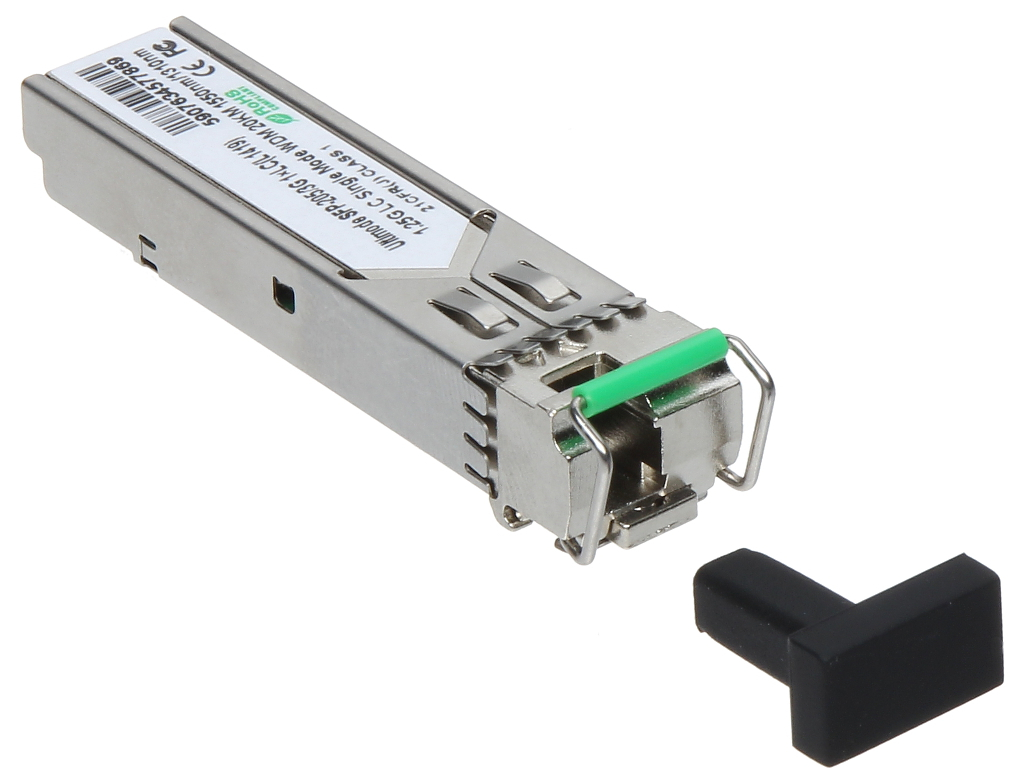

SINGLE-MODE MODULE SFP-205/3G
Войдите в учётную запись, чтобы мы могли сообщить вам об ответе
Fiber type: 8.3/125 µm, 8.7/125 µm, 9/125 µm, 10/125 µm - Single-mode fiber ; Maximal transmission range: 20 km ; Transfer rate: max. 1.25 Gb/s ; Optical connectors: LC / PC ; Main features: Wavelength-Division Multiplexing technology WDM (Tx 1550nm / Rx 1310nm) ;
| Transmission protocols: | IEEE 802.3z 1000Base-FX |
| Fiber type: | 8.3/125 µm, 8.7/125 µm, 9/125 µm, 10/125 µm - Single-mode fiber |
| Maximal transmission range: | 20 km |
| Transfer rate: | max. 1.25 Gb/s |
| Number of used fibers: | 1 |
| Optical connectors: | LC / PC |
| Light source / optical wavelength: | Laser FP - 1550 / 1310 nm (Tx / Rx) |
| Main features: | Wavelength-Division Multiplexing technology WDM (Tx 1550nm / Rx 1310nm) |
| Transmitter power: | -8 ... -3 dB |
| Receiver sensitivity: | ≥ -22 dB |
| Power supply: | 3.3 V DC |
| Operation temp: | 0 °C ... 70 °C |
| Weight: | 0.02 kg |
| Guarantee: | 2 years |
Brand:
Ultimode
