FIBER OPTIC CABLE GJXH-2/500M

60.88
(Включая налог 21%)
GJXH-2/500M
1 шт.
+
Fiber type: Single-mode, ITU-T G.657A1, SUMITOMO ; Number of fibers: 2 pcs ; Length: It is sold in 2000 m spools ; Minimal bend radius: 30 mm ;
Fiber type: Single-mode, ITU-T G.657A1, SUMITOMO
Number of fibers: 2 pcs
Cable dimensions: 3  x 2 mm
Cable weight: 9 kg / 1000 m

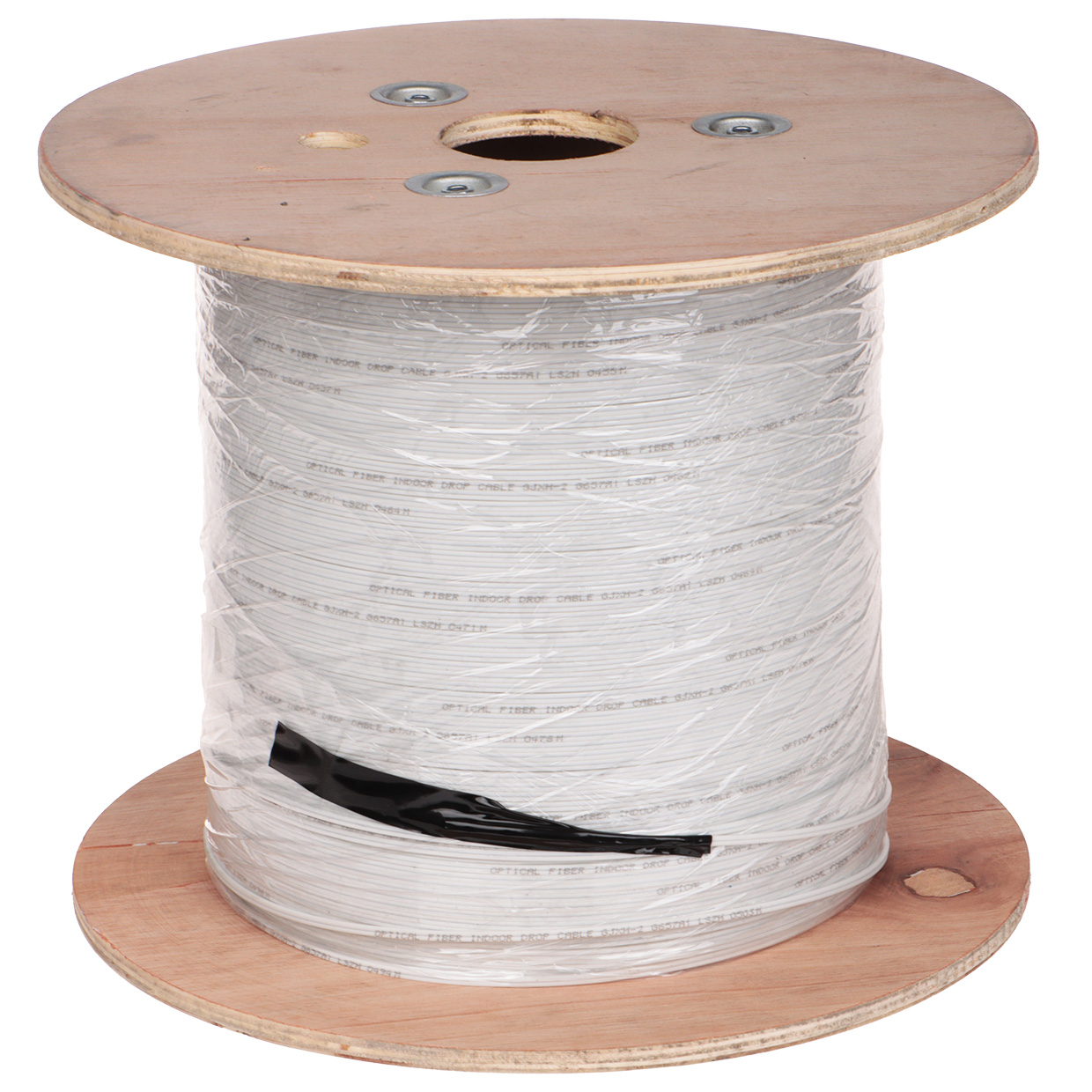

Length: It is sold in 2000 m spools
Fiber insertion loss: < 0.35 dB/km for 1310 nm
< 0.2 dB/km for 1550 nm
Buffer diameter: 250 µm
Minimal bend radius: 30 mm
Main features:

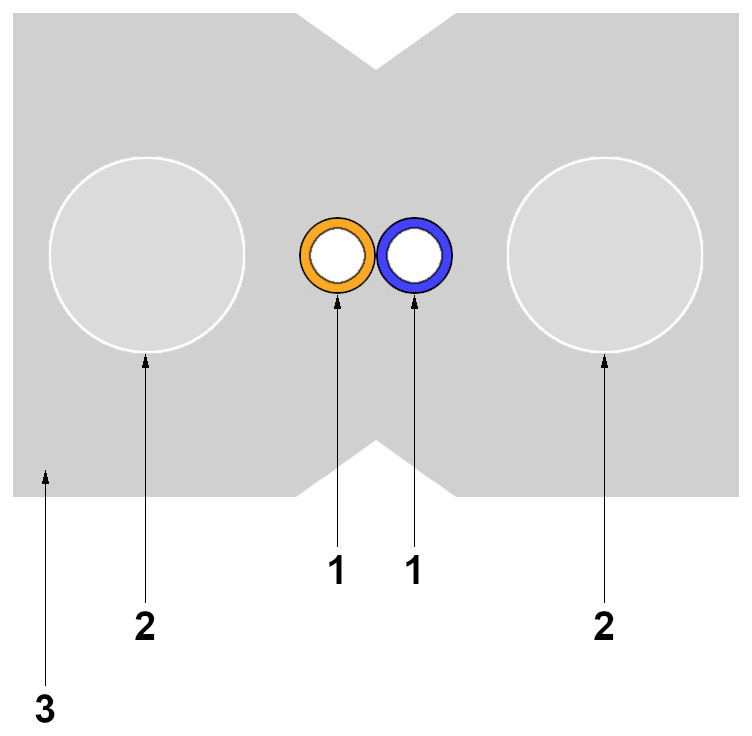

  • FRP rods embedded in the coating increasing the mechanical strength of the cable
  • The rectangular cross-section of the coating allows the cable to be bent only in one plane
  • Pulling force ≤ 80 N
  • Application:
  • The main purpose of the GJXH-2/500M cable are indoor installations
  • Due to its construction and the fiber used, the cable is ideal for FTTH, FTTB networks, server rooms, office and home networks
  • Low weight, small dimensions and very small minimum bending radius allow to successfully use the cable in cable trays
  • Supported norms:
  • EN 50267-2-2
  • EN 50268-2
  • ISO 4892/2
  • Operation temp: -30 °C ... 70 °C
    Installation temperature: -20 °C ... 60 °C
    Guarantee: 2 years
    Brand:
    Delta Fiber
