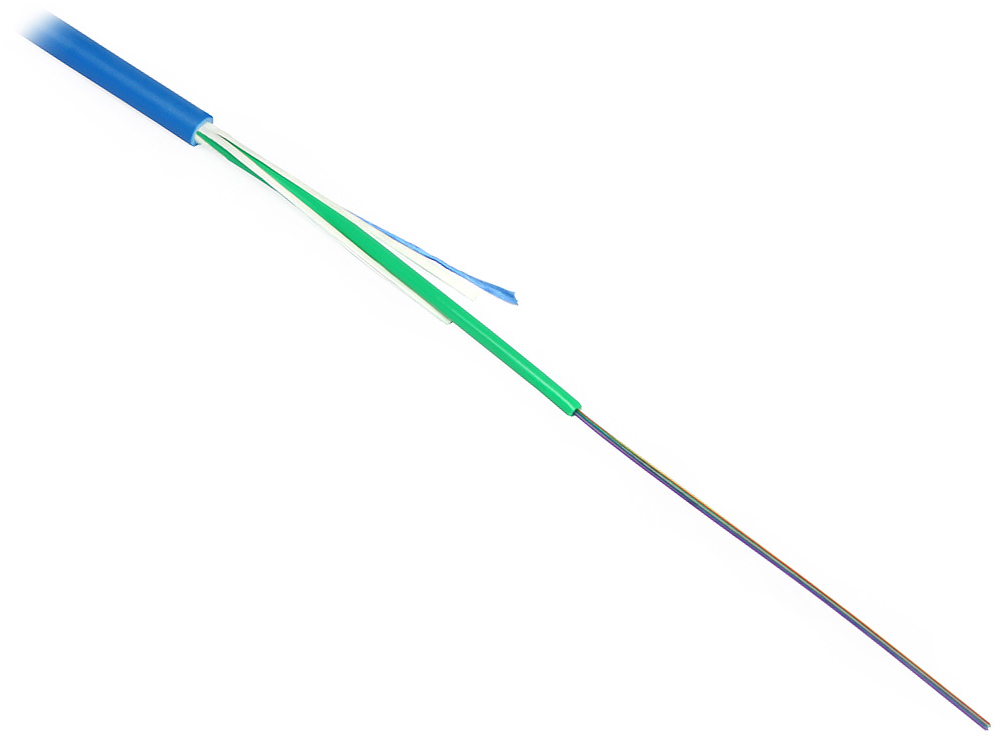

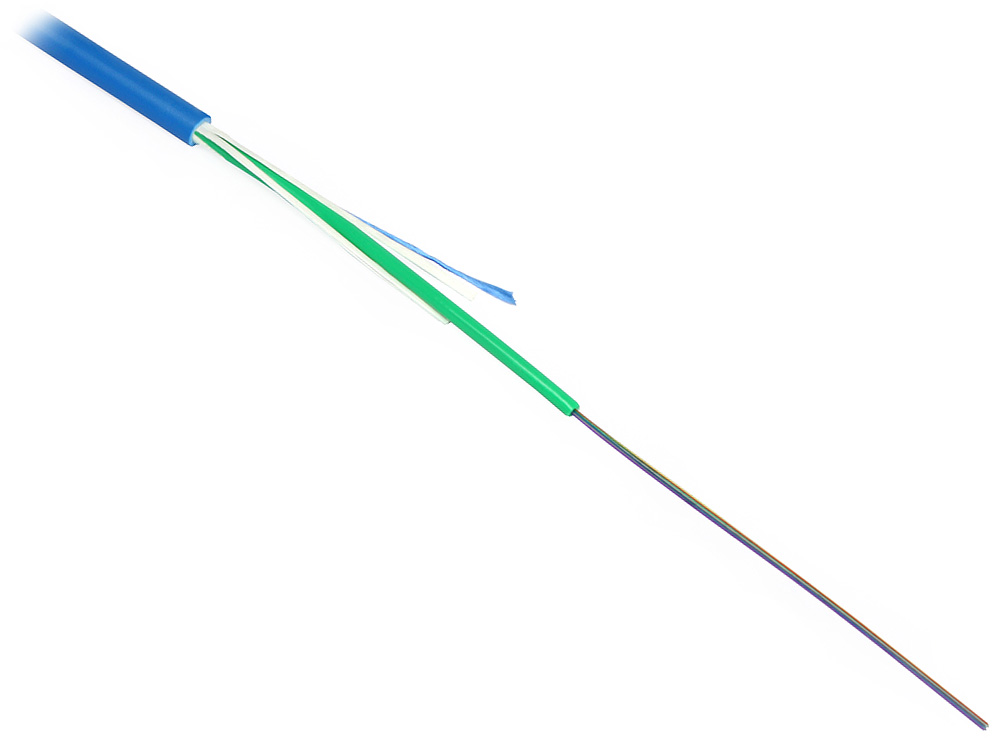

The DRAKA-U-DQ(ZN)BH/8E is an universal fiber optic cable for indoor and outdoor applications; Fiber type: Single-mode ; Number of fibers: 8 pcs ;
| Fiber type: | Single-mode, ITU-T G.657A1, U-DQ(ZN)BH |
| Number of fibers: | 8 pcs |
| Cable diameter: | 5.8 mm |
| Cable weight: | 40 kg / 1000 m |
| Buffer diameter: | 250 µm |
| Maximum pulling force: | 2000 N (dynamic) |
| Minimal bend radius: | 116 mm (during installation) |
| Class CPR: | Eca |
| Main features: | |
| Application: | |
| Supported norms: | |
| Meeting the non-flammability standard: | |
| Operation temp: | -30 °C ... 60 °C |
| Installation temperature: | -30 °C ... 40 °C |
| Guarantee: | 2 years |
Brand:
DRAKA
