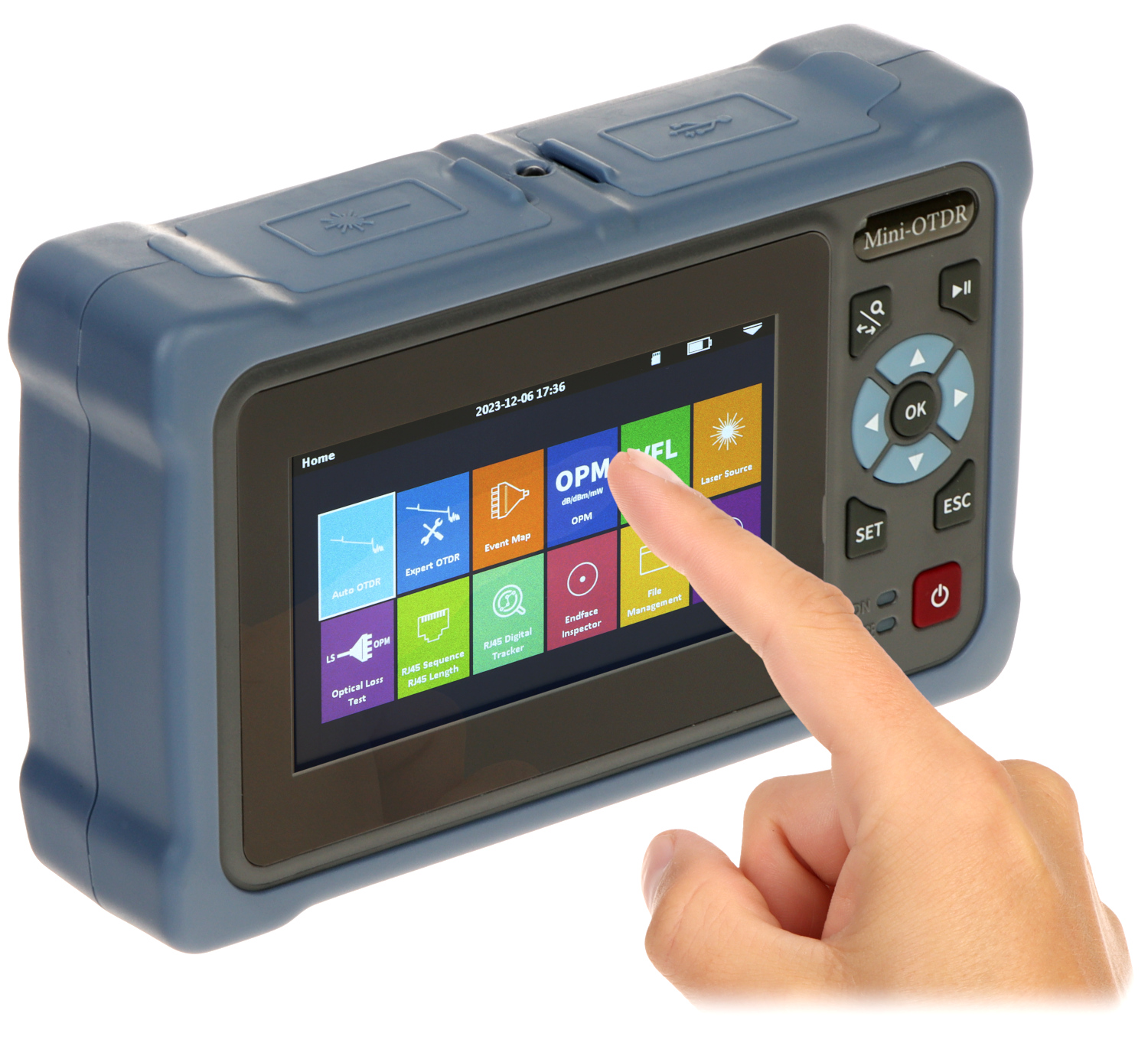

OPTICAL TIME-DOMAIN REFLECTOMETER (OTDR) OTDR-XK40D

504.03
(Включая налог 21%)
OTDR-XK40D
10 шт.
+
Optical wavelength: OTDR @ 1310 nm, 1550 nm OPM @ 850 nm / 980 nm / 1300 nm / 1310 nm / 1490 nm / 1550 nm / 1625 nm / 1650 nm ; Connector type: SC @ OTDR, 2.5mm universal connector @ OPM / VFL ; Optical power meter; VFL; OLS; Power supply: Li-Poly battery 3.7 V / 4000 mAh ;
Display: 4.3 " - touch screen
Optical wavelength:
  • OTDR @ 1310 nm, 1550 nm
  • OPM @ 850 nm / 980 nm / 1300 nm / 1310 nm / 1490 nm / 1550 nm / 1625 nm / 1650 nm
  • OLS :
    - continuous
    - 270 Hz
    - 330 Hz
    - 1 kHz
    - 2 kHz
  • Connector type:
  • SC, ST @ OTDR,
  • 2.5mm universal connector @ OPM / VFL
  • Optical power meter:
    VFL:
    OLS:
    Main features:
  • Measurement range for OTDR meter : 500 m ... 100 km
  • Dynamic range : 26  / 24 dB
  • Built-in VFL laser fiber tester
  • High measurement accuracy
  • OPM function - optical power meter
  • OLS function - light source 1310 / 1550 nm
  • Generating reports in *.sor files
  • LAN (twisted-pair) cables testing
  • Identification the wire in the group of wires
  • Built-in LED flashlight
  • The 8 GB memory card included in the kit
  • The set includes a practical case
  • Power supply:
  • Li-Poly battery 3.7 V / 4000 mAh
  • USB DC 5V/2A power adapter (included)
  • USB-C connector
  • Weight: 0.481 kg
    Dimensions: 170  x 106  x 45 mm
    Guarantee: 2 years
    Brand:
    Delta Fiber
