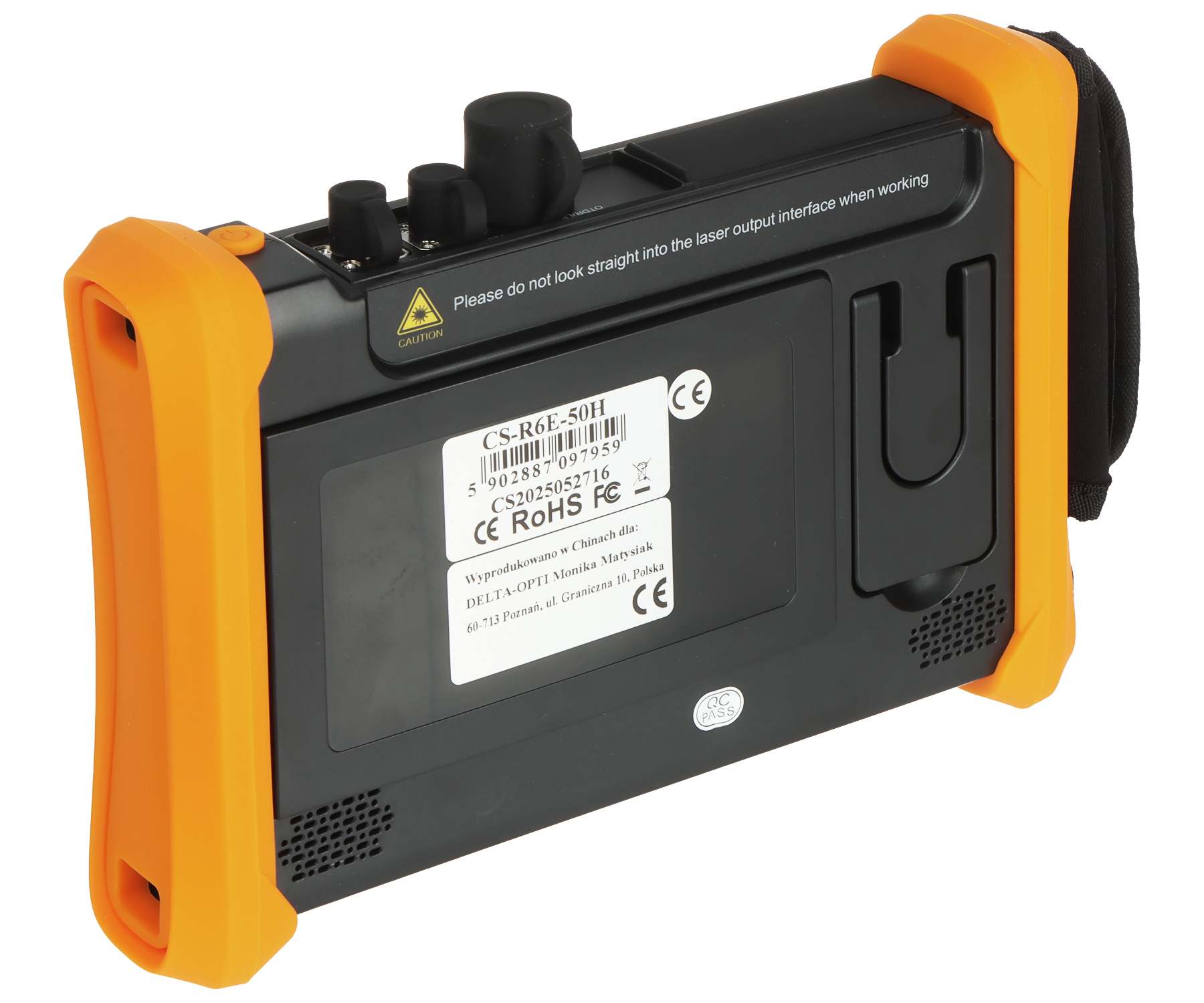

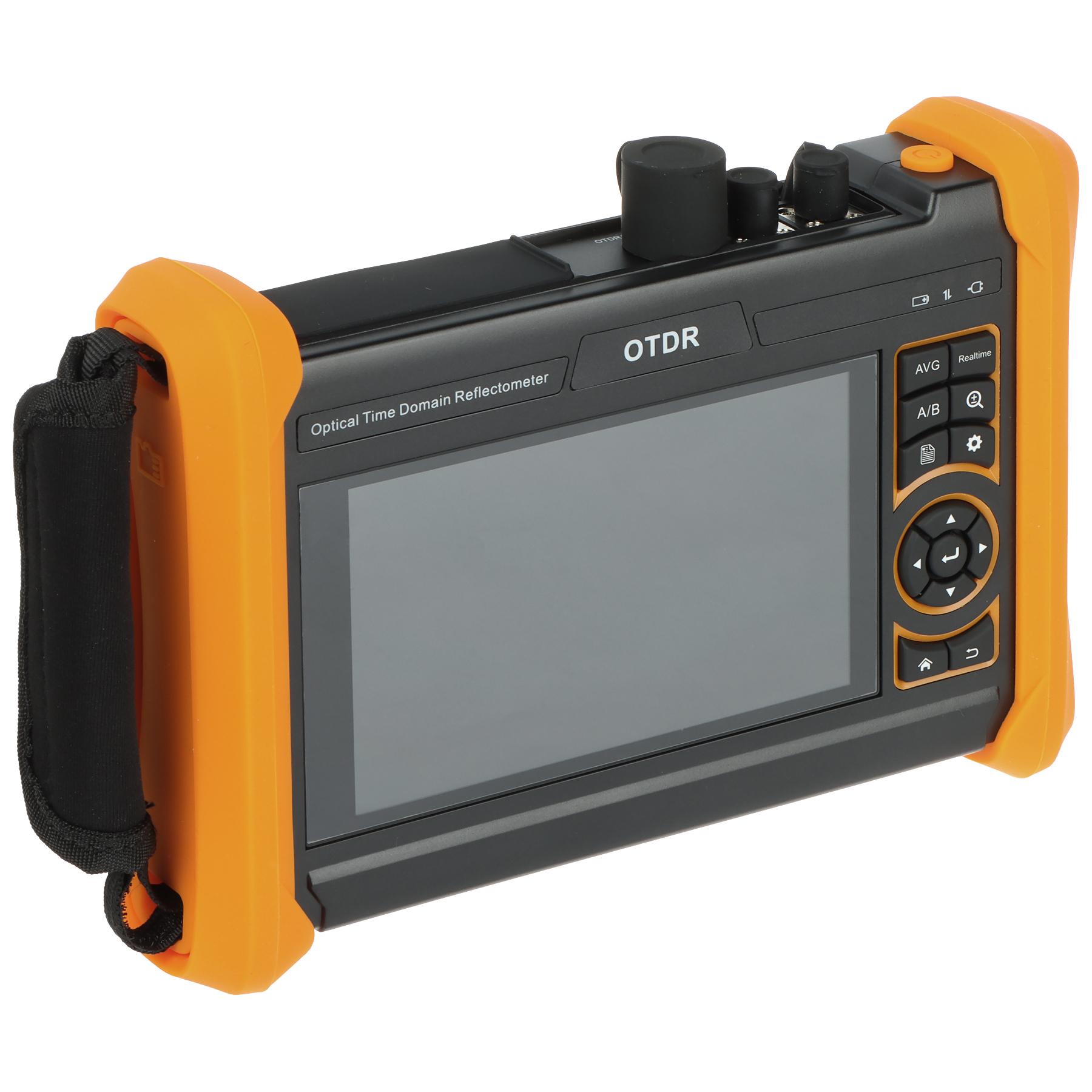

OPTICAL TIME-DOMAIN REFLECTOMETER (OTDR) CS-R6E-50H

€710.16

(Включая налог 21%)

Задать вопрос

КОД: CS-R6E-50H

Доступность: 9 шт.

Кол-во:

Минимальное количество для товара "OPTICAL TIME-DOMAIN REFLECTOMETER (OTDR) CS-R6E-50H" 1.

Купить в один клик

Описание
Особенности

Optical wavelength: OTDR @ 1310 nm, 1550 nm / 1610 nm OPM @ 850 nm / 1300 nm / 1310 nm / 1490 nm / 1550 nm / 1625 nm ; Connector type: SC-PC @ OTDR, 2.5mm universal connector @ OPM / VFL ; Optical power meter; VFL; OLS; Main features: LAN (twisted-pair) cables testing TDR reflectometer - Cable length measurement Identification the wire in the group of wires ; Power supply: Li-Ion battery 7.4 V / 5200 mAh, 12 V / 2 A (power adapter included) ;

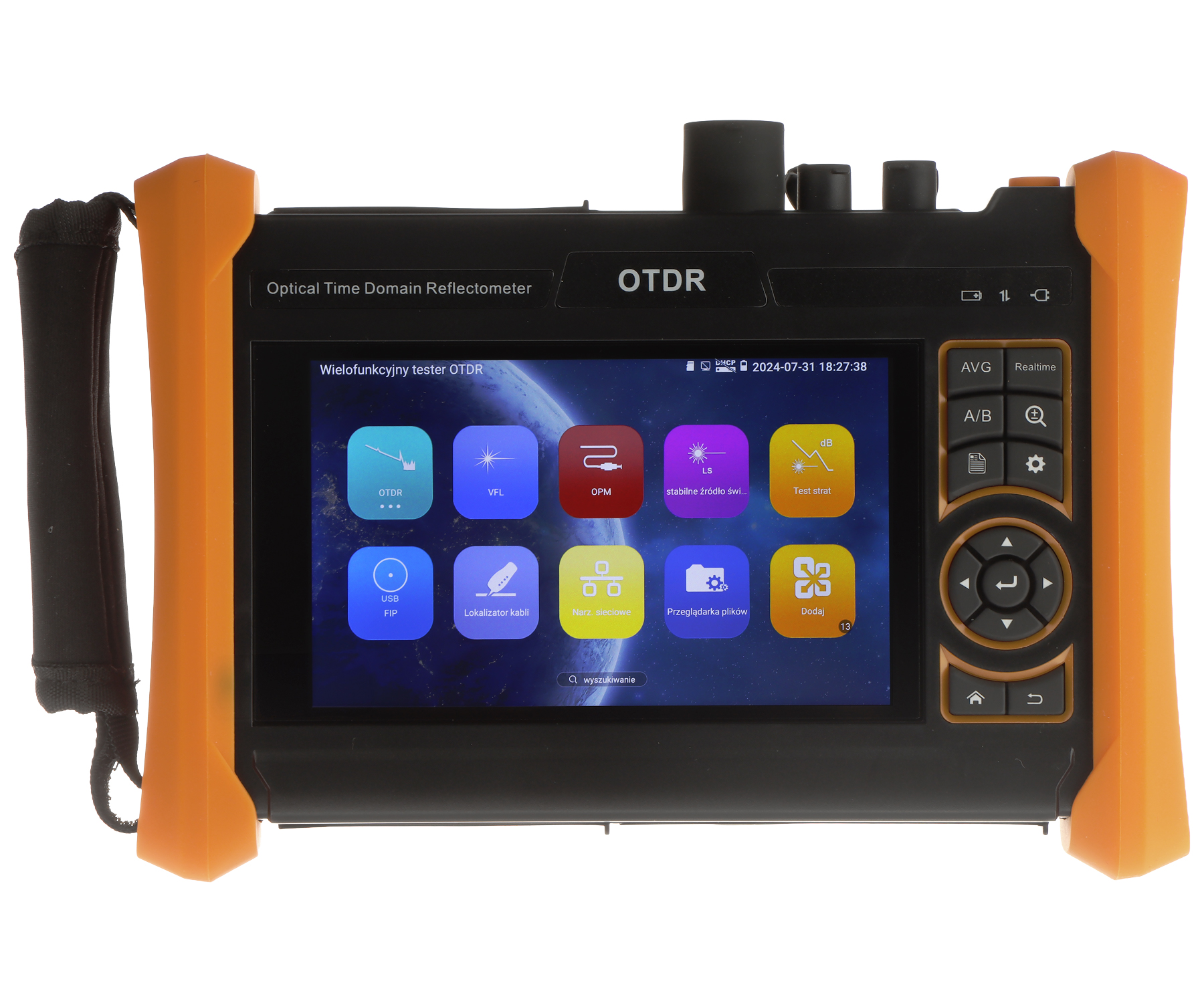

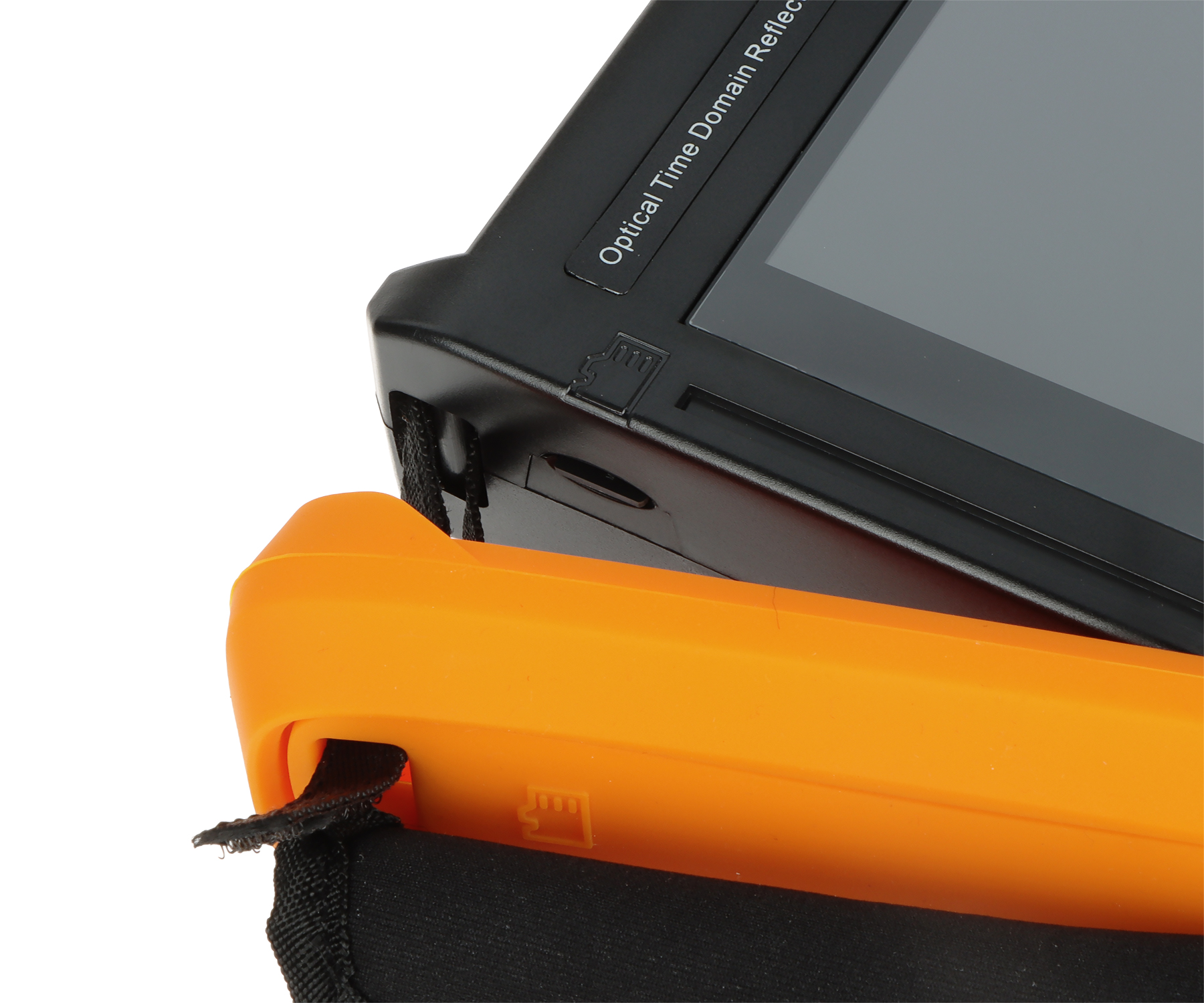

Display:	5.4 " - touch screen
Optical wavelength:	OTDR @ 1310 nm, 1550 nm / 1610 nm OPM @ 850 nm / 1300 nm / 1310 nm / 1490 nm / 1550 nm / 1625 nm OLS : 1310 nm / 1550 nm, 1610 nm VFL : 650 nm

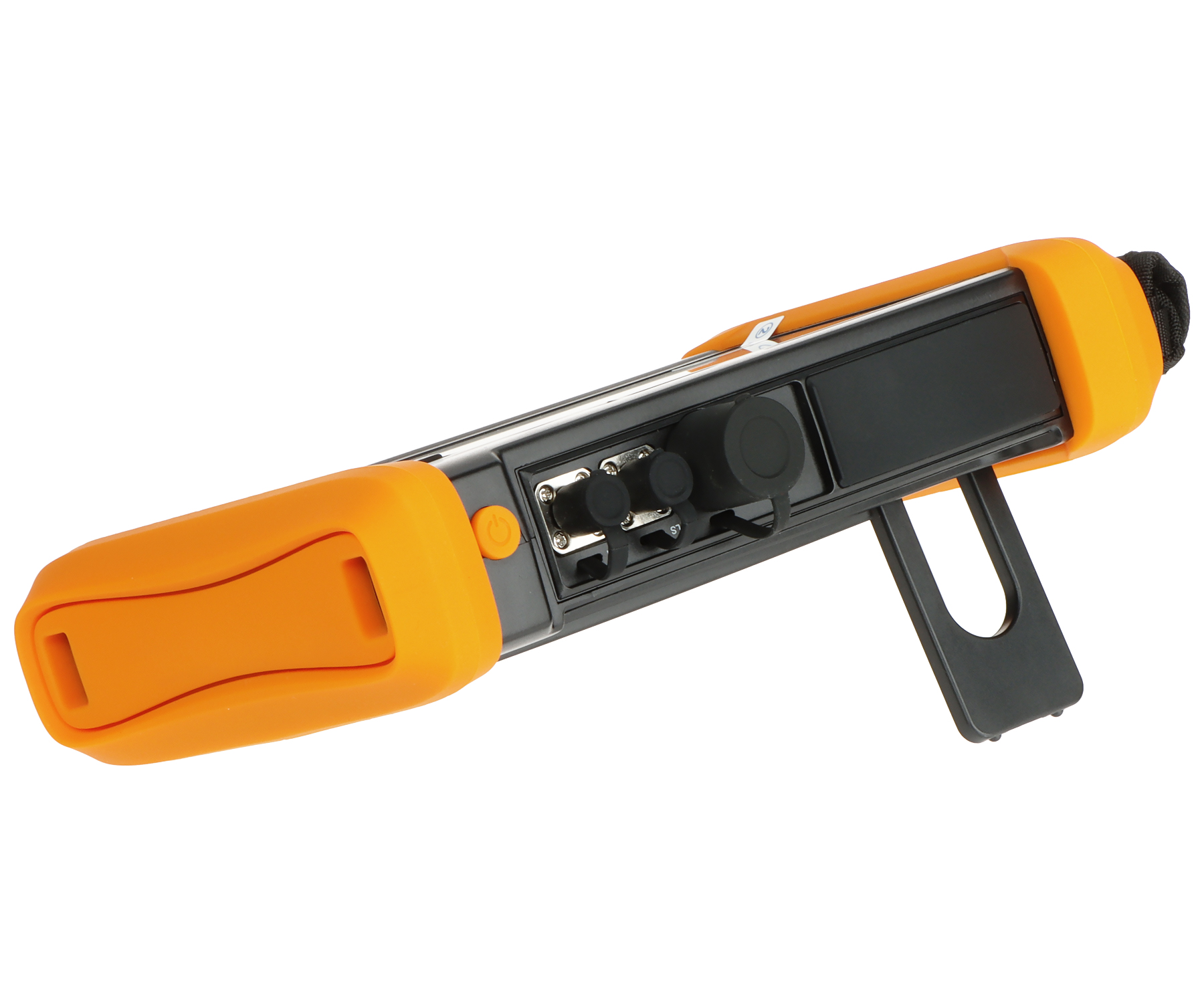

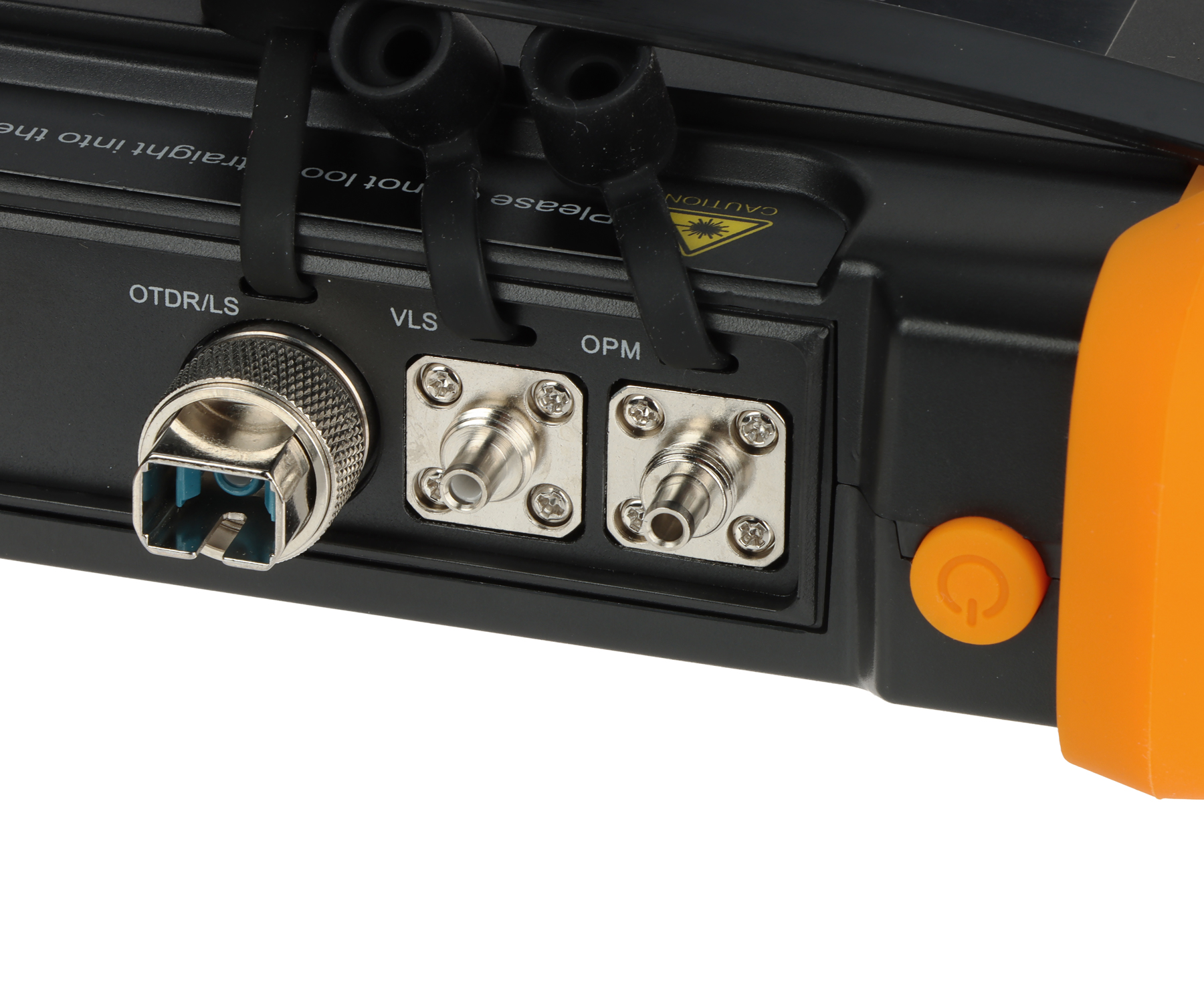

Connector type:	SC-PC @ OTDR, 2.5mm universal connector @ OPM / VFL
Optical power meter:
VFL:
OLS:

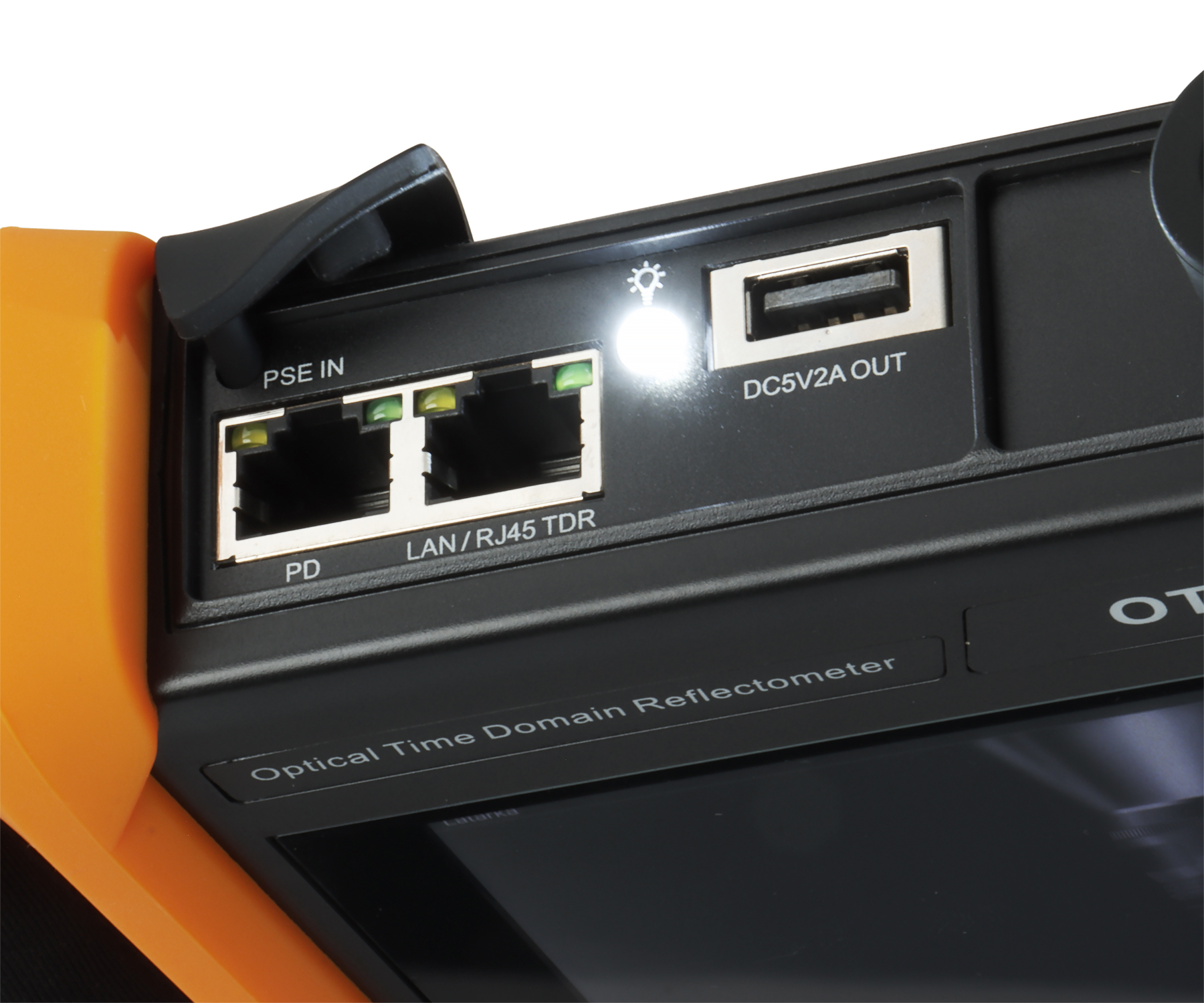

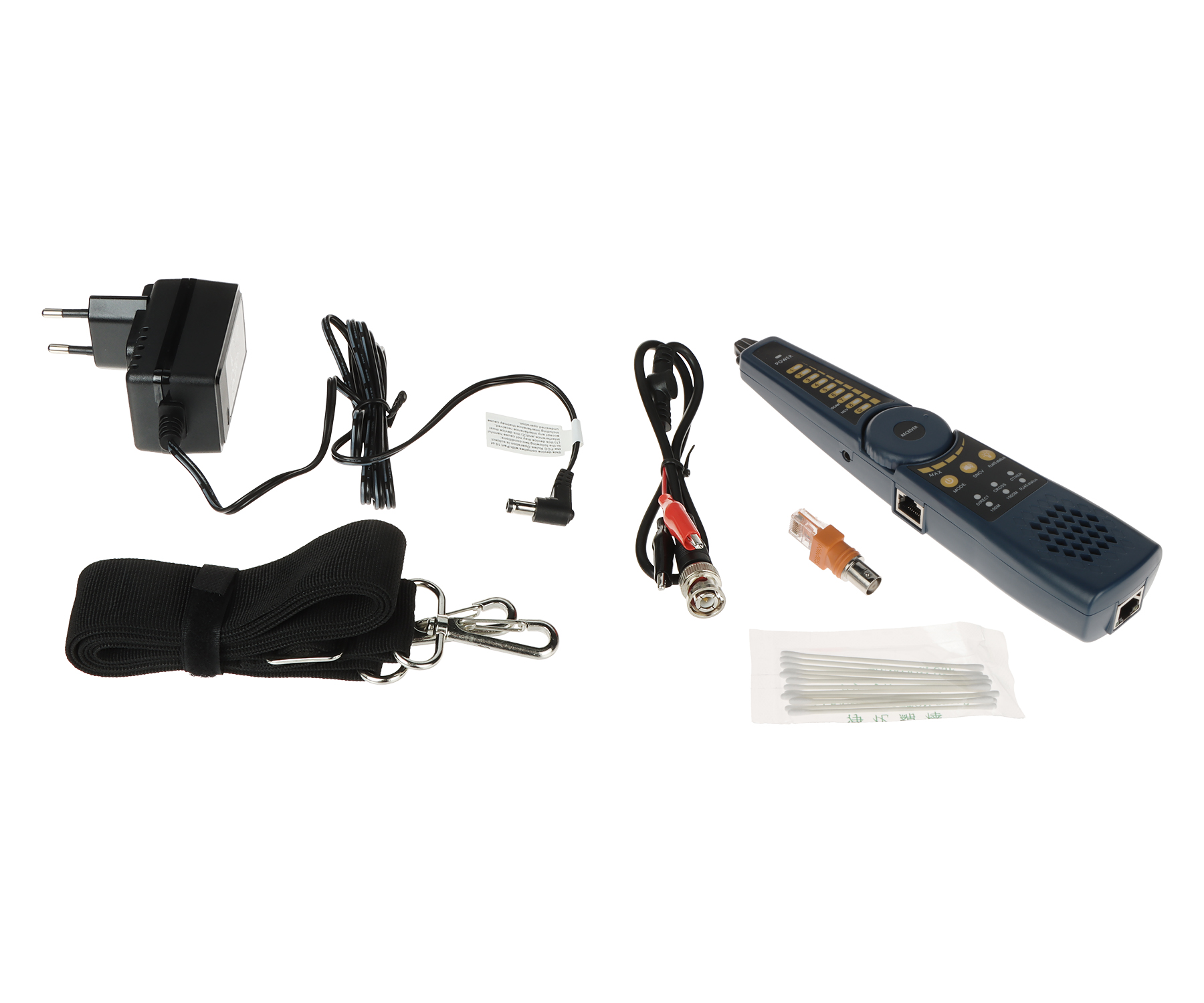

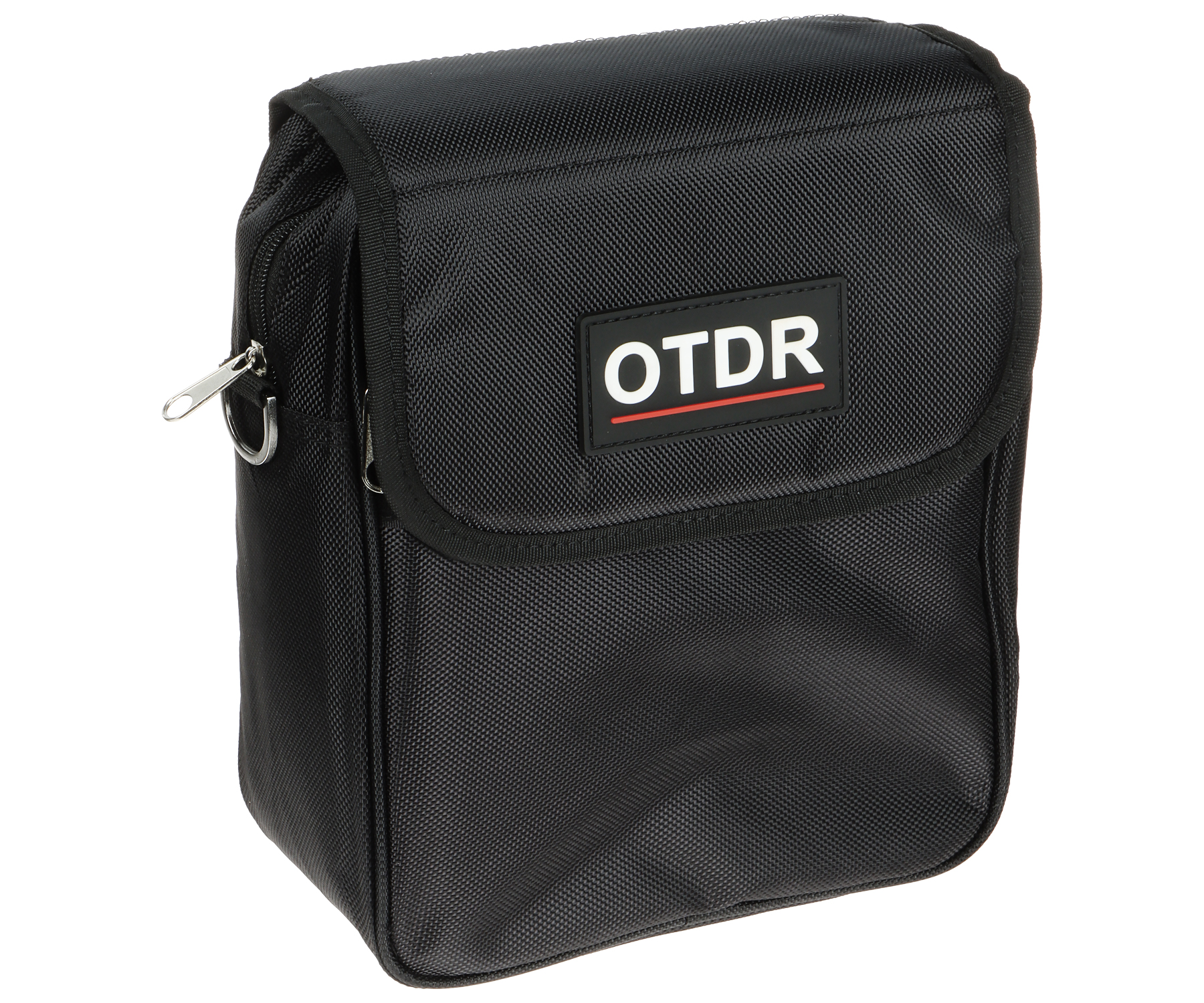

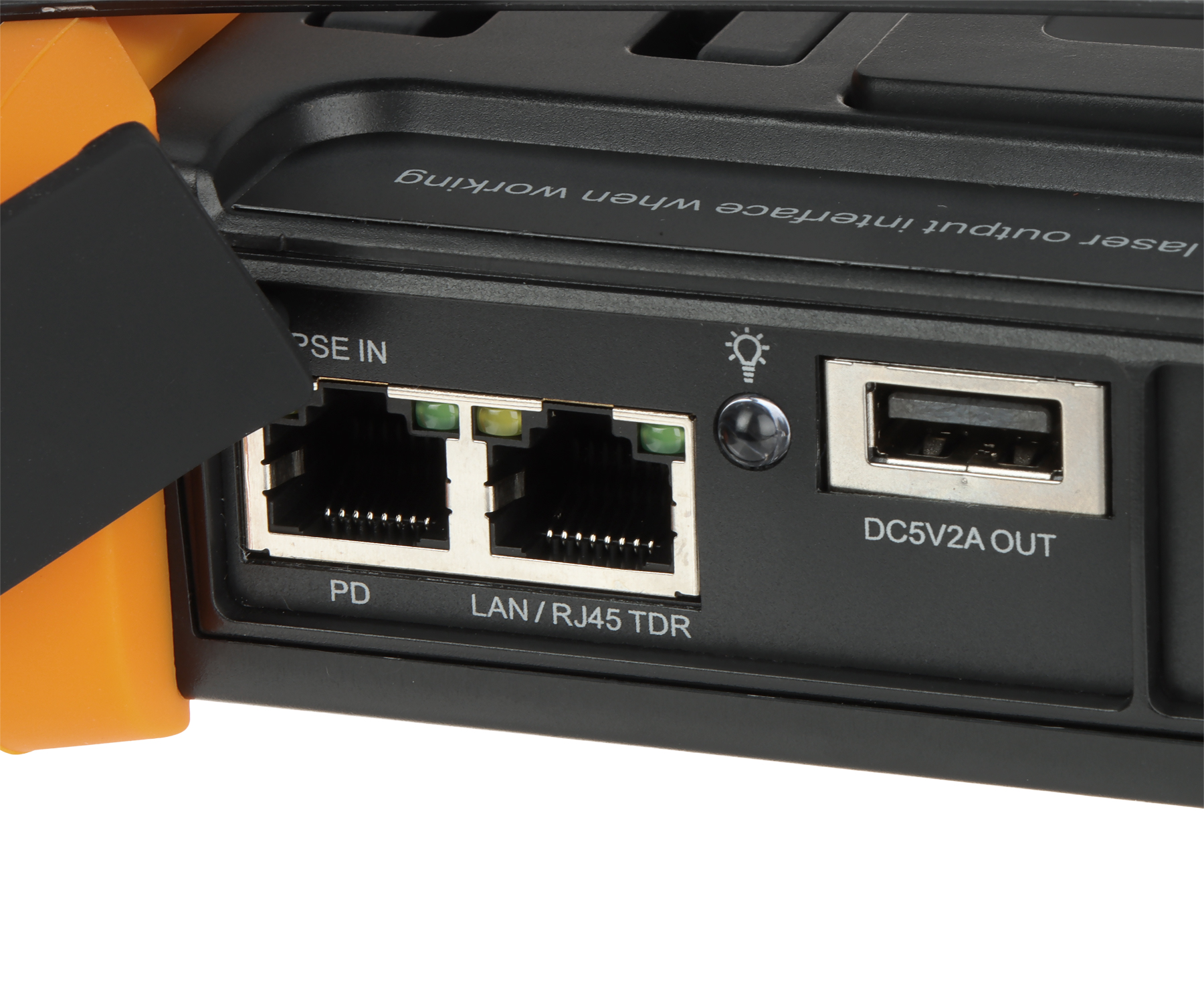

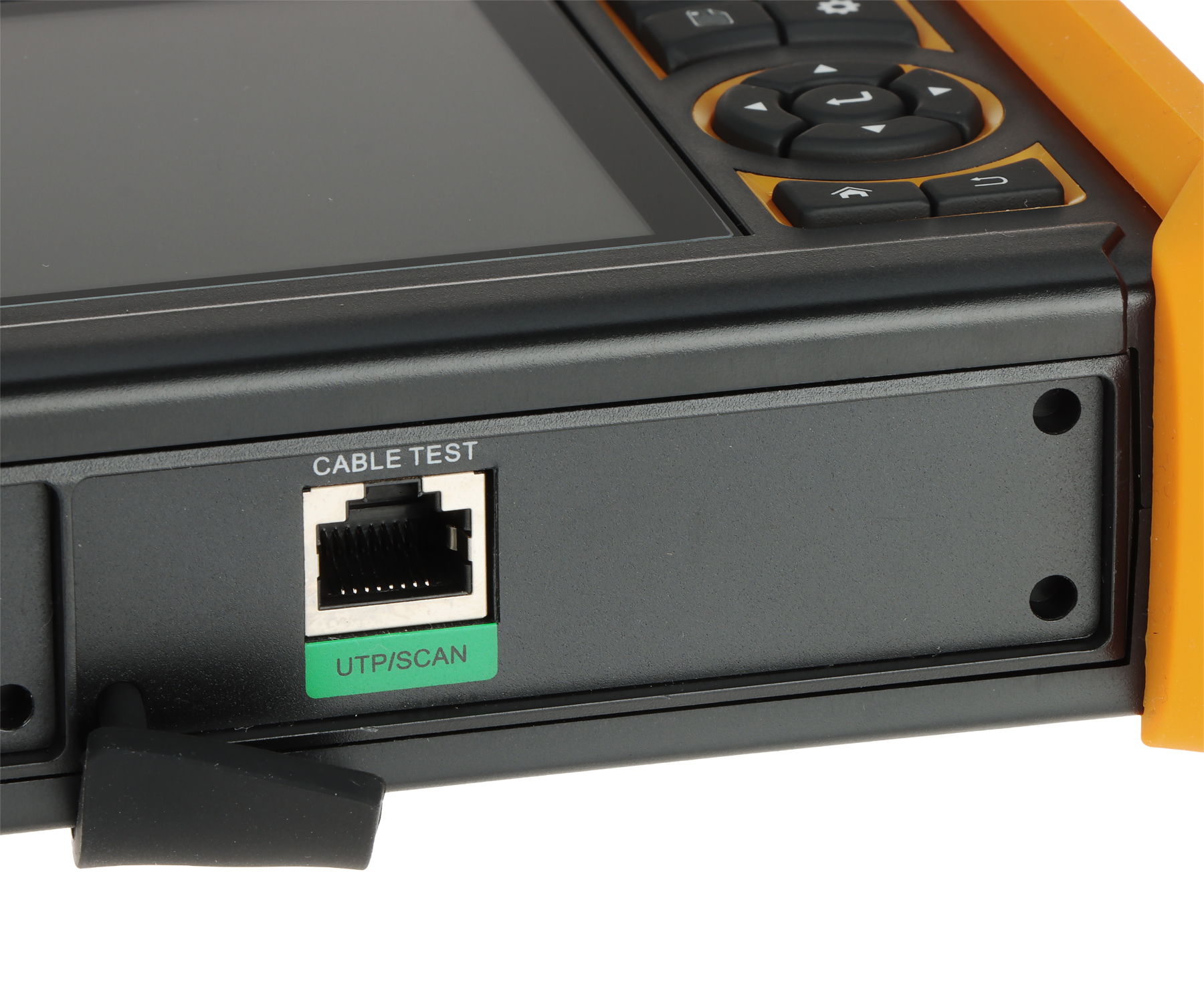

Main features:	Measurement range for OTDR meter : 1.6 m ... 150 km Dynamic range : 34 / 32 dB Built-in VFL laser fiber tester High measurement accuracy OPM function - optical power meter OLS function - light source 1310 / 1550 nm Generating reports in *.sor files Built-in LED flashlight LAN (twisted-pair) cables testing TDR reflectometer - Cable length measurement max. 600 m Identification the wire in the group of wires PoE power detection - check connection status, measure voltage, determine compliance with the standard Wi-Fi network analyzer Computer network testing - Route tracing, link monitor, DHCP server, port flashing, ping test Cable test and cable tracer The set includes a practical case

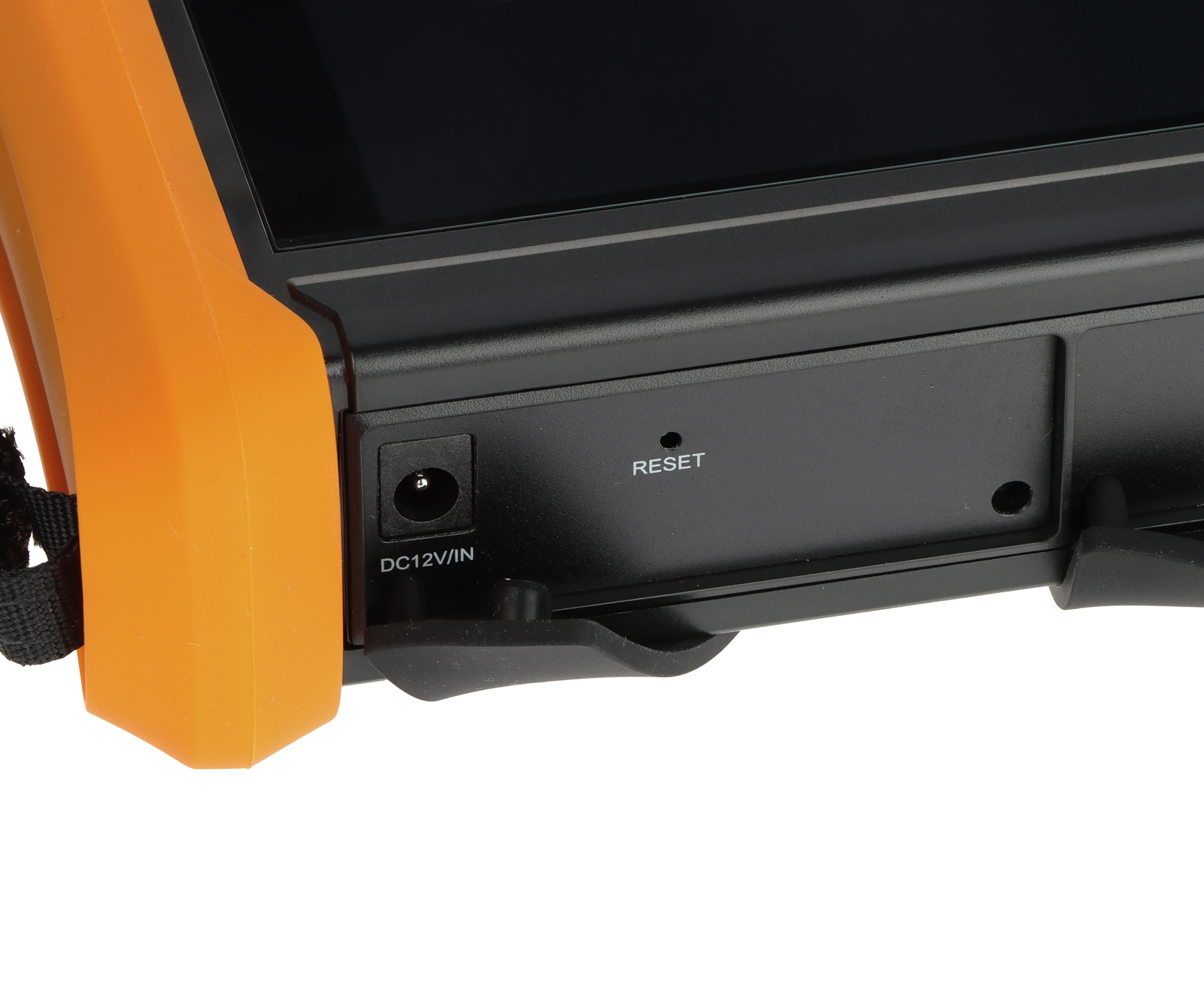

Power supply:	Li-Ion battery 7.4 V / 5200 mAh, 12 V / 2 A @ 5.5/2.1 socket (power adapter included)
Weight:	0.827 kg
Dimensions:	212 x 147 x 48 mm
Guarantee:	2 years
