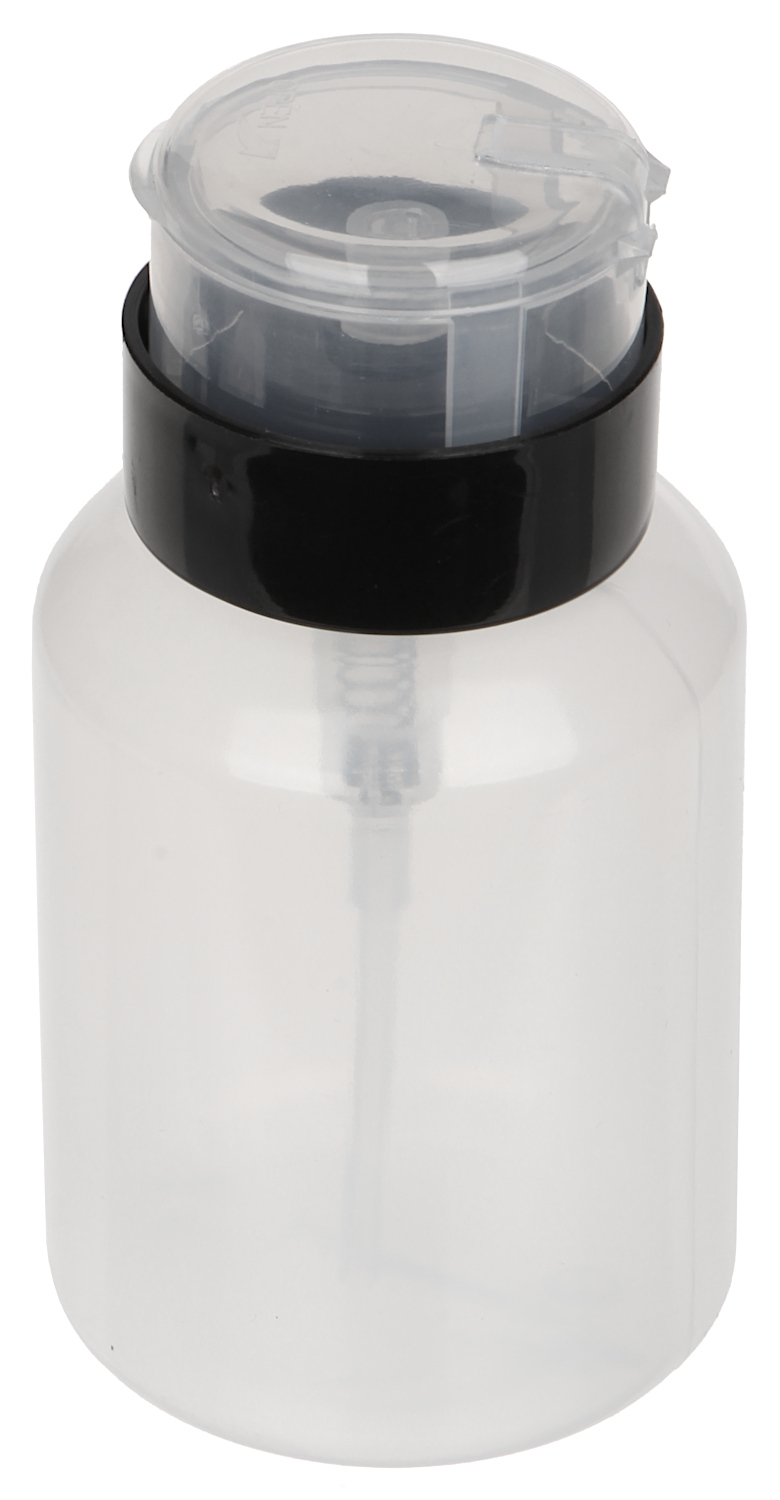

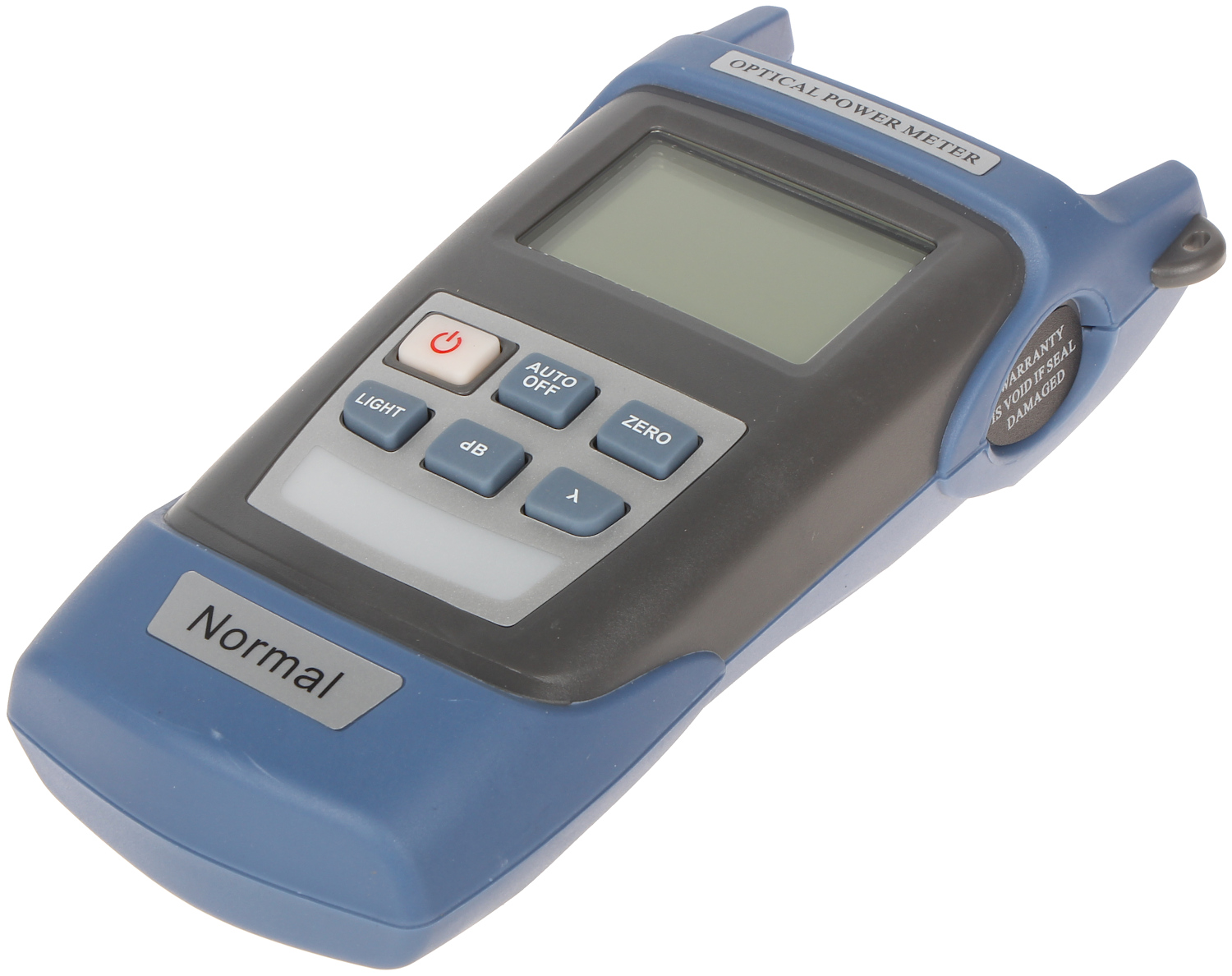

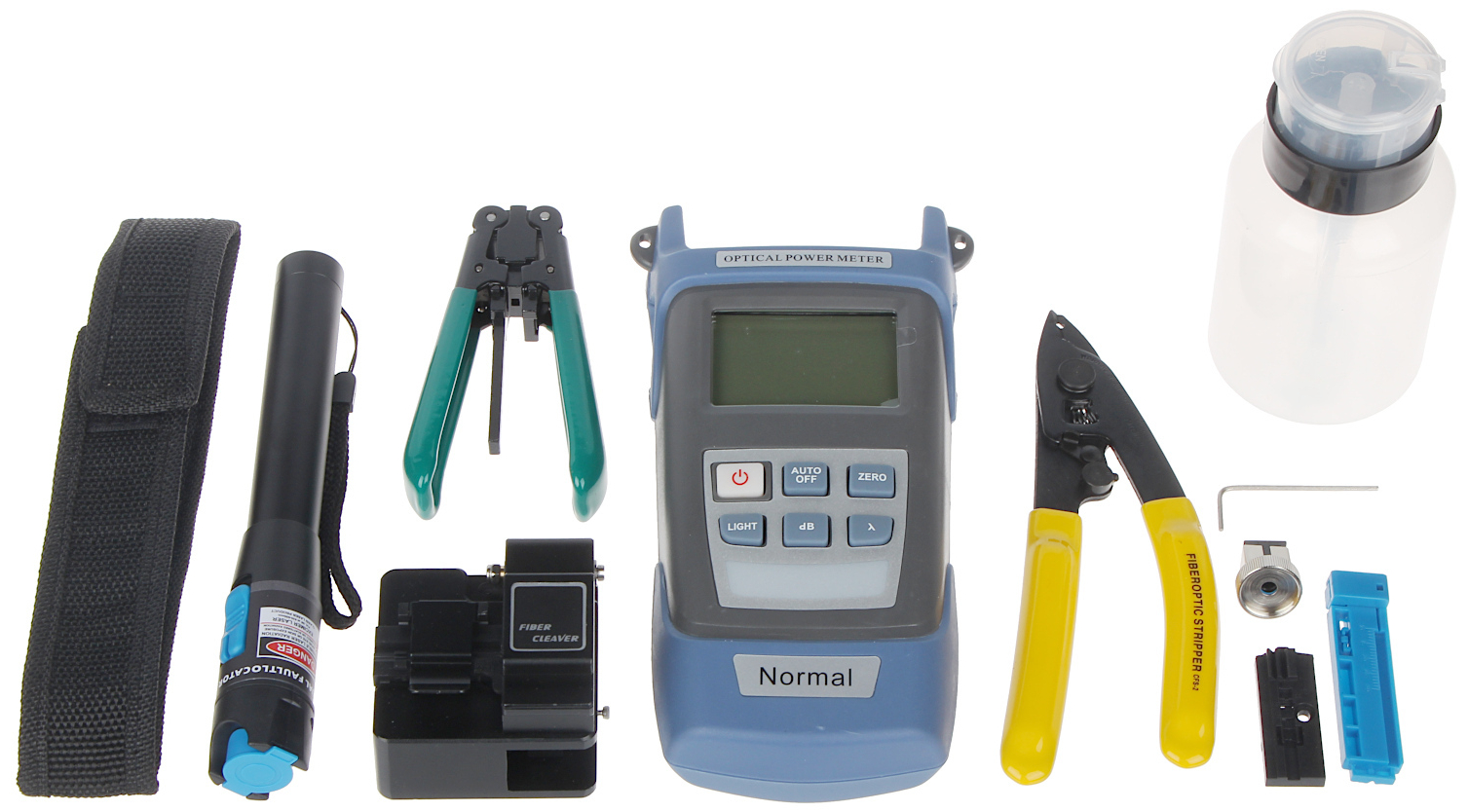

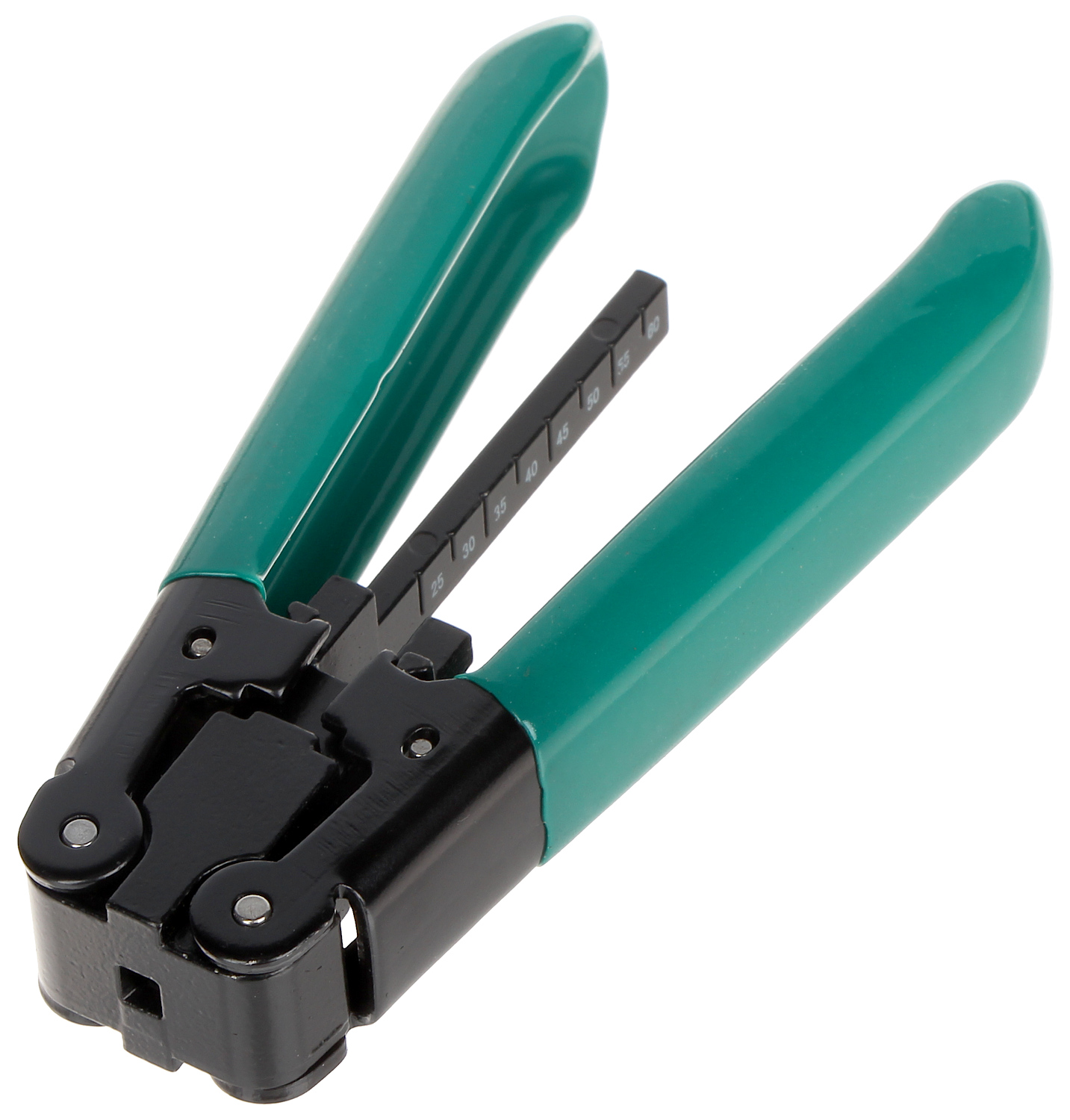

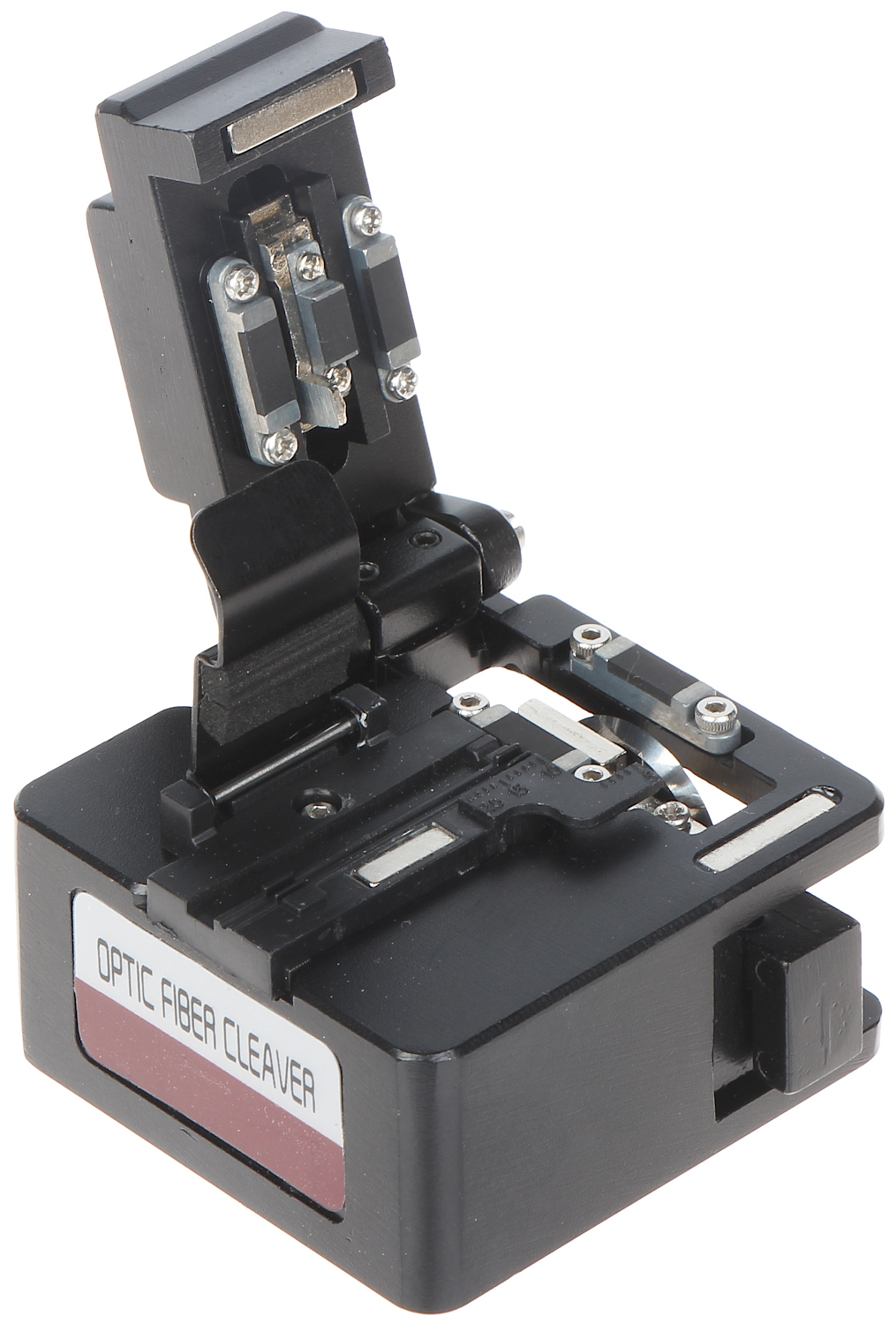

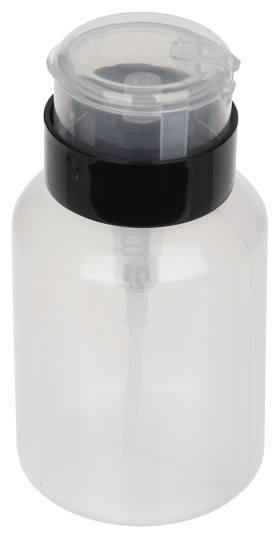

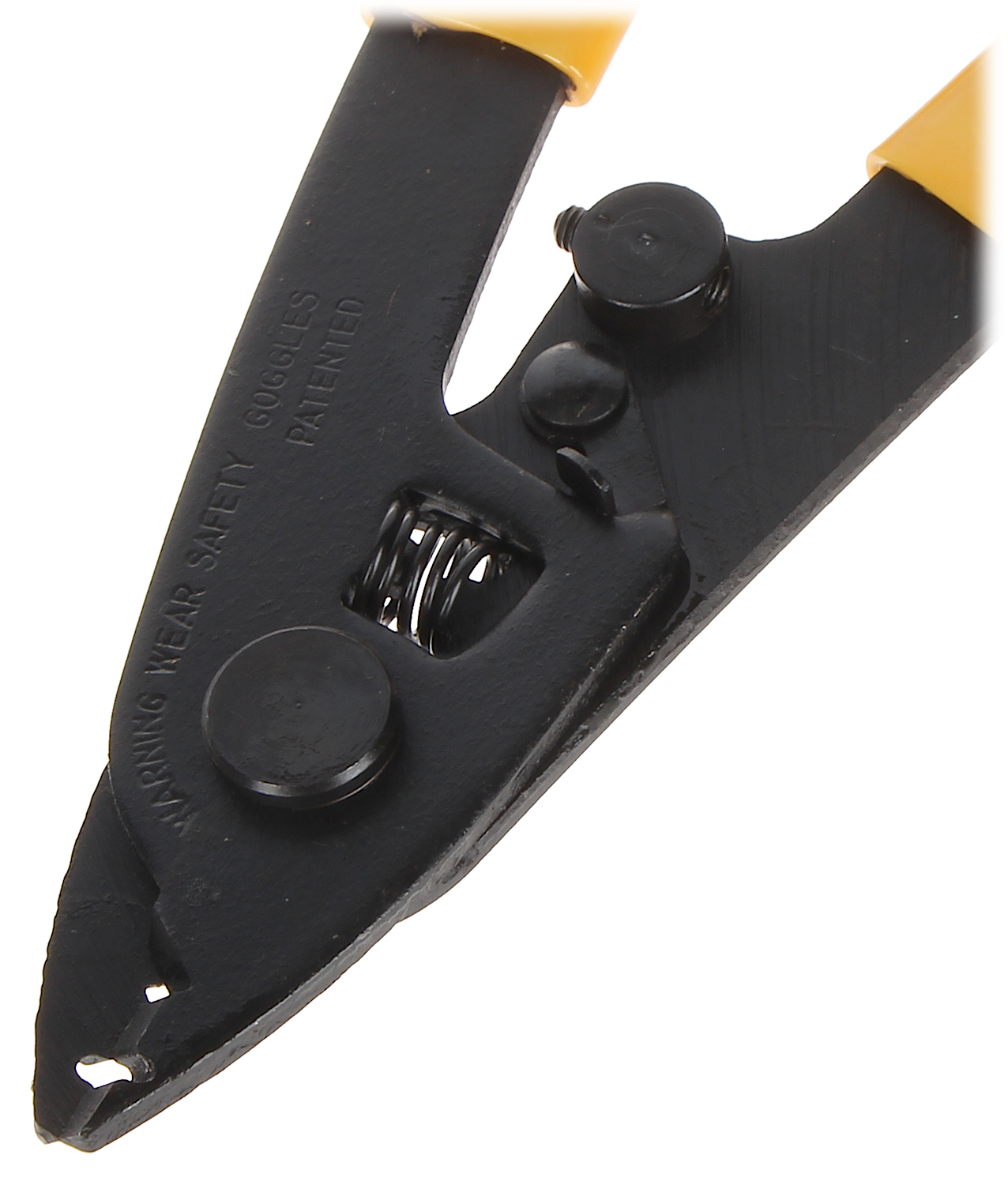

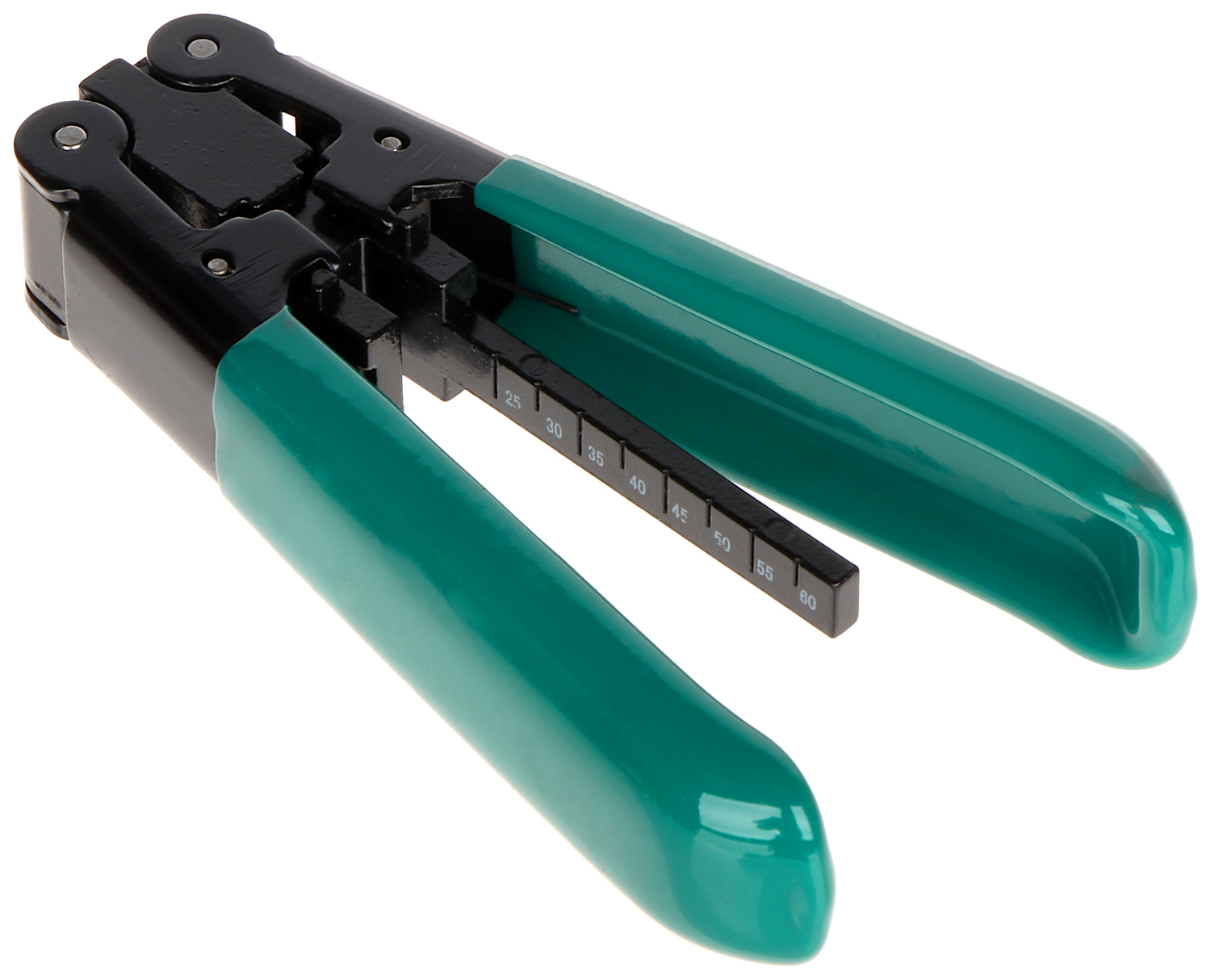

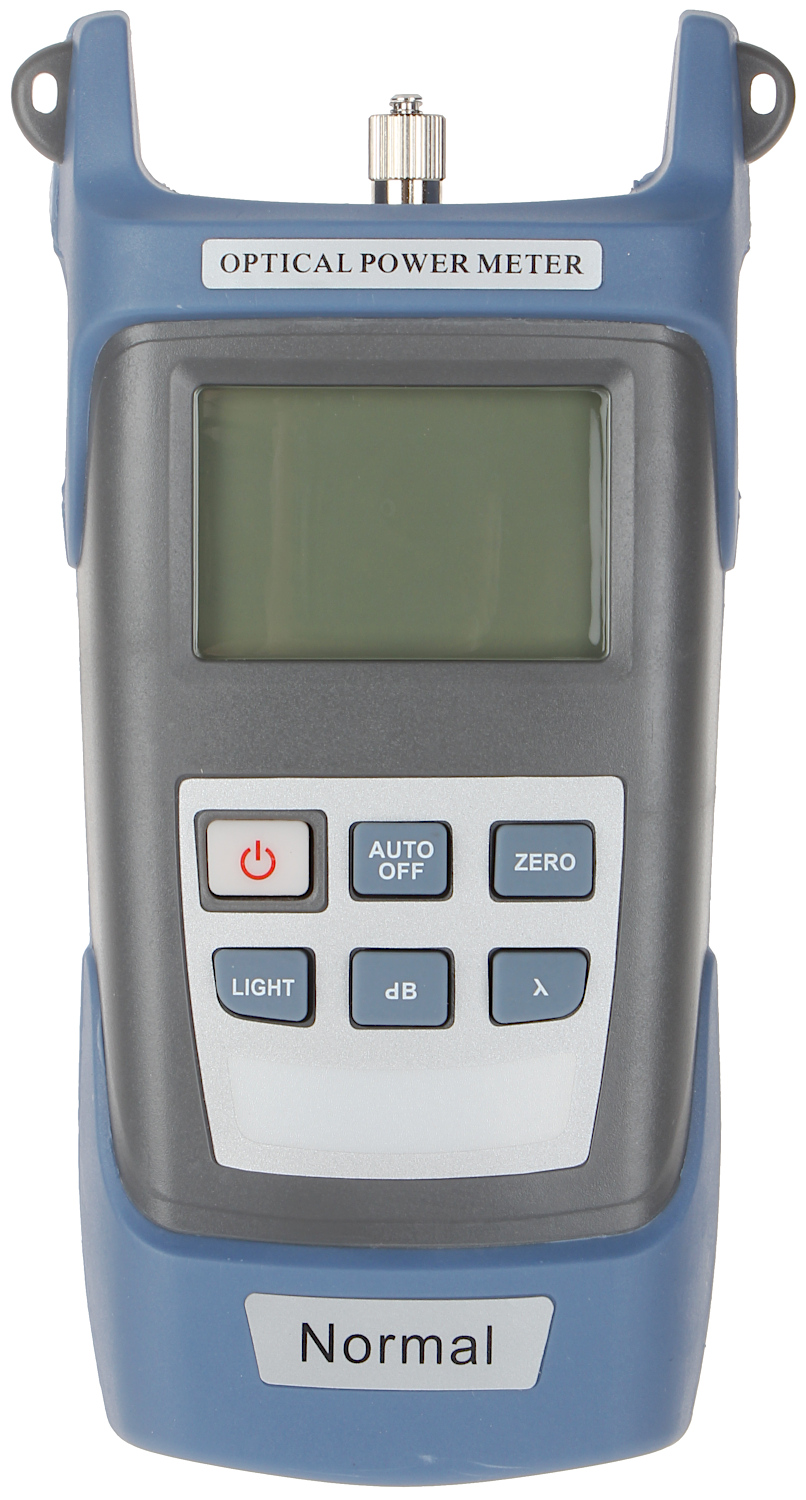

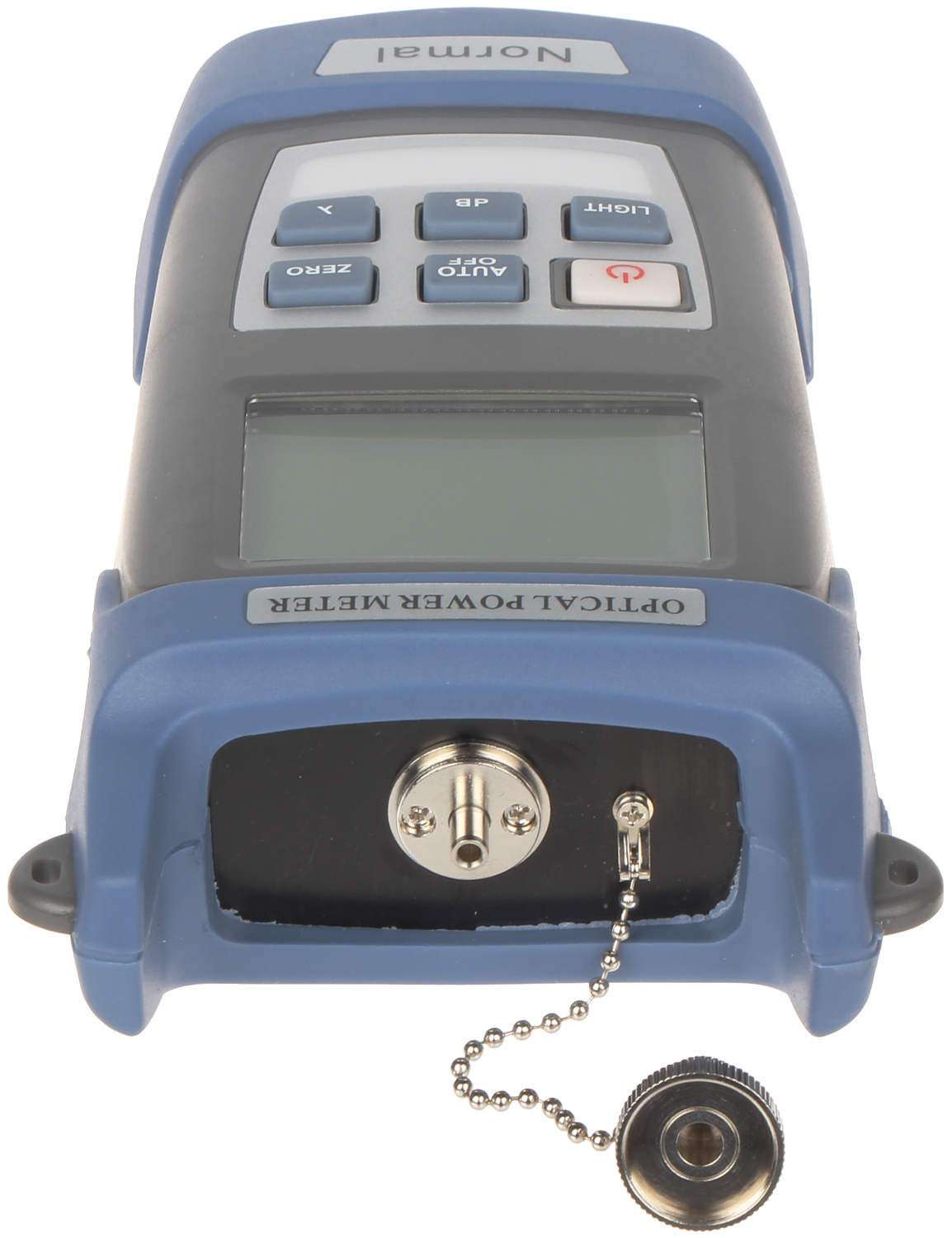

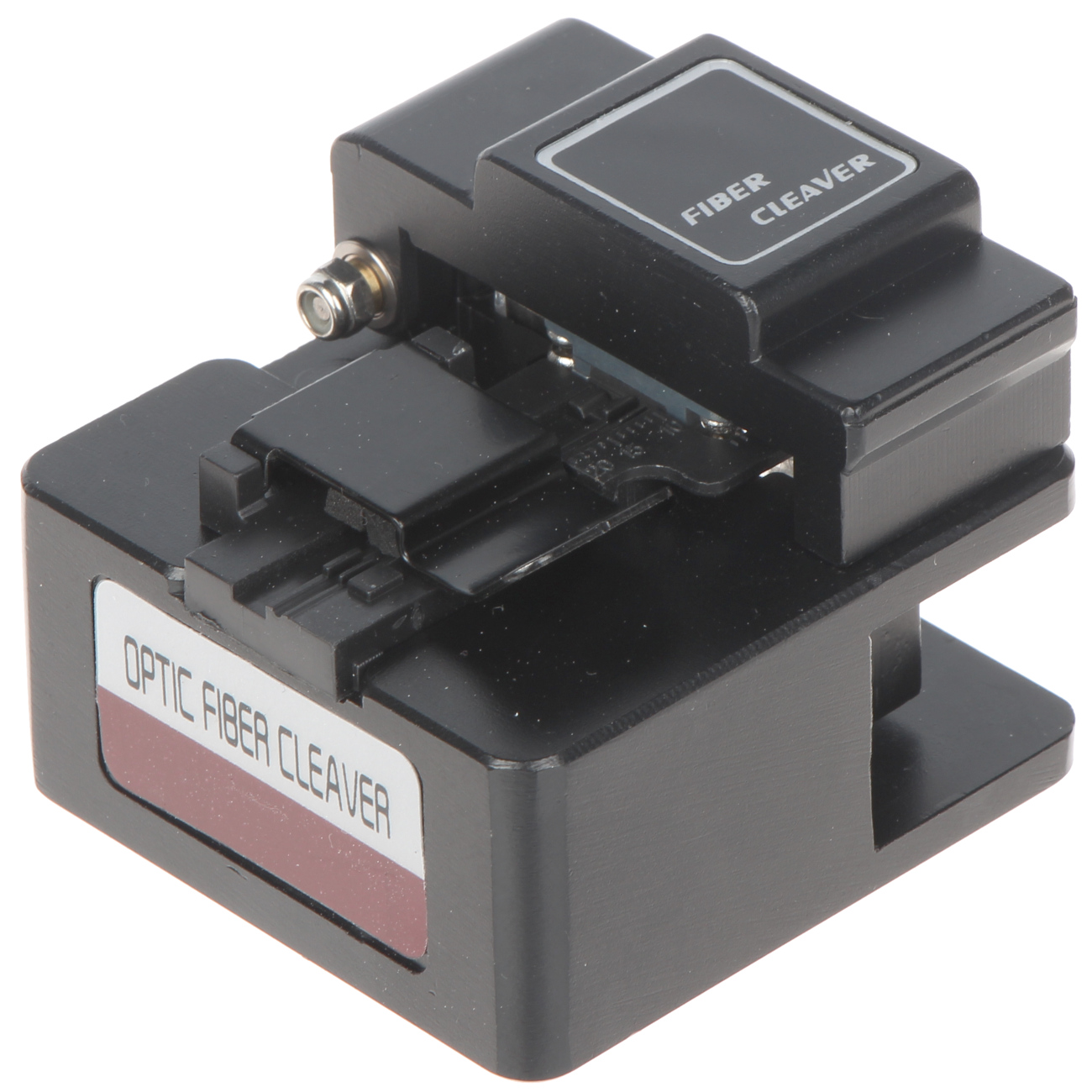

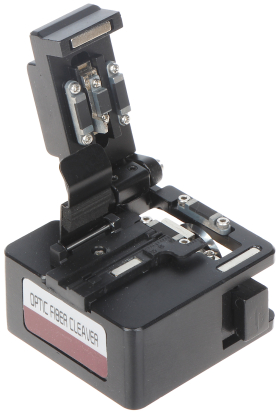

In the kit: Optical power meter, Container for isopropyl alcohol with a practical dispenser, Fiber optic cutter, Universal stripper for fibers, Stripper for flat fiber optic cables, Laser fiber tester, ; Main features: Possibility to prepare all commonly used types of fibers for the splicing ;
| Sensor type: | InGaAs |
| Optical wavelength: | 850 nm / 980 nm / 1300 nm / 1310 nm / 1490 nm / 1550 nm / 1625 nm / 1650 nm |
| Power measurement range: | 3 ... -70 dBm |
| Accuracy: | ± 5 % |
| Measuring accuracy: | 0.01 dBm |
| Connector type: | FC, SC, ST |
| Main features: | |
| Power supply: | 3 x 1.5 V - Battery type LR3 (AAA) (not included) |
| Dimensions: | 190 x 100 x 48 mm |

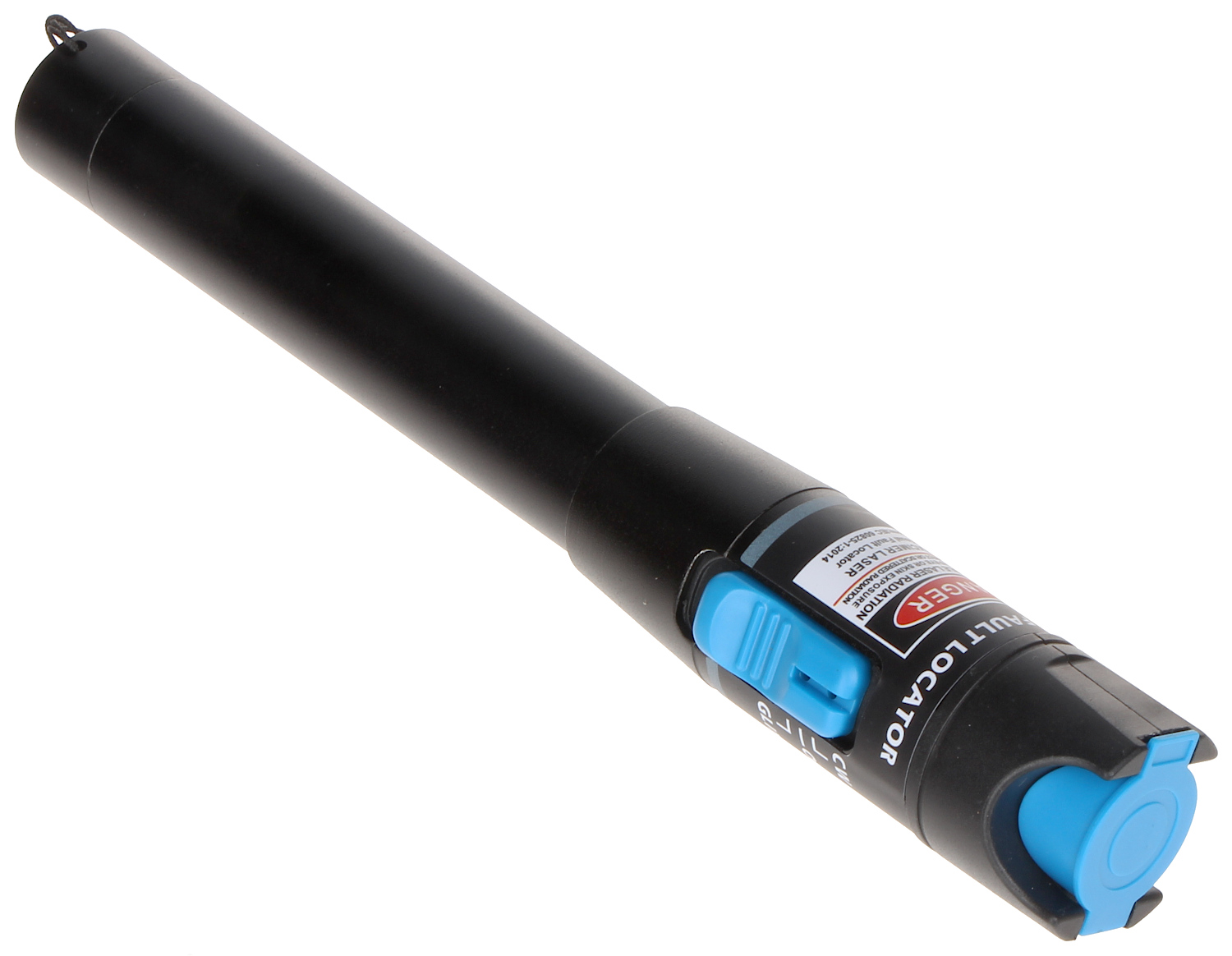

Laser fiber tester:
| Optical wavelength: | 650 nm |
| Optical output power: | 1 mW |
| Operation range: | max. 5 km |
| Operation modes: | |
| Application: | Visual localization of the fiber damage |
| Connector type: | 2.5mm universal connector |
| Material: | Aluminum - powder painted |
| Main features: | |
| Power supply: | 2 x 1.5 V - Battery type LR6 (AA) (not included) |
| Dimensions: | Ø 27 x 176 mm |
General information:
| In the kit: | |
| Main features: | |
| Weight: | 1.26 kg (total) |

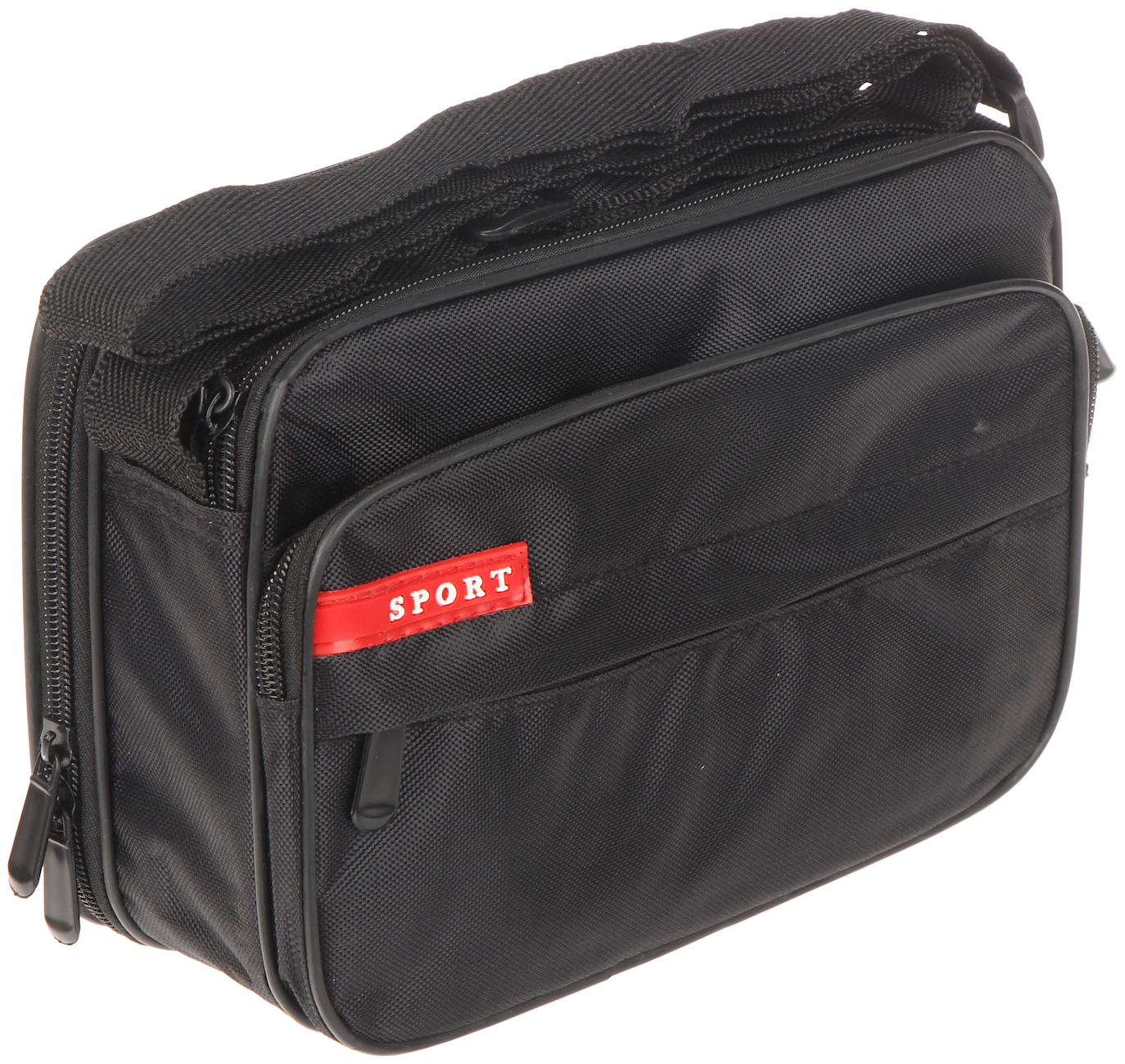

| Dimensions: | 240 x 160 x 100 mm (bag dimensions) |
| Guarantee: | 2 years |
