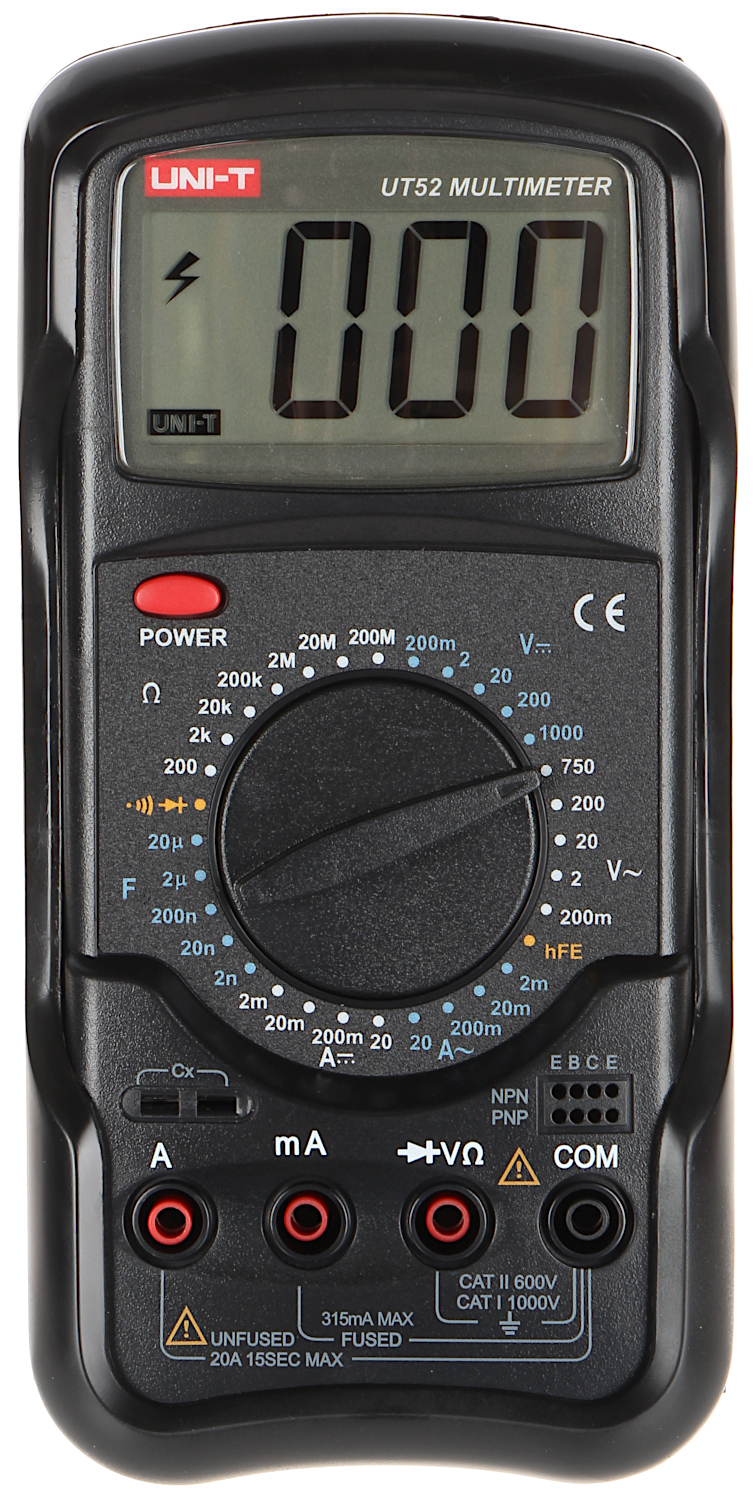

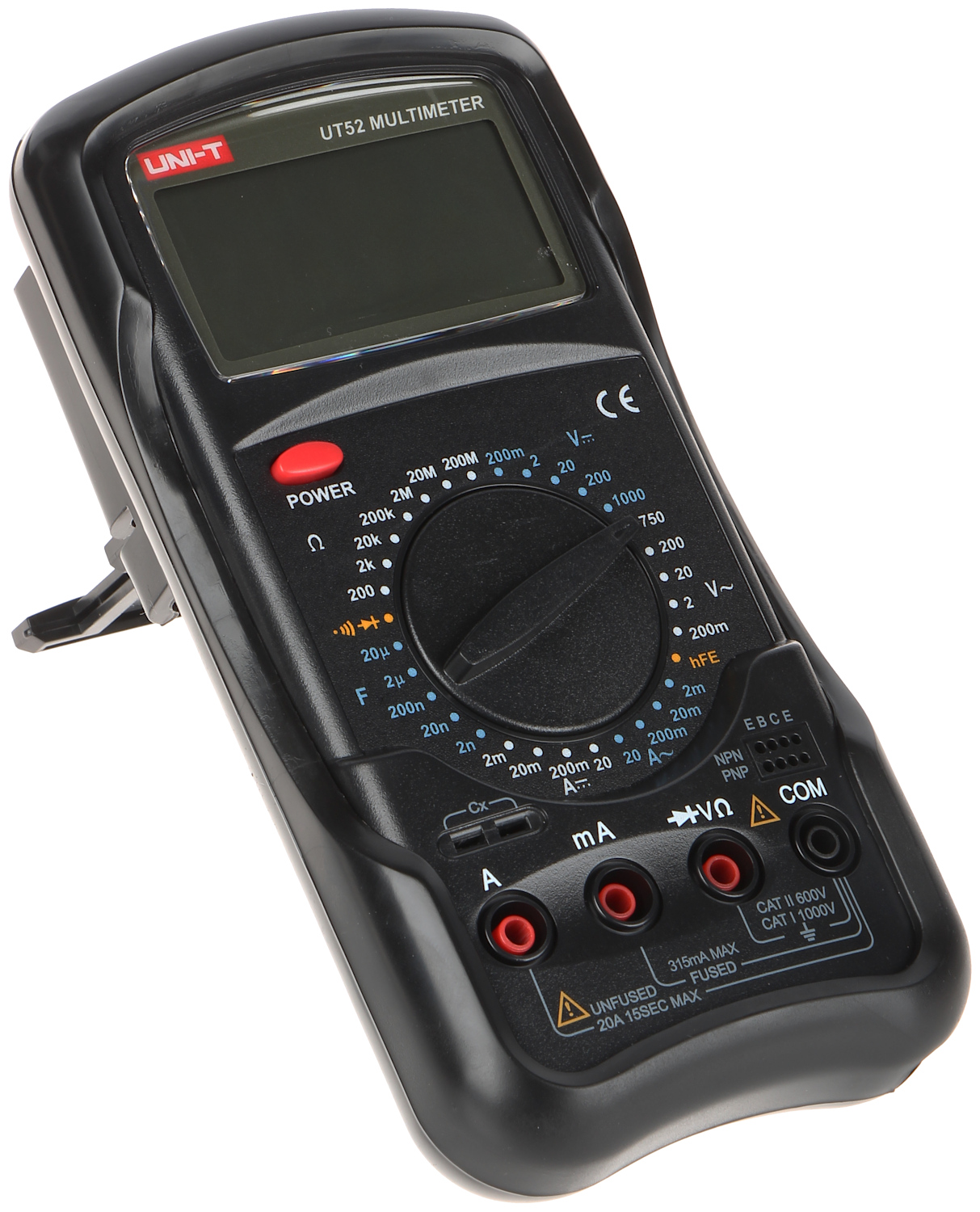

The UT-52 is a universal digital meter used to measure: voltage, current, resistance, capacitance, hFE, and checking the correct operation of diodes;
| DC voltage measurement: | 200 mV ± (0.5% + 1) @ 0.1 mV , 2 V ± (0.5% + 1) @ 0.001 V , 20 V ± (0.5% + 1) @ 0.01 V , 200 V ± (0.5% + 1) @ 0.1 V , 1000 V ± (0.8% + 2) @ 1 V |
| AC voltage measurement: | 200 mV ± (1.2% + 3) @ 0.1 mV , 2 V ± (0.8% + 3) @ 0.001 V , 20 V ± (0.8% + 3) @ 0.01 V , 200 V ± (0.8% + 3) @ 0.1 V , 750 V ± (1.2% + 3) @ 1 V |
| DC current measurement: | 2 mA ± (0.8% + 1) @ 0.001 mA , 20 mA ± (0.8% + 1) @ 0.01 mA , 200 mA ± (1.5% + 1) @ 0.1 mA , 20 A ± (2.0% + 5) @ 0.01 A |
| AC current measurement: | 2 mA ± (1.0% + 3) @ 0.001 mA , 20 mA ± (1.0% + 3) @ 0.01 mA , 200 mA ± (1.8% + 3) @ 0.1 mA , 20 A ± (3.0% + 7) @ 0.01 A |
| Resistance measurement: | 200 Ω ± (0.8% + 3) @ 0.1 Ω , 2 kΩ ± (0.8% + 1) @ 0.001 kΩ , 20 kΩ ± (0.8% + 1) @ 0.01 kΩ , 200 kΩ ± (0.8% + 1) @ 0.1 kΩ , 2 MΩ ± (0.8% + 1) @ 0.001 MΩ 20 MΩ ± (1.0% + 2) @ 0.01 MΩ , 200 MΩ ± (5%(RD-10) + 10) @ 0.1 MΩ * *RD - reading value |
| Capacitance measurement: | 2 nF ± (4% + 3) @ 0.001 nF , 20 nF ± (4% + 3) @ 0.01 nF , 200 nF ± (4% + 3) @ 0.1 nF , 2 µF ± (4% + 3) @ 0.001 µF , 20 µF ± (4% + 3) @ 0.01 µF |
| Inductance measurement: |  |
| Frequency measurement: | |
| Temperature measurement: | |
| Automatic change of measuring ranges: | |
| hFE: |  |
| Diode test: | |
| Sound signal of the continuity test: | |
| Checking TTL logic states: | |
| RS-232: | |
| Main features: | |

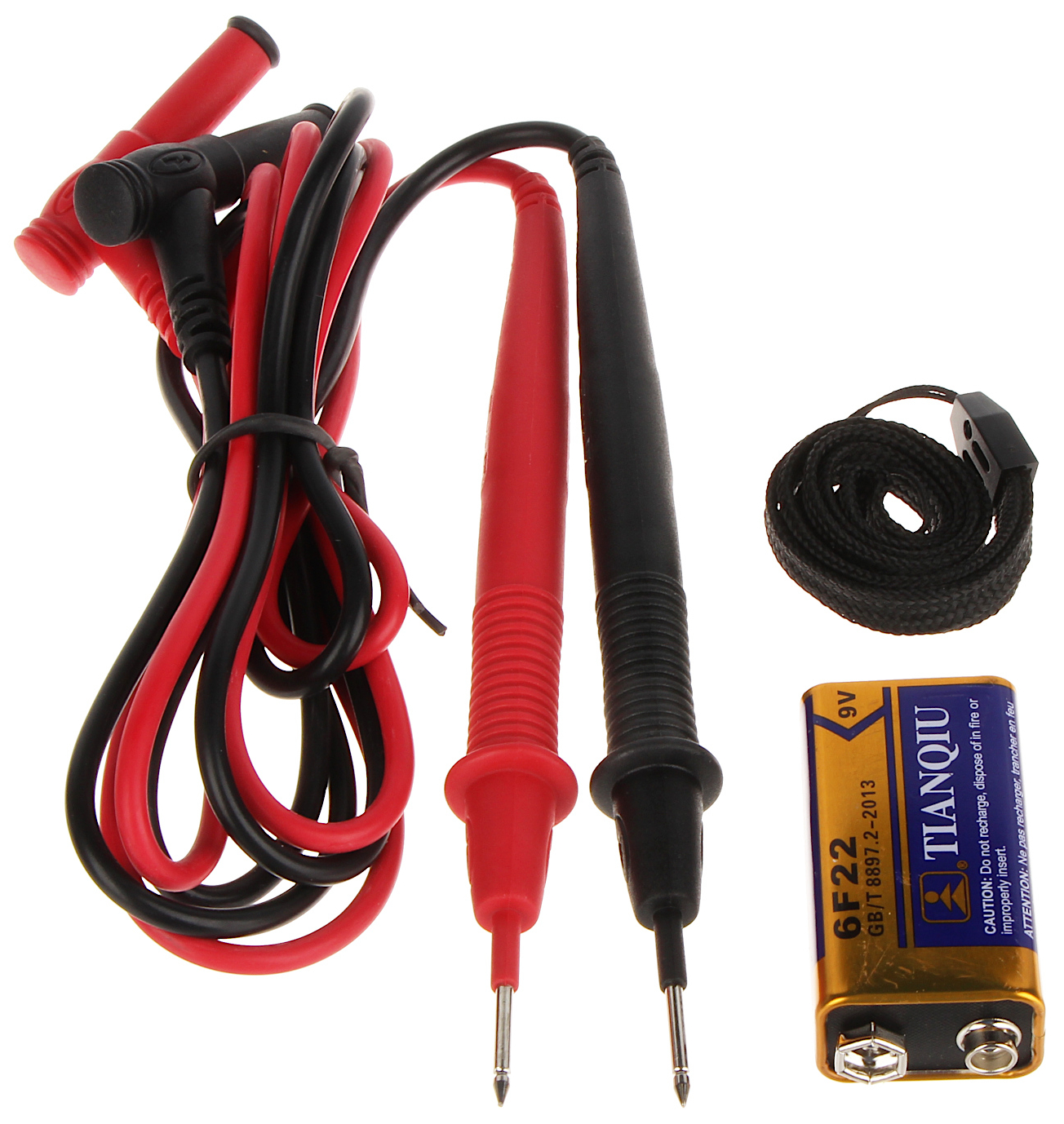

| Power supply: | 9V, type 6F22 battery - included |
| Weight: | 0.5 kg |
| Dimensions: | 203 x 98 x 56 mm |
| Manufacturer / Brand: | UNI-T |
| Guarantee: | 2 years |
Brand:
UNI-T
